Шаньдун Weifang стальная конструкция Tailai инженерный сборный дом мастерская склад здание
Шаньдун Weifang стальная конструкция Tailai инженерный сборный дом мастерская склад здание
Шаньдун Weifang стальная конструкция Tailai инженерный сборный дом мастерская склад здание
Шаньдун Weifang стальная конструкция Tailai инженерный сборный дом мастерская склад здание
Шаньдун Weifang стальная конструкция Tailai инженерный сборный дом мастерская склад здание
Шаньдун Weifang стальная конструкция Tailai инженерный сборный дом мастерская склад здание

Шаньдун Weifang стальная конструкция Tailai инженерный сборный дом мастерская склад здание


Поделиться:

Цена:30,00 $ - 35,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики





ITEM
MEMBER NAME
SPECIFICATION

Main Steel Frame
Column
Q235, Q355 Welded /Hot Rolled H Section Steel
Beam
Q235, Q355 Welded /Hot Rolled H Section Steel



Secondary Frame
Purlin
Q235CorZType Purlin
Knee Brace
Q235 Angle Steel
Tie Bar
Q235 Circular Steel Pipe
Strutting Piece
Q235 Round Bar
Vertical & Horizontal Bracing
Q235 Angle Steel or Round Bar



Cladding System
Roof Panel
EPS / Rock Wool / Fiber Glass/PU Sandwich Panel Or Steel Sheet
Wall Panel
Sandwich Panel or Corrugated Steel Sheet Panel
Window
Aluminiumn Alloy Window
Door
Sliding Sandwich Panel Door / Rolling Shutter Door
Skylight
FRP

Accessones
Rainspout
PVC
Gutter
Made Steel Sheet / Stainless Steel

Connection
Anchor Bolt
Q235,M24/M45 etc
High Strength Bolt
M12/16/20,10.9S
Normal Bolt
M12/16/20,4.8S
Wind Resistance
12 Grades
Earthquake-Resistance
9 Grades
Surface Treatment
Alkyd Paint.EpoxyZinc Rich Paint or Galvanized


Main Features
1) Enviromental Friendly
2) Lower cost and maintenance
3) Long using time up to 50 years
4) Stable and earthquake resistance up to 9 grade
5) Fast construction, time saving and labor saving
6) Good appearance

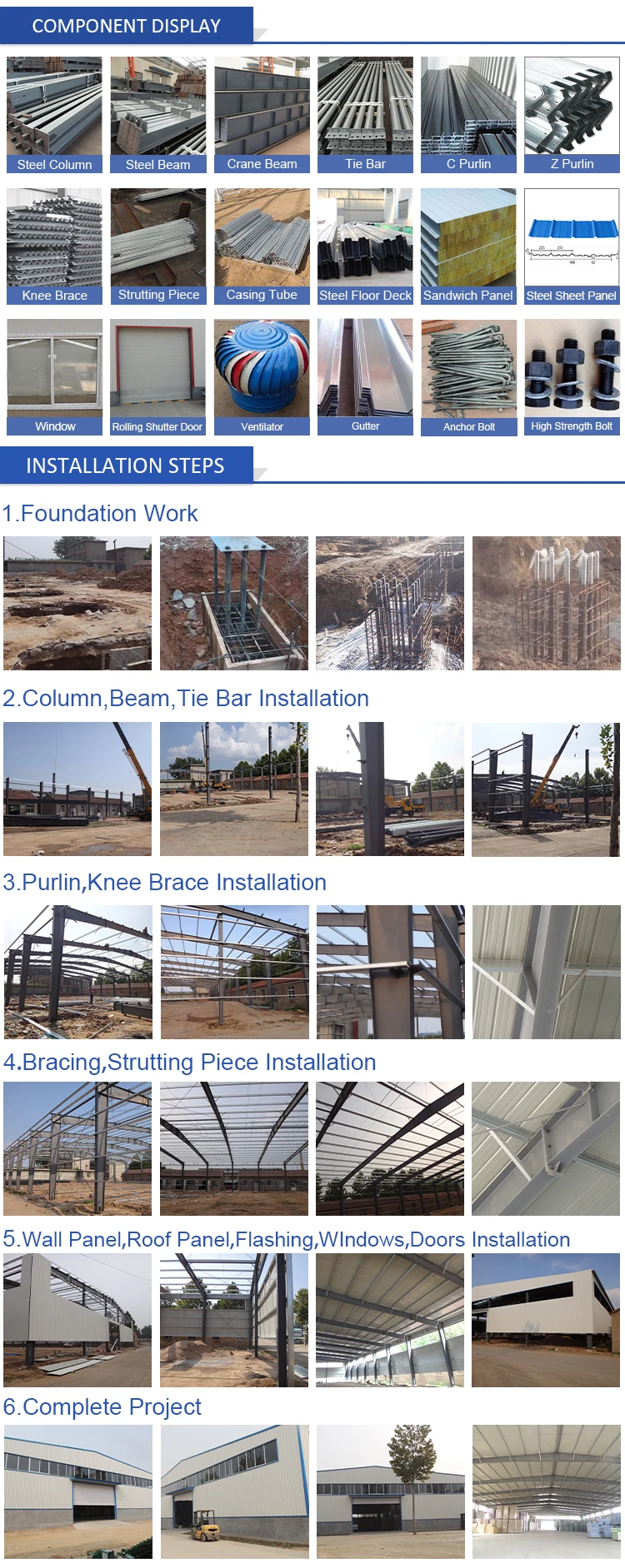

Component display

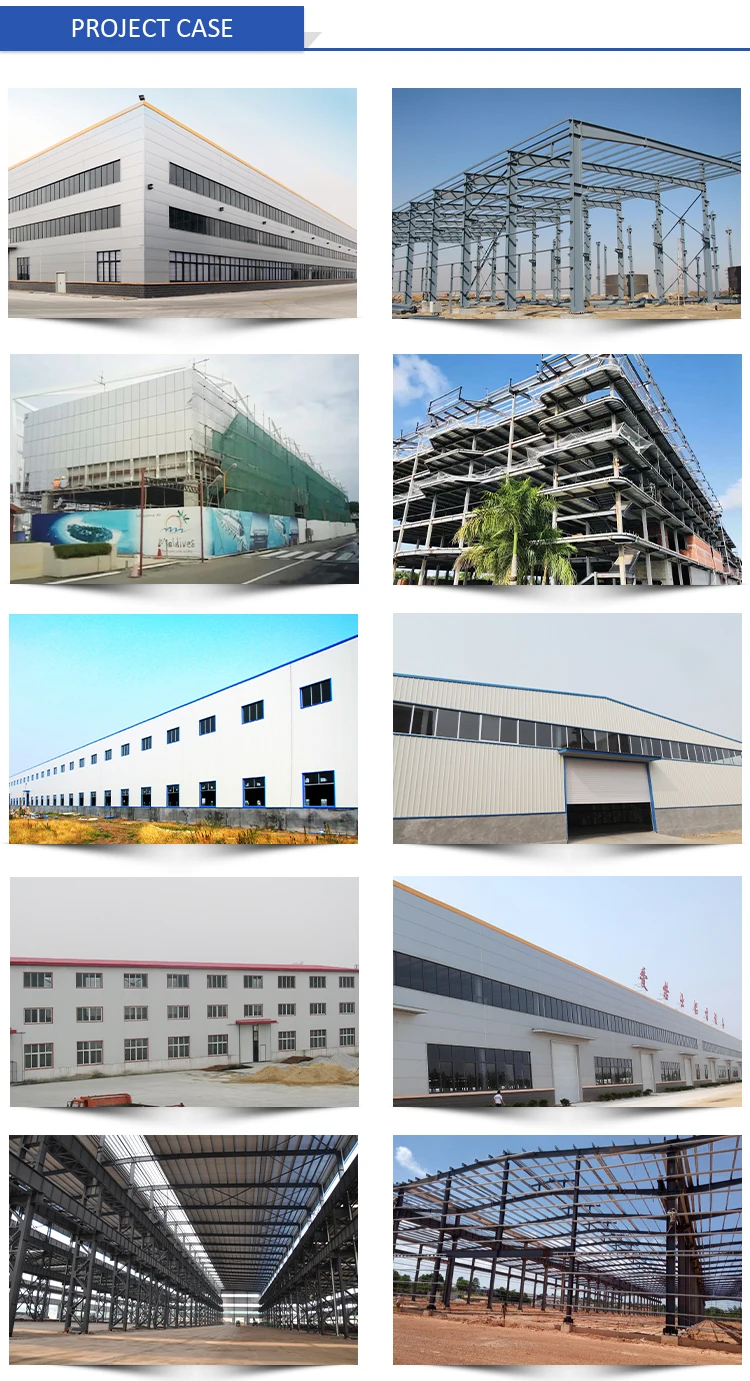

Project Case




Company Profile




Packing & Shipping




Q1:  Your company is factory or trading company?
A1:We are professional steel structure factory and founded in 2003,we have rich experience to do any kind of steel building.
Q2: Is steel structure building expensive?
A2: The steel structure of Weifang Tailai is economic. Its technology and materials used decreases cost of the building . All the material including the steel frames, wall body and roof for installation are prefabricated during the production process, therefore the labor costs for installation is decreased.
Q3: Can I customize my steel structure building?
A3: Yes, definitely.we can design the steel structure building for you according to your requirements. We will respect your opinion and will given our advice as well.
Q4: Do you offer service for installation?
A4: We will give detailed installation drawings and video for free. And if you need, we could send engineers as installation director even a team.
