Product Description


Product Application

With compressed air as actuating medium,piston air motor convets the pressure energy of compressed air into rotary mechanical energy.Compared to blade air motor,it has lager size and weight,lower speed,and more complex structure as per power unit,but has high started torque,well performance in low speed and longer life expectancy.It also has the feature of proof water,fire,moisture,explosion and high temperature,and has the advantages if overload automatic parking,and can start under load.So it is also used in various trades and industries.

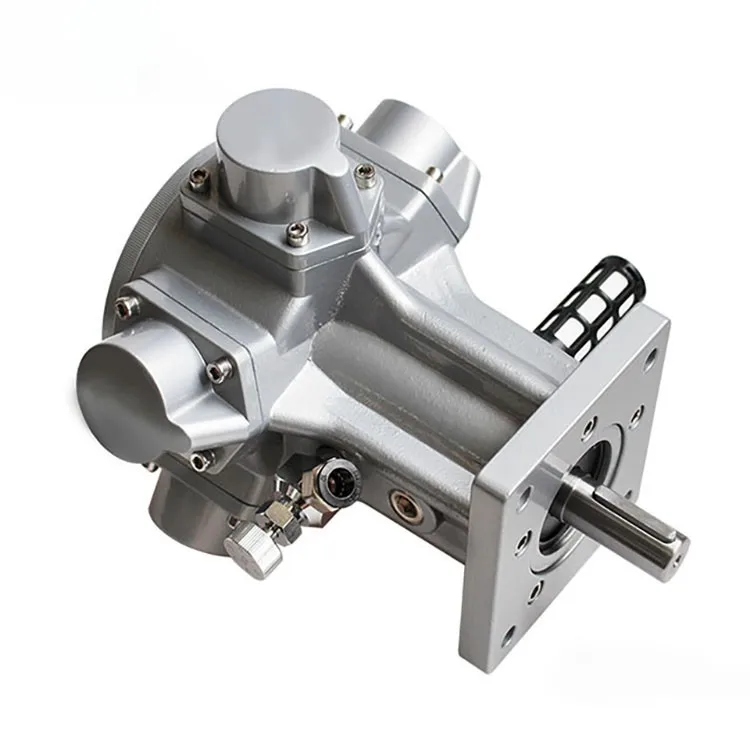

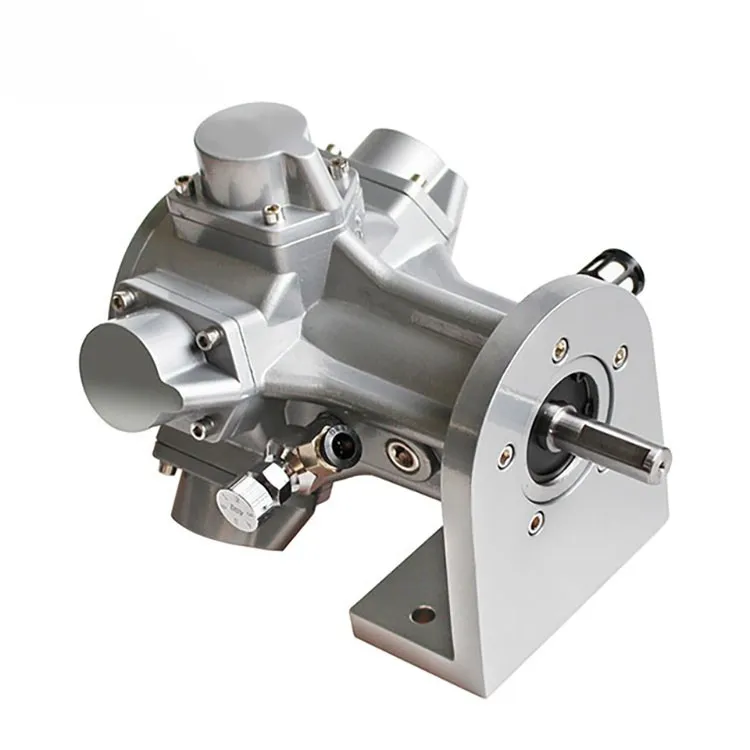

AM6 PISTON MOTOR


Gear ratio
1:1
 Max Free Speed
R.P.M
1400
Air consumption
L/min
507

Performance at maximum speed
power
HP
3/4
torque
NM
4.4
speed
R.P.M
700

Weight
Basic Type
kg
5.8
Lange Type
kg
6.3
Foot Type
Kg
7.5






Main Features

Air filter oil mist device should be installed when pneumatic motor is operated to achieve the best efficiency and prolong the service life.
Please consult our company when the deceleration ratio of DAM1 series is greater than 1/20 and that of DAM7 series is greater than 1/40.
Does the above specifications for the performance of surrounding temperature 20℃.In addition, the viscosity of the grease will change, if the ambient temperature decreases, the speed will also decrease.
The performance value of pneumatic motor refers to the value when the exhaust side pressure is atmospheric pressure.


Working fluid:compresses air
Use Pressure:6kg/㎡(85PSI)
The maximum use pressure:8kg/㎡(115PSI)
Environmentally suitable temperature:-10-+70℃(But should be used without freezing)
Continuous use:When using continuously, please use 80% or less of the maximum output speed.
Recommended speed range: (0.2-1)* Speed at maximum output
Oil filling: JIS K2213-1 series(Additive-free turbine oil ISO VG32)
lubricating oil:Internally sealed lubricating oil - air motor body - high load grease
