corrugated PVC roofing and cladding sheet is available in a choice of profile options and sheet weights.  It is guaranteed for 10 years.

10 Year Warranty
This product is covered by a 10 year warranty. A replacement is provided free of charge if the product has failed due to a manufacturing defect, in normal climatic conditions within a 10 year period from the date of purchase.

Vistalux MUST be fixed and maintained in accordance with the manufacturer's instructions for the warranty to remain valid: re-erections or consequential damage costs are not included.

· Choice of profile options to match metal roof corrugations

· Lightweight, Heavyweight and BS Superweight sheet to include cast iron 10/3''

· Accessories to match every profile

· UV resistant for durability

Durable and hardwearing

3 layer Heat Insulated UPVC Roof Sheet is manufactured based on 3 layer co-extrusion technology by one-time processing. It is  an ideal building material for construction projects with heat insulation requirement. The following is a list of the distinct features of each layer material.

 First layer:weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance;

Second layer:the middle layer is a special foam structure with heat and sound insulation performances.

Third layer:the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.

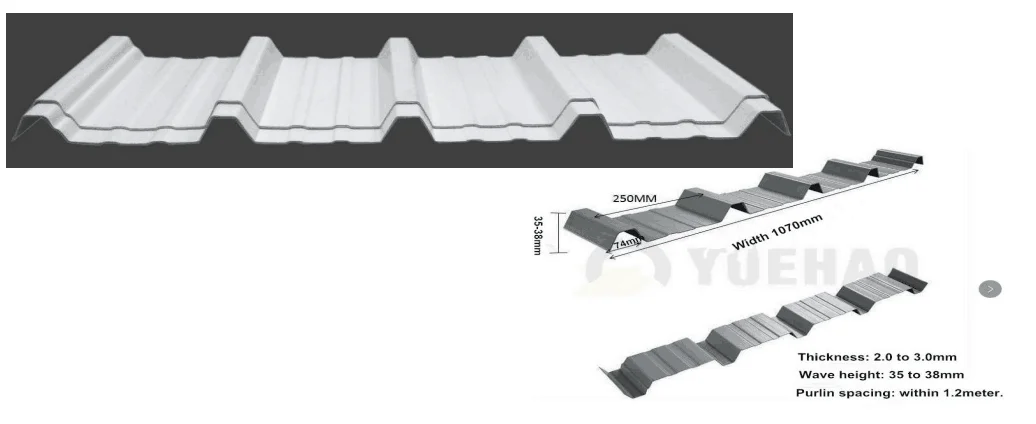

Color &Size are customized.Two shapes as below:

15years warranty

Cautions:

*Mind the sharp edge of the sheets in case of any injury.

*Please use a fine -toothed saw to cut the sheet.

*Do not fix screw sets too tight because the sheets will expand with heat and contract with cold. Otherwise, noise might occur when the sheet shrink due to low temperature.

*Screw sets must be fixed at the peak position of the sheets to avoid any leakage.

*The sheets must be installed starting from the opposite direction of local wind direction.

*Can drill hole with hand drill or power drill. When drilling, the sheet should be supported in the bottom side to prevent swaying, and the hole diameter should be 2.0mm bigger than screw.

*When fixing screws, special rubber mat should be placed under the tile, and the screws should be properly fasten and should not be too tight.

*The frame structure can be steel or wood as purines. Purlins require to be neat, parallel and evenly spaced without deforming.

*Purlins distance is related with temperature of the building, the higher temperature, the shorter distance of purlins.

*Two waves for crosswise lap joint while lengthwise lap joint should be respectively more than 15cm of the each end.

Purlins details as table:

ASA synthetic resin tiles / PVC sheets are the preferred choice for a variety of construction applications both in residential, industrial and commercial.

Yuehao plastic roof sheets /wall cladding sheets can be applied to the following construction:

*Fertilizer             *Papermaking                 *Foundry                  *Tourism place

*Mining                *Food processing           *Chlor-alkali              *Salinization

*Textile                *Residential villa             *Porcelain                 *Cultivation

*Brewing              *Electroplating               *Chemical                  *Nonferrous metal

*Poultry               *Pet house                     *Public utility              *Printing & Dying

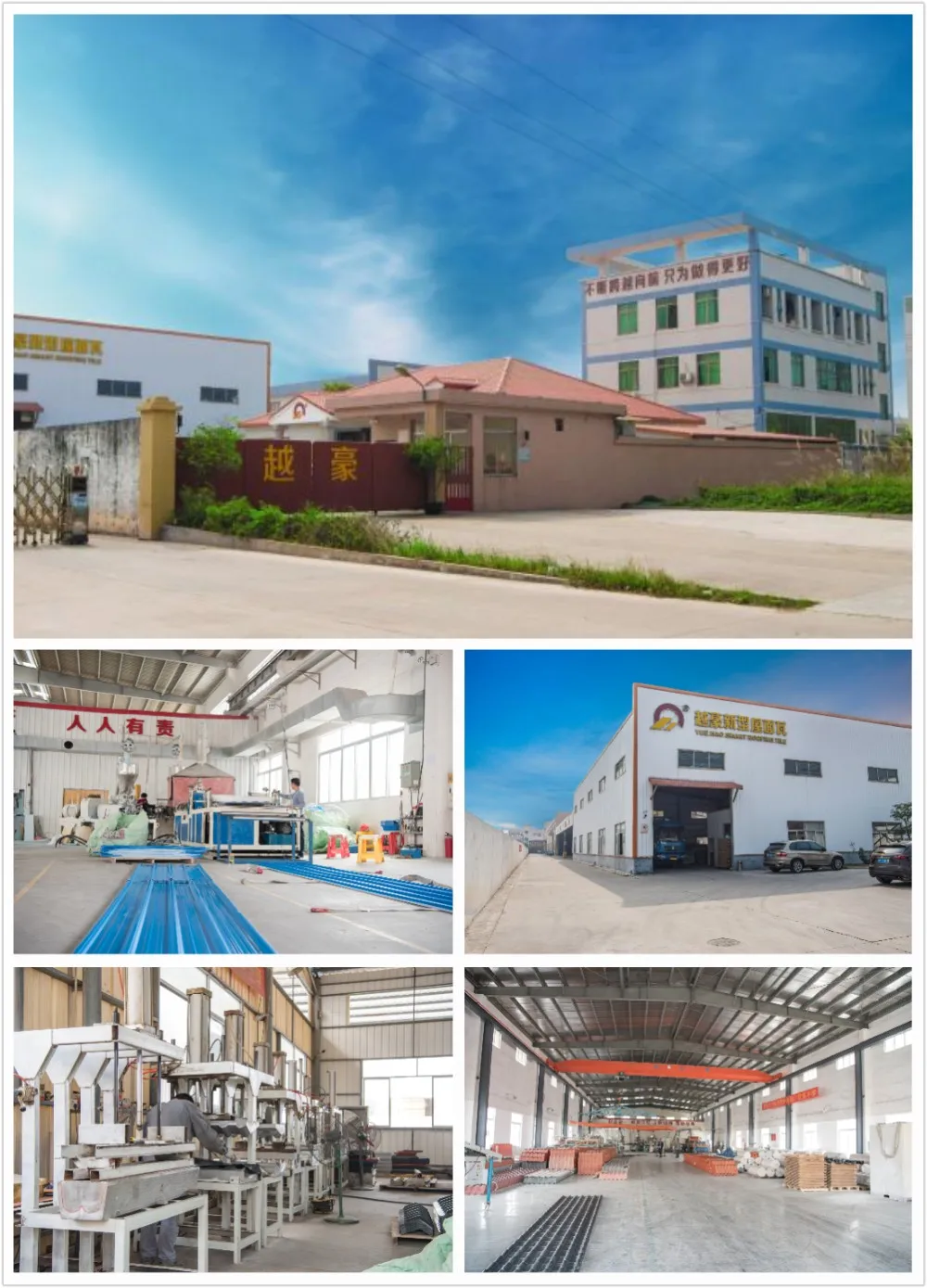

Our company:

     #Leading manufacturer in smart plastic roof tiles

     #With more than 2o years of manufacturing experiences

     #Focusing on ASA synthetic resin tile,, ASAPVC weather resistant tiles,

        APVC anti-corrosion tiles, UPVC heat insulation tiles

     #SGS/ ISO9001:2008/CE/MA etc. certificated

     #Aiming to develop a high-end brand

     #Having a professional R&D team and center

Our Promise :

            #A roof with high performance

            #Prompt and Efficient Service

            #Value of Money

            #Real Customer Value

Our Service:

#Free logo design and Printing

#Free samples

#Promotion support –brochure/poster printing

#Market Analysis-data support

#Big discount for starter

#Refund for large order

If you have any question, be comfortable to come to us!!

Why us? Quality is our culture!!

Clients'requirement and opinion are highly valued.

It is always a priority of us to offer quick and pleasing service.

 Dealing with Yuehao, your business in safe, your money in safe!

Send your Inquiry Details in the Below, Click "Send" Now!

1. You are trading company or manufacturer?

--Of course we are manufacturer! We offer you factory outlet price with no intermediary cost.

2.What is ASA ?

--ASA (Acrylonitrile Styrene acrylate copolymer) is a new type of plastic materials firstly   developed in 1970s. It has excellent features such as stable mechanical and physical   properties, tremendous weather resistance, good high temperature tolerance, franklinism   proofing.

3.What is PVC ?

--PVC (Polyvinyl chloride) is also a popular plastic materials firstly developed in 20   century, being applied in many fields.

4.Are your products eco-friendly?

--Our plastic roof products consist no asbestos, and are non-toxic, tasteless.

5. How is your payment term?

—Generally it would be T/T 30% in advance, balance to be paid before loading.

6. How to get samples?

--Free samples are available while the freight borne by buyer.
