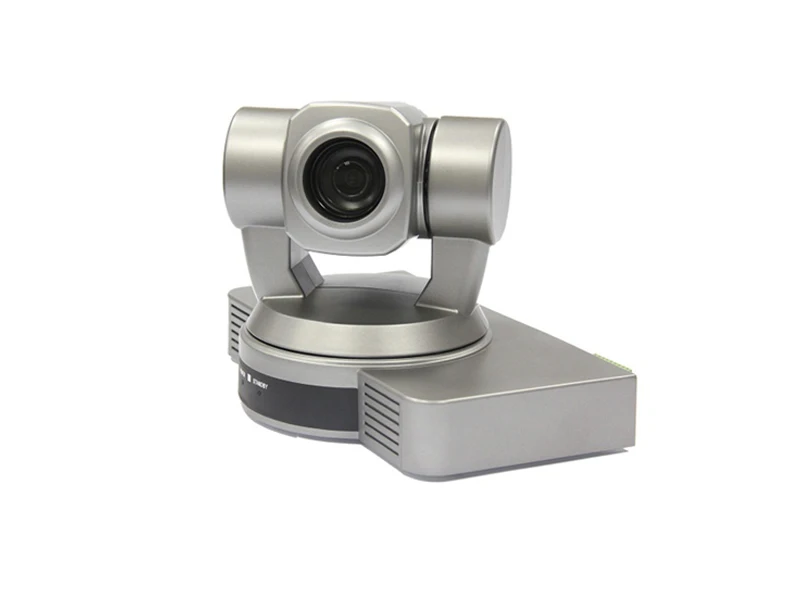

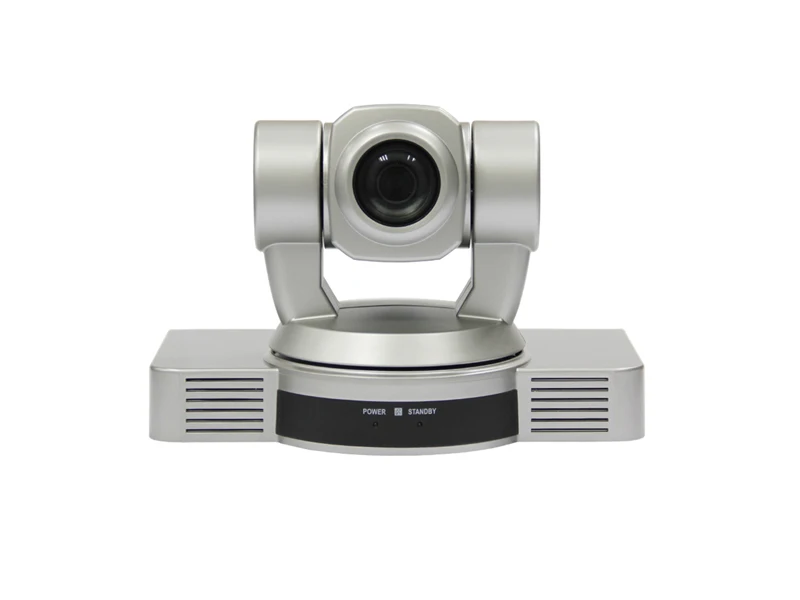

2020 новый заводской веб cmos-датчик YPbPr 3G sdi USB 1080p full PTZ-видеокамера для конференц-связи и прямой
- Категории: Камера видеоконференции >>>
- Поставщик: Shenzhen,Jinjiutianshi,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Details
Parameters:
Item No. | KT-HD20A | ||||
Image Sensor | 1/2.8''Progressive CMOS | ||||
Effective Pixels | 3.5 Megapixels | ||||
Resolution HD | 1080p60/50,1080i60/50,1080p30/25,720p60/50 | ||||
Signal System | PAL/NTSC | ||||
Lens | 20X optical zoom, f=4.7mm(wide angle end)~94.0 mm(far end) | ||||
Horizontal View Angle | 58.7°(W)~3.2°(T) | ||||
Focus System | Auto/Manual | ||||
Minimum Illumination | 0.5 Lux | ||||
Exposure Control | Auto/Manual | ||||
Shutter Speed | 1/25~1/10,000s | ||||
Gain | Auto/Manual | ||||
White Balance | Auto/ Indoor/Outdoor/Manual | ||||
Image Effect | Full color/black and white/Electronic flip | ||||
S/N Ratio | ≥50db | ||||
Pan | 355°(max. speed:80°/s) | ||||
Tilt | ﹣30° to +90° (max. speed: 60°/s) | ||||
Preset Position | 9 preset positions by IR remote controller, 255 preset positions by PC or keyboard controller | ||||

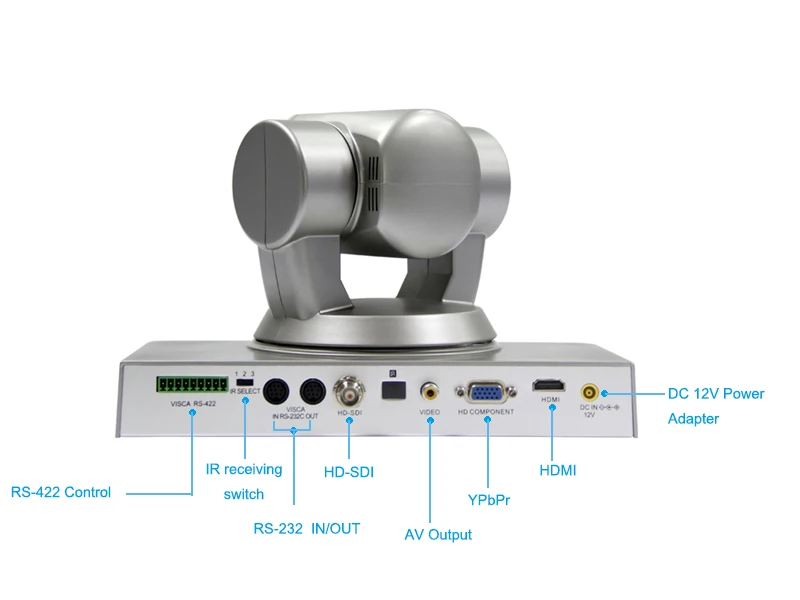

Video Output HD | HDM, YPbPr, 3G/SDI | ||||
Video Output SD | CVBS(RCA) | ||||
Control Protocol | VISCA, PELCO P/D | ||||
Control Mode | RS-232C, RS-422/485 | ||||
Power | 12V DC(10.8~13.0V DC) | ||||
Power Consumption | Max. 30W(DC 12V) | ||||
Operating Temperature | 0~40℃ | ||||
Storage Temperature | -20-60℃ | ||||
Dimensions | (L)262×(W)165×(H)157mm | ||||
Weight | 1710g | ||||
Color | Silver white | ||||

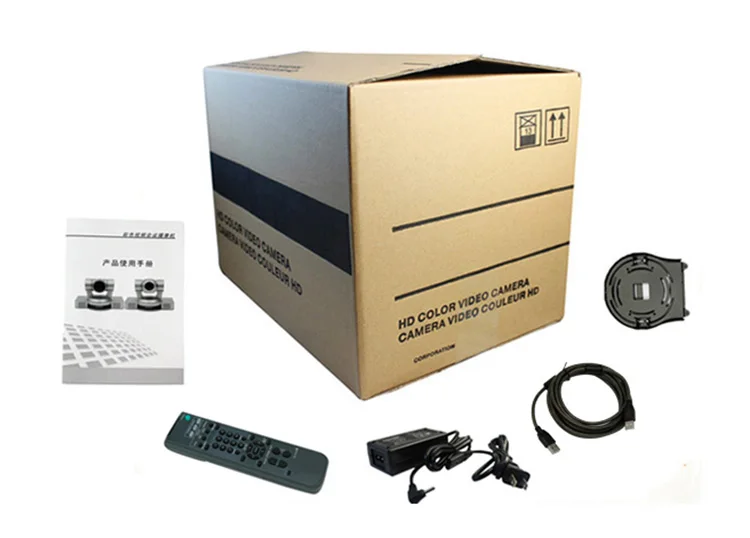

Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, YPbPr or HDM cable, Ceiling bracket | ||||
Certificates | ISO/CE/FCC/ROSH | ||||
Warranty | 3 years | ||||

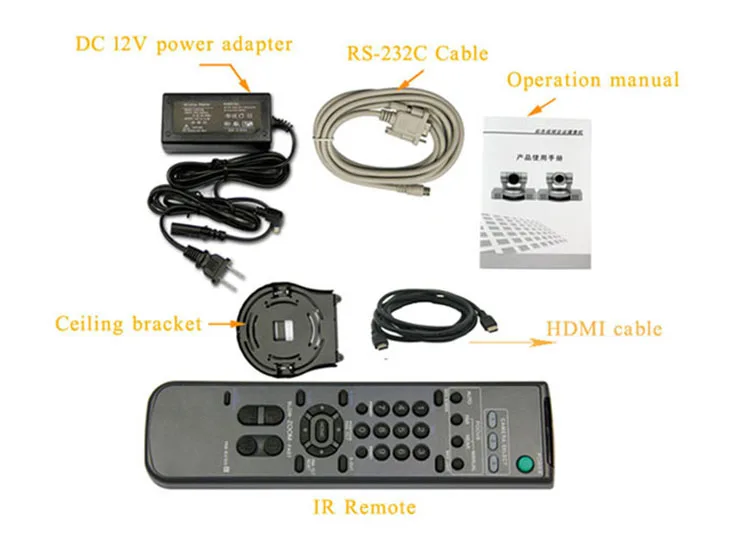

Accessories:
Main Application:
High Definition video conferencing camera KT-HD20A is widely used in Video Conference System, remote learning, Telemedicine, meeting, Church, Scene of the incident, courts, media centers, chain stores, transportation and other monitoring.
2019 attractive ypbpr sdi PTZ video conference camera for teleconference
Related Products
Our Company
Certifications
Exhibition:
Packing & Delivery
FAQ
1. What's your payment term?
Our payment term is TT in advance before shipment.
2. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
3. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients when meet with any technical problem.
4. Could I put my own logo on products?
Sure, we have our R&D department, we can do ODM and OEM.
5. How do you guarantee the quality?
We have our own QC to inspect all our goods before packing. And also, we have do CE/FCC/ROSH,ISO.
6. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation. You are welcome to visit our company or our factory anytime you like. You can also choose trade assurance for your order.
