Product Description
Electrode Making Machine With Cutting S-cotch Pasting And Welding For Battery Production

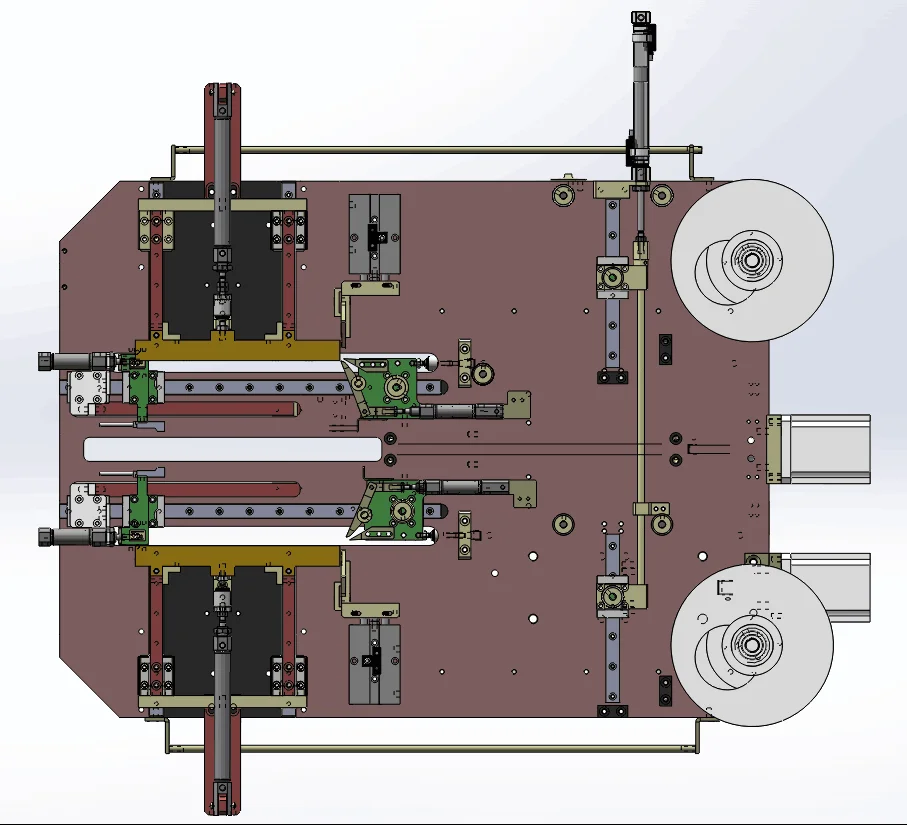

This is an electrode making device that integrates functions such as cutting, scotch pasting and welding. It has high productivity and stability.
Application

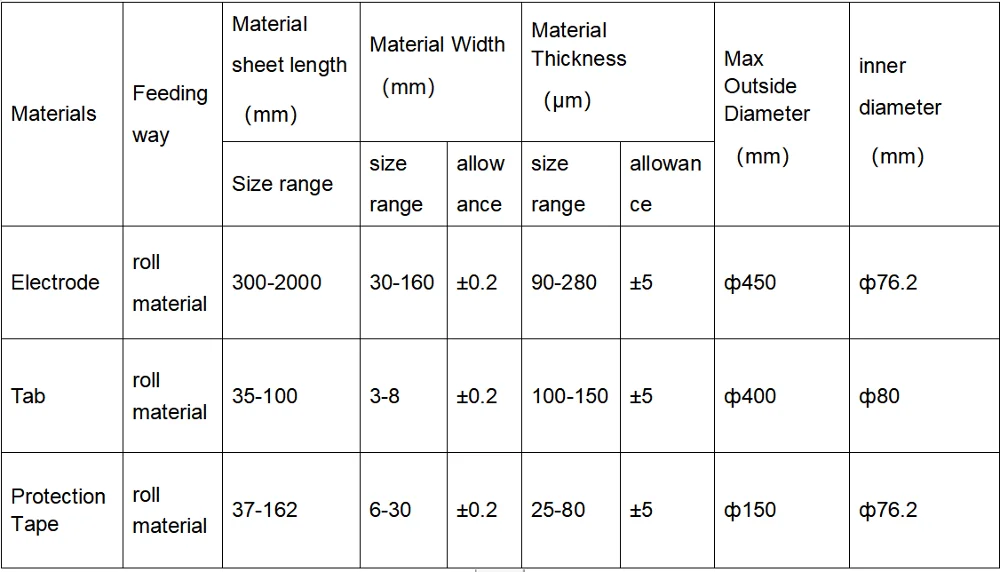

Adapt to material specifications:
1) Electrode coating intermittent error: ±0.5mm
2) Electrode blank and is against the error: ±0.5mm
3) Snake bending error of single piece pole piece: 0.2mm/500mm. The pole piece is +/- 0.5 mm and the ear is +/- 0.2 mm.
Technical Parameters
No. | Item | Parameters | Remark |
1 | Single electrode length | 300-2000mm | According to the customer process |
2 | The left and right positions of the tab glue are precise | ±0.5mm |
|
3 | · Precision between tab glue and electrode edge | ±0.25mm |
|
4 | The total length of the tab precise | ±0.3mm | with the precision of the material |
5 | Tab welding position error | ±0.3mm |
|
6 | Deviation of tab welding | ±1° |
|
7 | Tab welding tension | (0.05-0.15mm) four-point welding shall be performed between the tab and the electrode edge of the precision negative tab. At least 3/5 area of the three points shall be bonded to the foil meat, and 2/5 area of the one point shall be bonded to the foil meat | Tab welding tension≥10N |
8 | Life of tab cutter | Negative: 200,000 times | It has to do with the thickness of the tab |
9 | Cutting burr | electrode≤0.02mm, |
|
10 | Precision tab length | ±0.5mm |
|
11 | · production cycle balancing | · 800mm long and 100mm wide, two glue speeds of 22-28ppm; | the length of the electrode |
Our Company & Team
Certifications
Cooperative Partner
Packaging & Shipping
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
FAQ
About Product
1.Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2.How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3.Products standards?
Our instruments adopts ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4.Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.
5.Payment methods?
T/T, L/C, D/P and so on
6.Packing method?
Standard export wooden box packaging
7.How about customers evaluation for your products?
Our company has established long-term cooperation with the SGS, Bureau Veritas, TUV and Intertek,our high quality products and first-class after-sales service.Our services get the trust of the customer satisfaction and recognition for themselves.
8.Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
10.How to ensure the customer standard use the instrument?
We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.
About Shipping
1.Order processing?
Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or weekends.)
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damage part for you for free.
3.Order tracking?
Online order can be tracked by login to your account. Please allow 24 hours after order is shipped to see logging details.
If you need a tracking number for your order, please send an email to us with your order/invoice number.
4. Import/export tax, duty, GSM, Customs Clearance, and etc?
All import/export related expenses are sole responsibility of the buyer; charges will vary from country to country. Please consult with your local import experts or transportation carrier for more details.
5.Lost or Stolen packages?
Please report all lost or stolen packages to us at the earliest possible time. An investigation will be open soon after reporting the incident to us, and a final ruling will be issued by the carrier for the claim after 10-15 business days. A replacement package will be sent as soon as the claim is accepted by the responsible carrier.
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damage part for you for free.
3.Order tracking?
Online order can be tracked by login to your account. Please allow 24 hours after order is shipped to see logging details.
If you need a tracking number for your order, please send an email to us with your order/invoice number.
4. Import/export tax, duty, GSM, Customs Clearance, and etc?
All import/export related expenses are sole responsibility of the buyer; charges will vary from country to country. Please consult with your local import experts or transportation carrier for more details.
5.Lost or Stolen packages?
Please report all lost or stolen packages to us at the earliest possible time. An investigation will be open soon after reporting the incident to us, and a final ruling will be issued by the carrier for the claim after 10-15 business days. A replacement package will be sent as soon as the claim is accepted by the responsible carrier.
