Waste plastic recycling machine plastic washing line for sale
Brief Introduction:

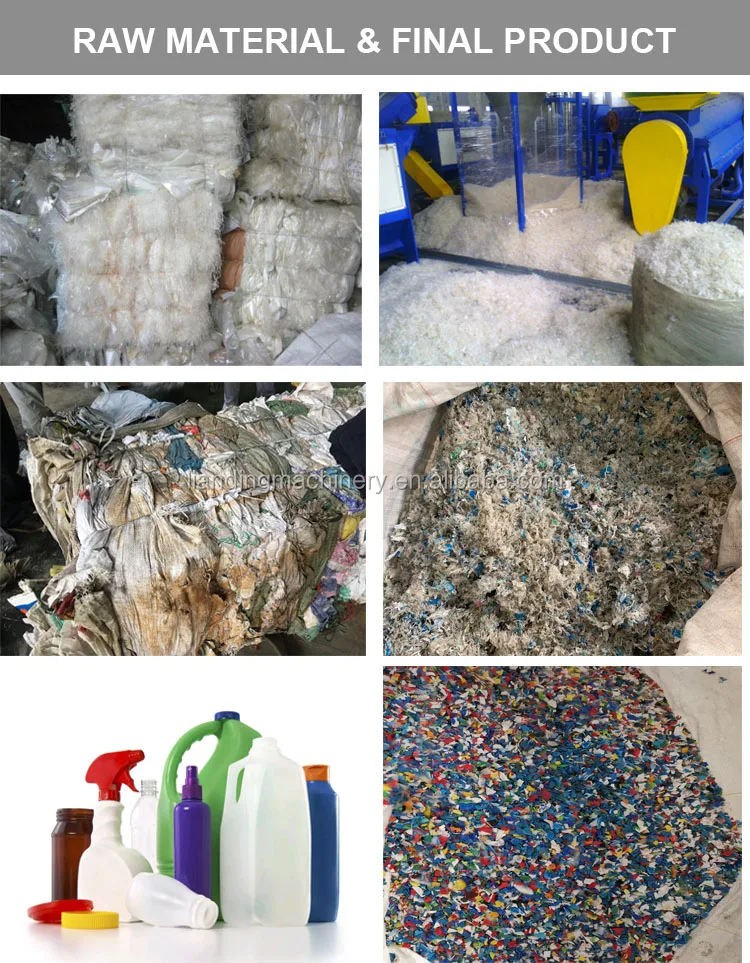

a. Main usage: This machine is used to crush film or woven bags into flakes, wash by water, make flakes dry,and then get the clean and dry pp/pe/hdpe/ldpe flakes.
b. Superiority: Easy operation, high capacity, low energy consumption, safety, reliability, etc.
c. Production capacity: 300-2000kg/h
d. Moisture: 1-3%
Specification:
Capacity(KG/H) | 300 | 500 | 1000 |
Crusher motor(KW) | 30 | 45 | 55 |
Dewatering machine(KW) | 37 | 45 | 55 |
Total power(KW) | 120 | 150 | 250 |
Water content | Less than 3% | Less than 3% | Less than 3% |
Total length(M) | 20 | 26 | 38 |
Process Flow:
♦ Belt conveyor: conveying dirty plastic film or bags into crusher. If too much scrap iron, metal detector may be needed.
♦ Crusher: can crushing with water, cutting plastic film or bags into small pieces.
♦ Screw loader: load film pieces into the next step
♦ High-speed friction washing machine: wash out the sand, soil and loading the material
♦ Washing tank: separate the sand, soil and other dirties
♦ Horizontal dewatering machine/squeezing dryer machine: remove the water from the material
Or Squeezing dryer and pelletizing machine: not only can dewater but also can make semi-plasticized granules.(Using this machine, you will not need dewatering machine, pipe dryer system and agglomerator any more.)

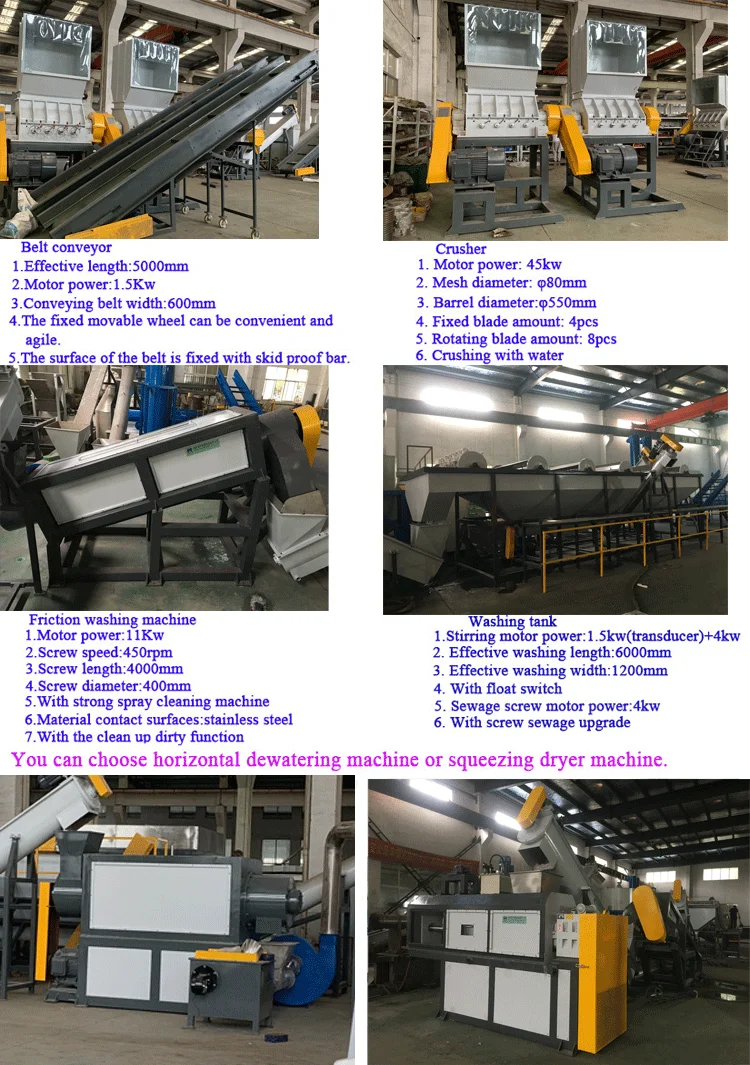

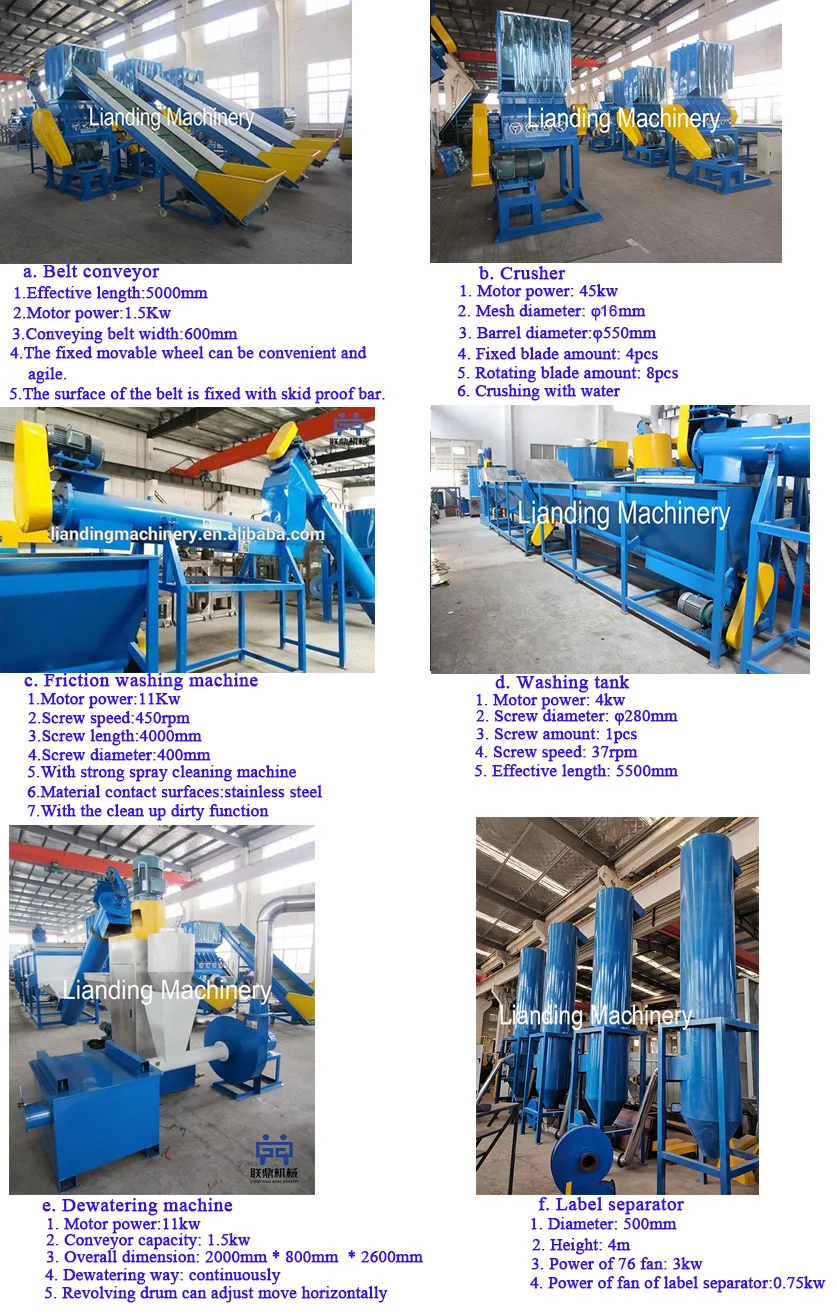

Technical parameters&detailed images:

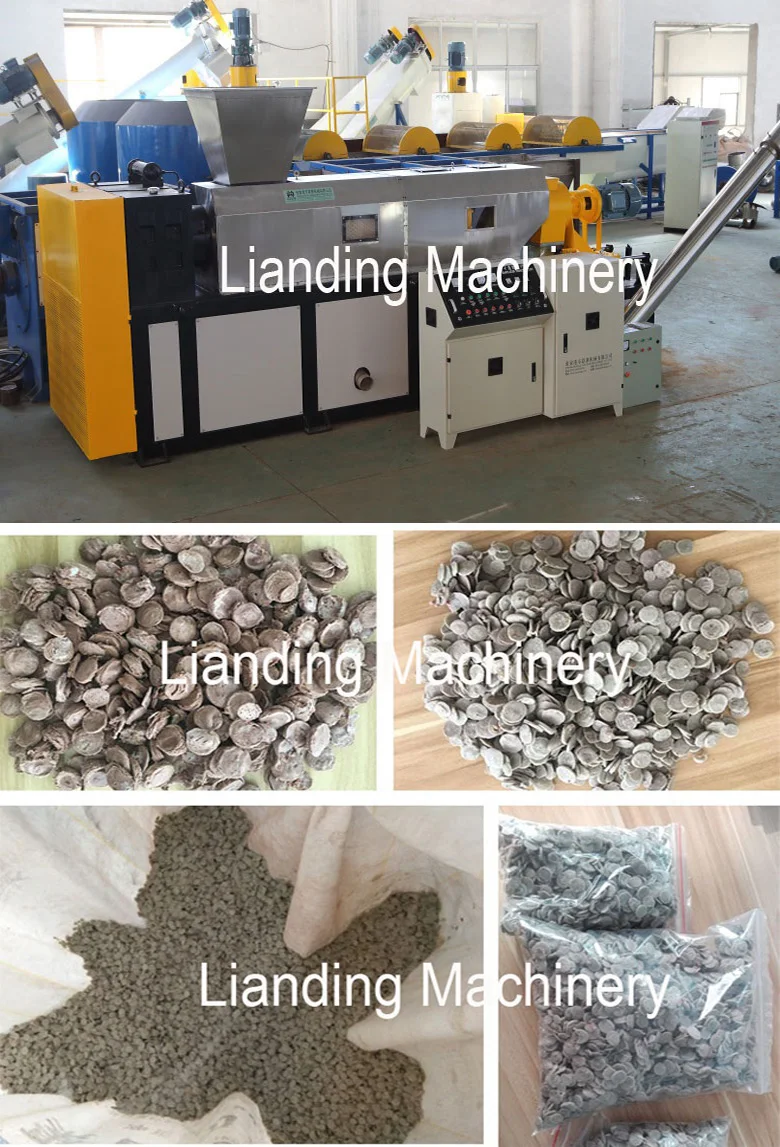

You can also choose squeezing dryer and pelletizing machine:
This machine is our new designed machine, specially screw pressing design. This machine is especially for plastic film, plastic bags, woven bags, jumbo bags, solving the drying problem in the past. And it makes materials easier to be granulated and dry, and if you use it, you will do not need following three machines: dewatering machine, pipe drying system and agglomerator, only need one stage extruder recycling machine instead of two or three stage recycling machines.

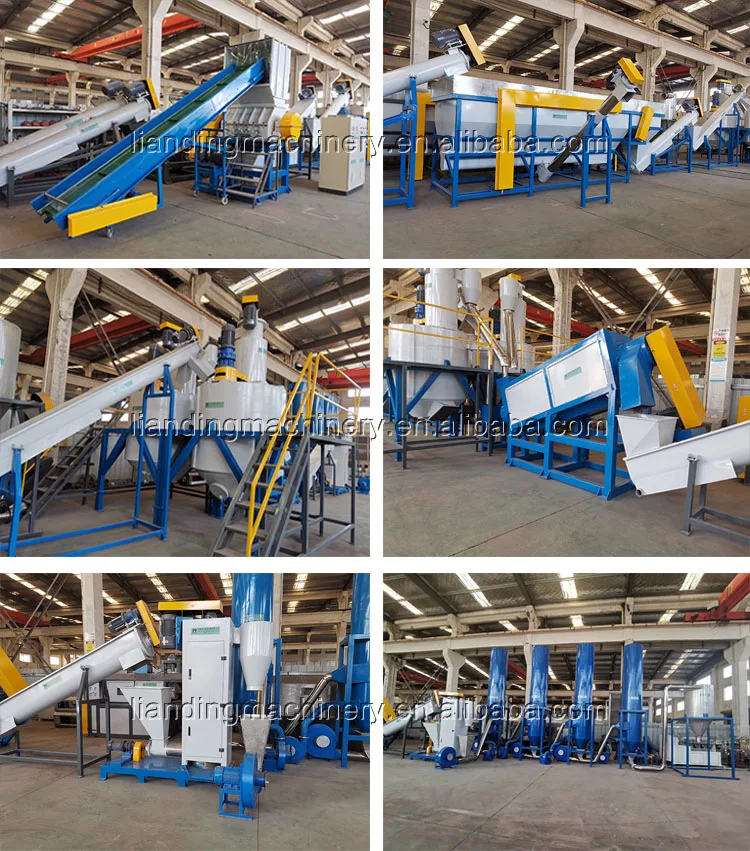

More pictures of machine:
Related machine:
PET bottle washing line(click here)
Transaction history:
Our Service:
Pre-sales Service:
1. Inquiry and consulting support.
2. You can come to visit our factory.
3. Testing support.
After-sales Service:
1. Engineers available to service machine overseas.
2. We supply all necessary documents with the machine.
3. Our warranty period is one year from the date of completed installation. And we offer the parts at reasonable price for life time. If any parts of machine have broken, we will send you a new one asap.
4. If you have any problem in using the machine, we provide technical support and operation help at any time!
Testing machine in our factory before delivery:
Our Advantages:
1. Our company has more than ten years' experience in recycling field and we have sold machines to lots of different countries.
2. We are Alibaba top and trade assurance supplier and we have CE/TUV certificates.
3. Our machines are of superior quality, good performance with low price.
5. We normally guarantee key parts of machine for two years and provide the parts of machines at reasonable price for life time.
Our machine have sold to clients from lots of countries and we have almost ten years' professional experience in recycling field.
