Product Description

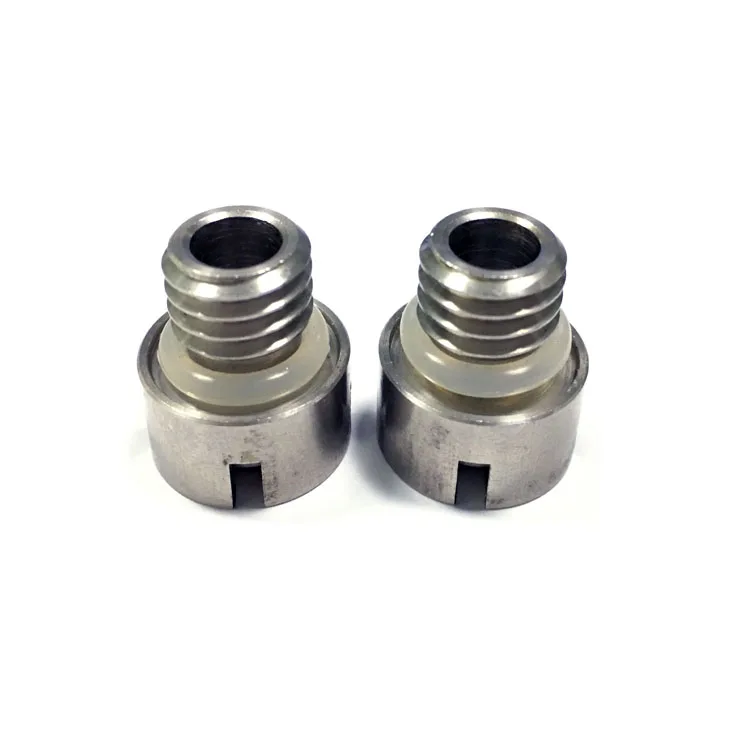

Waterproof metal air vent plug with e-PTFE breather M12 industrical instrument

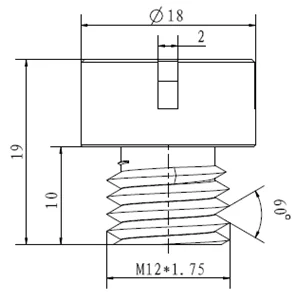

| Thread specification: | M12*1.75mm | Spanner size: | 0 |
| Mounting thread height: | 10mm | Maximum OD: | 18mm |
| Body material: | Aluminum alloy | Vent membrane: | e-PTFE membrane |
| Seal ring: | Silicone rubber ring | Color: | Silver or OEM |
| Airflow rate | 1.26l/min at 10Kpa | WIP: | -12Kpa |
| Temperature range: | -40℃~ +150℃ | IP rate: | IP67 |
| Fire resistance rate: | UL94V0 | Service life: | 10 years |
Vent application
Vent plug products are widely used in LED, Sensor, packaging products, telecommunication, electronic products, Optical industries and so on.
Company Information
Huizhou mystar technology Co.,Ltd will be a good friendly supplier for you to choose if you need OEM silicone rubber and water-proof vent plug and EPV products, we have professional design team and sales team to help you in silicone rubber products and waterproof vent products. We have our owm mould production workshop and engineer thus it can greatly decrease the cost for the products, Belive us also believe yourself, we can help, if you need, thanks!
