Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300
Китайский экспорт новая машина VMC по самой низкой цене в
- Категории: Machine Centre >>>
- Поставщик: Shandong,Alles,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Small size mini type bridge cnc mill machine center for milling drilling boring on metal is a bridge structure,fixing worktable,beam moves forth and back on the wall post ,gantry vertical cnc machine center,It can be used in milling ,boring,drilling and tapping of components in high speed and quality.It is suitable for the processing of components of automobile,Printing Machinmery,Textile machinery,Rolling stock and other mechanism manufacture industry.
specification
Item | Sub-item | Unit | ALVMC850 |
Worktable | Worktable size | mm | 1000x500 |
T-slot | mm | 18x5x90 | |
Max. load | kg | 400 | |
Travel | X axis travel | mm | 800 |
Y axis travel | mm | 500 | |
Z axis travel | mm | 500 | |
Spindle | Spindle nose to worktable | mm | 150-650 |
Spindle center to coumn face | mm | 572 | |
Spindle taper | / | BT40 | |
Spindle speed | rpm | 10000 | |
Spindle drive | / | Belt drive | |
Spindle head casing diameter | mm | φ140mm | |
ATC | ATC type | / | Arm type |
Tool capacity | pcs | 24 | |
Max. tool dia | mm | Φ80(Φ130) | |
Max. tool weight | kg | 8 | |
Max. tool length | mm | 300 | |
Tool holder | type | BT40 | |
Tool change time (T-T) | sec. | 1.8 | |
Rivet | type | P40-1( 45°) | |
Tool selection | / | Random | |
Motor capacity | Controller | / | Mitsubishi M80b |
Spindle motor (continuous / 15 minutes) | kw | 7.5/11 | |
Servo motor (X/Y/Z) | kw | 1.8/1.8/3.0 | |
Automatic lubrication device | w | 35 | |
Cutting fluid pump | w | 840 | |
Battery capacity | kVA | 25 | |
Other | Air source pressure demand | kg/cm | 6 |
Cutting water tank capacity | L | 250 | |
positioning accuracy | mm | 0.01 | |
Re-positioning accuracy | mm | 0.008 | |
Floor area and height | mm | 2550*2250*2400 | |
Machine weight | kg | 5000 |

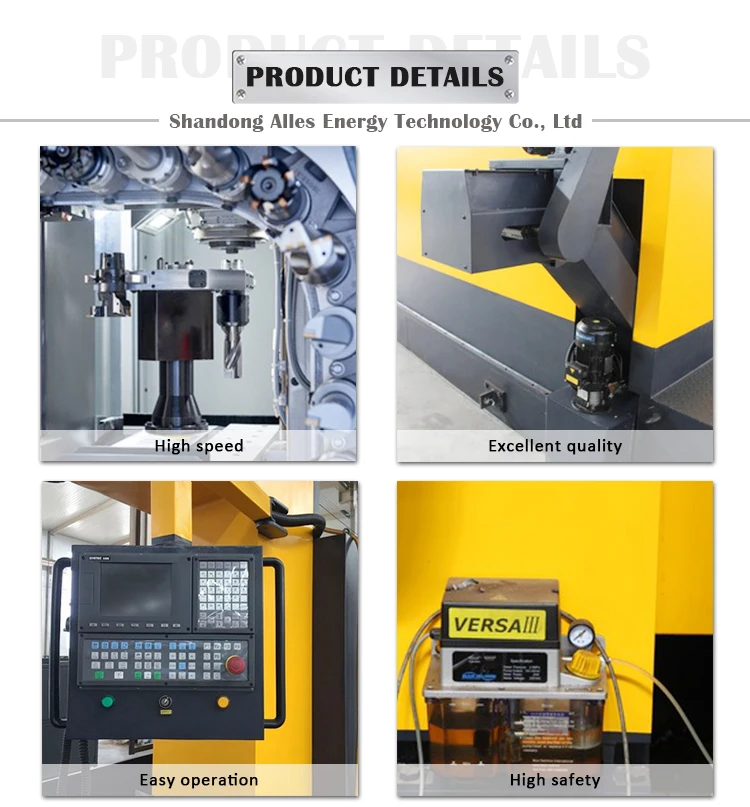

Product details
