Product Description
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
The purpose of BGA rework station is to desolder, mount and solder BGA chip of laptop, xbox360, computer motherboard, ps3, etc. bga chip desoldering and soldering machine
For large and small service centers of; mobile phone and radio systems, PDA's, handhelds, notebooks, mother boards, communication systems, military and medical systems, etc. Suitable for all SMT parts; BGA, CBGA, CSP, QFN, MLF, PGA, uBGA, QFP, PLCC, SOIC, SOJ, etc. bga chip desoldering and soldering machine
Recommended for plastic parts; PTH, sockets, connectors and metal covers. bga chip desoldering and soldering machine
Usage: desolder, clean, reball, solder, replace BGA, FBGA, CBGA, QFP chips all surface mount chips.

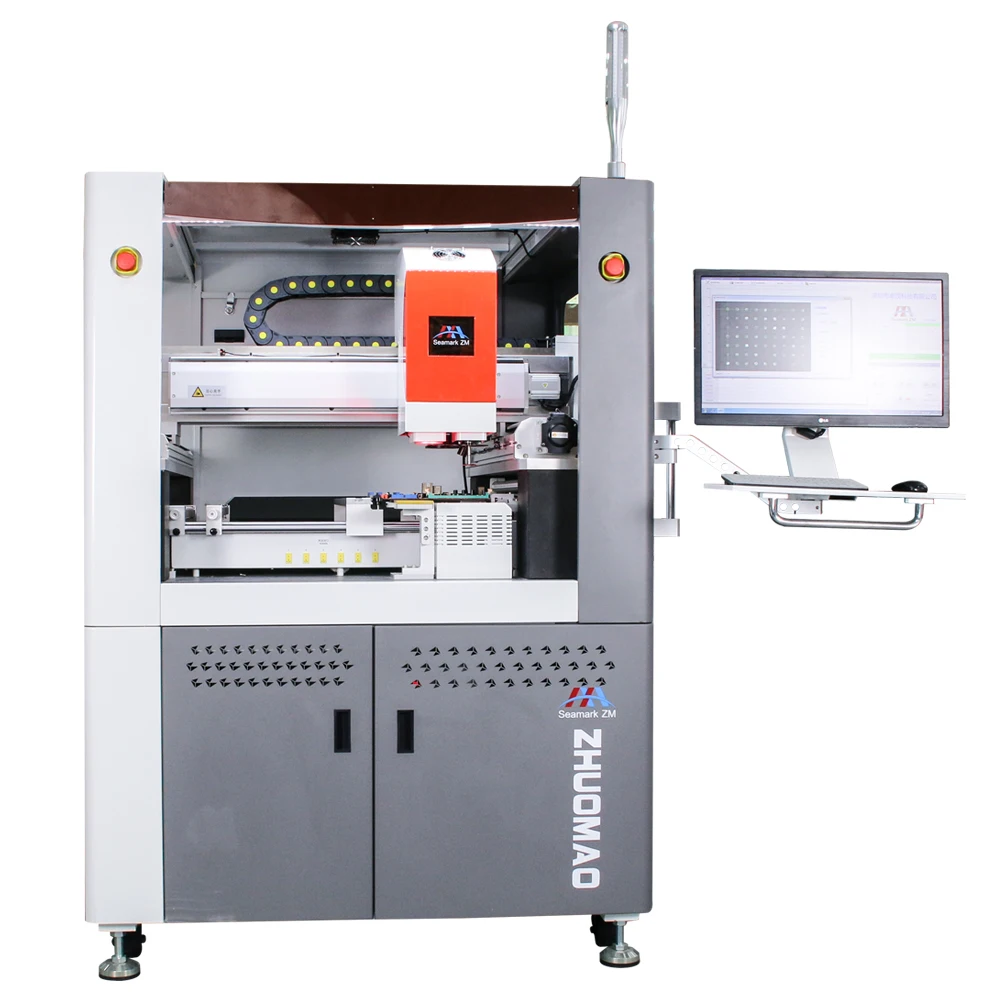

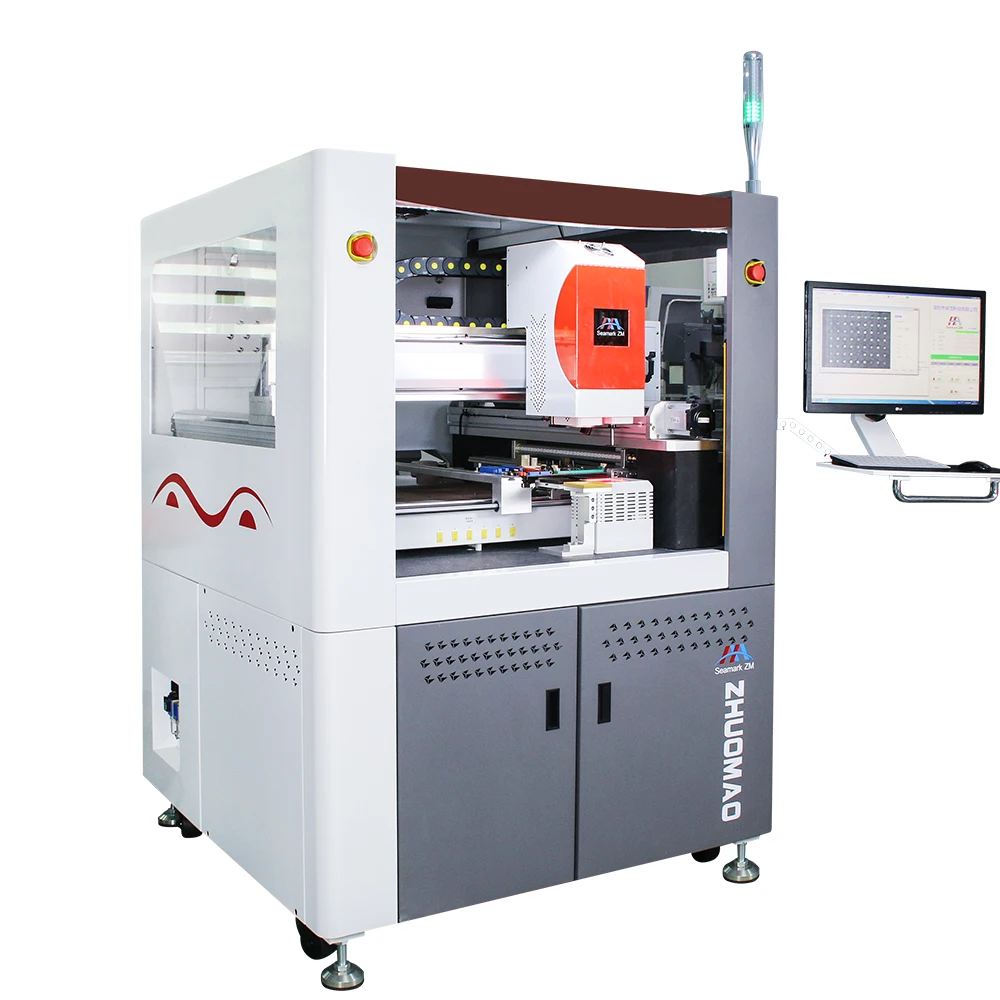

ZM-R8650 Optical BGA rework station introduction:
As a full automatic BGA rework station, it can repair the motherboard automatically. The mainly automatic repairing process including 3 parts: bga chip desoldering and soldering machine
1.Automatic desoldering the BGA– Remove.
2. Automatic alignment the BGA – Mount.
3. Automatic soldering the BGA- Solder.
After finish the3 process, the motherboard repairing finsihed. bga chip desoldering and soldering machine
Beside the BGA rework station, we also manufacture the X-ray inspection machine. We can use the X-ray machine to test & analyze the rework quality for your viewing. It works perfect. bga chip desoldering and soldering machine
Q: What kind of company will need the full automatic high value BGA rework station?
R: There have no specific definition. But this full automatic BGA rework station ZM-R8650 has been sold to many company to repair the high value motherboard, they strict requirements for the rework quality and efficiency and they have stable big quantity that need to be repaired. bga chip desoldering and soldering machine
Main Features:

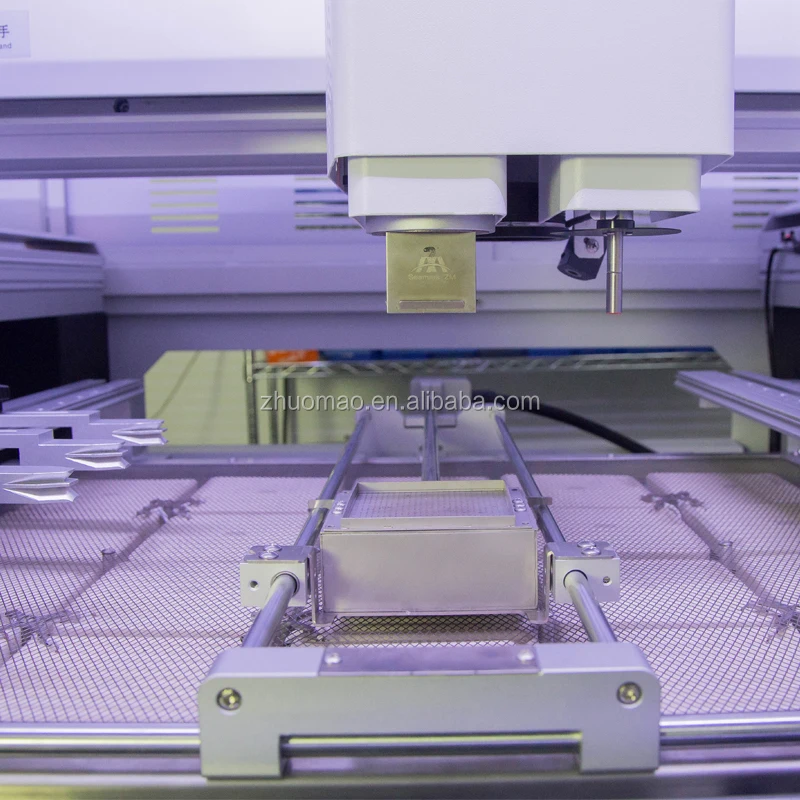

1. 3 independent control heaters: bga chip desoldering and soldering machine
The top and bottom heaters of ZM-R8650 can heat PCB from upper and bottom at the same time, and large preheating area can prevent the PCB board from deformation. The top and bottom heaters work independently,controlled by software, it makes the lead-free repair easily. The external sensors can detect temperature precisely, analyze and calibrate the real temperature curve accurately at any time. motherboard repair machine price
Industry top technology fully automatic BGA Rework Station ZM-R8650 Motherboard bga chipest soldering and desoldering station

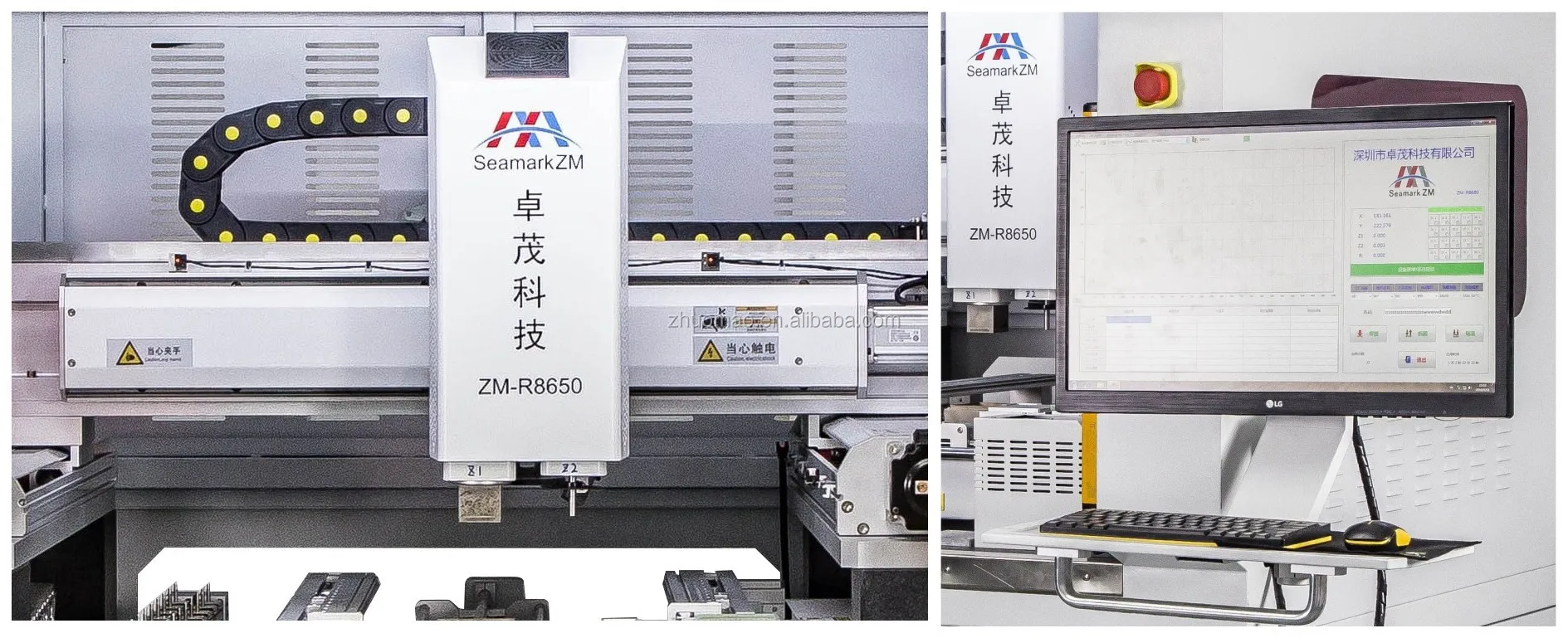

2. Precise vision alignment system bga chip desoldering and soldering machine
ZM-R8650 adopt Panasonic automatic vision alignment system,it can get the image of BGA and the PCB through the CCD camera and collect them on the image positioning processing system, calculate the offset position and angle through image processing software then re-transmission to motor drive of servo controller to correct the position,thus completing the BGA placement. The positioning accuracy within ±0.025mm; The image can zoom in ,zoom out and micro adjust.
Industry top technology fully automatic BGA Rework Station ZM-R8650 Motherboard bga chipest soldering and desoldering station
3. Advance intelligent operation system bga chip desoldering and soldering machine
It is operated by keyboard, mouse and 15 inch HD LCD monitor; high accuracy K type close-loop thermocouple, and PID parameters automaitc adjustment system;the top heater and mount head are designed independently;the X,Y,Z axis and angle are controlled by panasonic servo control system to get accurate aligning point and heating point, with full automatic identify the height of BGA chips and mounting ,it is of automatic positioning, mounting,soldering and desoldering function.There are 8 segments rising temperature and 8 activity temperatures. And it can save millions of temperature profiles and alignment parameters, for easy option desire profiles according to the different BGA chips.
Industry top technology fully automatic BGA Rework Station ZM-R8650 Motherboard bga chipest soldering and desoldering station
4. Superior safety functions bga chip desoldering and soldering machine
With optical grating protection, when the machine is working, if the optical grating signal was blocked, then the machine iwill stop immediately;When the servo motor collide with other objects, it will stop working. There are 3 color lamps to monitor the machine working at any time,it is of superior safety protect function
Industry top technology fully automatic BGA Rework Station ZM-R8650 Motherboard bga chipest soldering and desoldering station
Detailed Picture
The ZM-R8650 full automatic BGA rework station can be applied to repair different BGA / CGA / IC and various shielding devices, meet the requirement high quality automatic rework of lead-free soldering process. bga chip desoldering and soldering machine
Can repair maximum PCB size: 600×560mm.
Detailed Images
Our Company
Seamark ZM Technology Group (Zhuomao Technology) was established 15 years with over 200 employees and 5000 square meter. Zhuomao has been specializing in SMT BGA Rework Equipments ect. We gained more than 40 patents, and all machines passed the international CE Certification, ISO9001 Quality System Inspection Certification and so on. Zhuomao SMT Equipments not only meets the demand of domestic market, but has also been sold around the world. We have around 100 agents and cooperator in Europe, Asia, Australia and Africa, the Middle East and other countries.
In order to meet the international market demand and customer customization requirement, we keep developing and researching different level of machines for different customer choice. bga chip desoldering and soldering machine
Packing & Delivery
Packing & Shipping of ZM-R8650 BGA Rework Station: soldering machine
1. Standard export wooden package for bga rework station.
2. Delivery within 10 business days after payment confirm;
3. Shipping by air or by sea. bga chip desoldering and soldering machine
4. Loading Port: Shenzhen or Hongkong.
FAQ
1. How about the package ? Is it safe during the delivery ?
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
All machine is packed by standard strong wooden carton.
It is safe when shipping.
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
2. What is the delivery way ? How many days will the machine arrrive us ?
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive.
Or by Air to your airport (Door to Airport Service ), around 3 days to arrive.
Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive.
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
3. Do you provide the Warranty ? How about the after sales service ?
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
1 year warranty free for spare parts, Whole life technicial support.
We have professional after sales team, if any question, assistant videos are also provided in after-sale service.
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
4, If we come to your factory, if you will provide the free training ?
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
yes, warmly welcome you to visit our factory, we will arrange the free training for you.
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
5. What is the payment way ?
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Cash, etc.
Automatic bga chip desoldering and soldering machine ZM-R8650 hot air and infrared BGA rework station
For more details of the automatic BGA rework station solution, please feel free to inquire us. We're 24-hour online for you.
