ЖК-дисплей 2 4 дюйма 128x64 OLED SPD0301 с сенсорным
- Категории: Модули дисплея >>>
- Поставщик: Dongguan,Shineworld,Investment,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
2.4 Inch 128x64 OLED SPD0301 LCD Displays OLED Touch Screen | ||
Diagonal Screen Size | 2.42 Inch | |
Color | Monochrome (white/blue/Yellow/Green) | |
Number of Pixels | 128x64 | |
Module Construction | COG | |

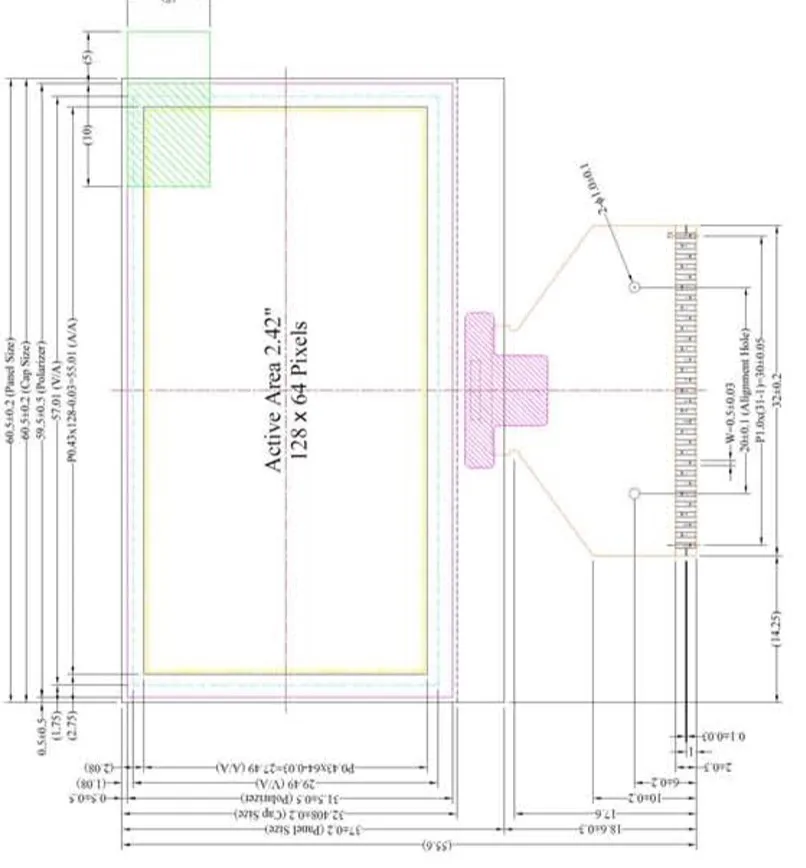

Panel Size | 60.5x37x2mm | |
Active Area | 55.02x27.49mm | |
Pins | 31/24 | |
Drive IC | SSD1305 | |
Interface | Paralled/I2C/4-wire-SPI | |
Pixel pitch | 0.43x0.43mm | |
Assembly | Soldering/Connector | |
FPC Length | 18.6 mm | |
Temperature Range | ||||
Item | Min. | Max. | ||
Operating Temperature (°C) | -40 | 70 | ||
Storage Temperature (°C) | -40 | 85 | ||
\t\t\t\t\t\t\t\t\tMore Products \t\t\t\t\t\t\t
Screen Size | Item No. | Number of Pixels | Pins | Interface | Drive IC |
0.42" OLED Display | 72x40 | 16-pin | SPI/I2C | SSD1306 | |
0.48" OLED Display | 72x32 | 11-pin | 4 wire SPI | SPD0301 | |
0.49" OLED Display | 64x32 | 14-pin | 4 wire SPI | CH1116 | |
0.5" OLED Display | 48x88 | 14-pin | I2C | CH1115 | |
0.66" OLED Display | 64X48 | 28-pin | Parallel/I2C/SPI | SSD1306 | |
0.69" OLED Display | 96X16 | 14-pin | I2C | SSD1306 | |
0.73" OLED Display | 128 x 88 | 10-pin | 4 wire SPI | SH1107 | |
0.75" OLED Display | 128x128 | 15-pin | I2C/4 wire SPI | SSD1327 | |
0.96" OLED Display | 128X64 | 30-pin | I2C/4 wire SPI | SSD1315 | |
0.91" OLED Display | 128x32 | 14-pin | I2C | SSD1306 | |
1.3” OLED Display | 128X64 | 30-pin | Parallel/I2C/SPI | SH1106 | |
1.54" OLED Display | 128X64 | 24-pin | Parallel/I2C/SPI | SPD0301 |
