Product Description

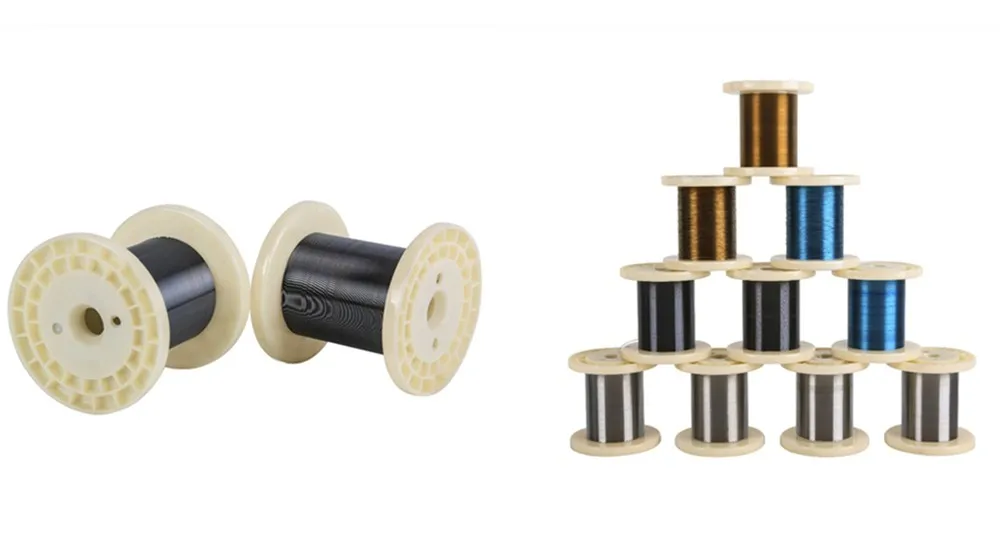

Nitinol Wire is the most mature form of this unique superelastic and shape memory alloy, being commercialized in the mid 1980's. It is available in many different sizes, alloys and finishes. And, shape memory or superelastic forms are both offered. Niti shape memory alloys are gaining increasing use in the medical device industry for Nitinol catheter stents, guidewires and other critical applications.
\t
Product Name
\t
Nitinol Wire
\t
Standard
\t
ASTM F2603, Q/XB1516.1, Q/XB1516.2
\t
Dimension
\t
Dia. ≥ 0.1 mm
\t
Alloys
\t
NiTi, Cu NiTi, Fe NiTi
\t
Types
\t
Superelastic and Shape Memory Available
\t
Surface Treatment
\t
Natural Oxide, Pickled/Etched, Centerless Ground and Mechanically-cleaned
\t
Condition
\t
As Cold-Worked, Straight Strain Annealed and Shape Set Annealed.
\t
Certification
\t
Transformed Temperatures, Tensile Properties, Chemical Composition and Customer Specific Requirements
Products Show

Mechanical Properties

\t
Dimension
mm
\t
UTS
σb MPa (min.)
\t
Elongation
δ % (min)
\t
Upper Plateau Stress
σload MPa (min.)
\t
Active Af
℃
\t
0.1 ~ 0.3
\t
1100
\t
15
\t
480
\t

- 20 ~ 100 ℃
\t
0.3 ~ 0.6
\t
920
\t
15
\t
440
\t
0.6 ~ 6.0
\t
850
\t
15
\t
440

Tolerance

\t
Nominal Diameter in mm
\t
Permissible Variation from Nominal in mm
\t
6.00 ~ 2.00
\t
± 0.020
\t
2.00 ~ 1.00
\t
± 0.015
\t
1.00 ~ 0.35
\t
± 0.010
\t
0.35 ~ 0.26
\t
± 0.007
\t
0.26 ~ 0.15
\t
± 0.005
\t
0.15 ~ 0.10
\t
± 0.004
Applications

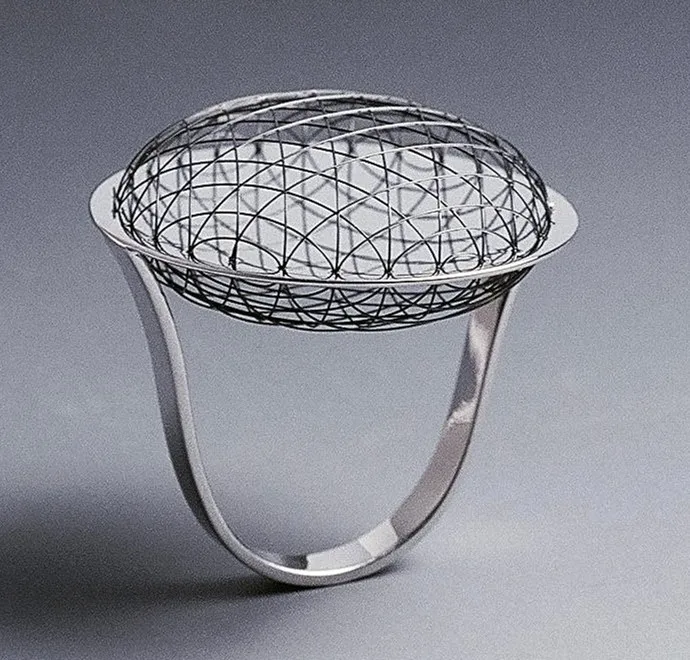

JEWELRY

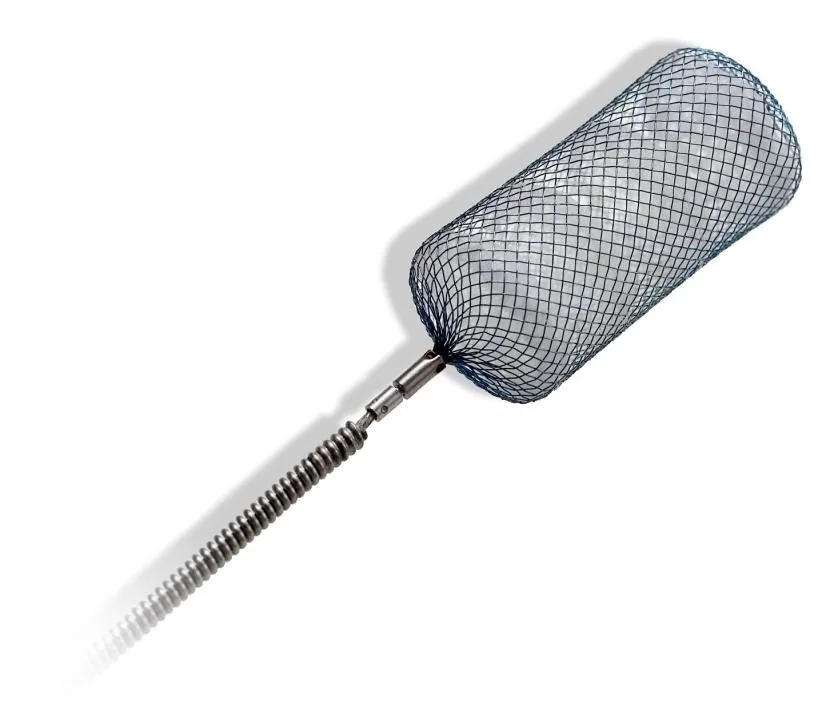

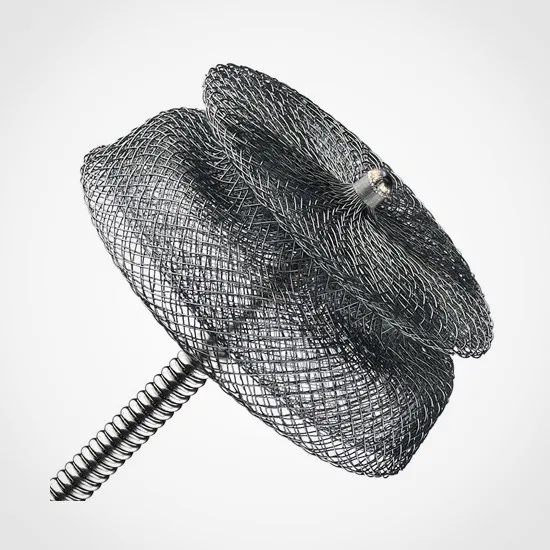

STENTS
GLASSES FRAME


Nitinol Wire and Rod are widly used for medical and other industries. Such as eyeglass frames, cellular phone antennae, bra underwire, implantable devices, bone staples, vascular stents, guide wires, stents orthodontic arches, implantable active devices, surgical tools,and thermostats coffeepots etc.

Related Products

NITINOL SHEET

THK ≥ 0.1 x 300 x 1000 mm

NITINOL TUBE

OD ≥ 0.3 mm

NITINOL ROD

DIA ≥ 6.0 mm

NTINOL SPRINGS

DIA ≥ 0.2 mm

MOLYBDENUM TUBE

OD ≥ 4.0 mm

TUNGSTEN TUBE

OD ≥ 4.0 mm

Our Company

PLANTS

7 workshops occupied 21,000 m2. Our plant is near freeway, train station and airport.

WORKSHOP

4 complete production lines, and two advanced facilities is undering erection.
OFFICE BIULDING

2 office buildings occupied 4,380 m2.

TEAM

72 employees are at your service sincerelly!
Packing & Delivery

Steel Pallet + Plywood Case
Fumigated Wooden Pallet
Plywood Case + Plastic/ Moistureproof Paper
Plywood Case + Vacuumed Plastic Bag
Carton + (Vacuumed) Plastic Bag

Transport by sea (Large Quantity)
Transport by air (Urgent Indent )
Transport by train (Asia and East Europe)
Transport by land (Russia, Middle Asia)
Transport by Express (FedEx, DHL, TNT, UPS etc.)

Our Certifications

Advantages

More than 16 years experience in the processing of nitinol, tungsten and molybdenum materials and products.
The complete production line makes us control the quality from beginning to finishing.
We have excellent research team that 5 engineers can always supply the exact solution for you.
The testing items we do covered all properties you like.
Customized sizes are available.

Customer Photo

Nitinol Materials for Medical Application

Joe is from US. He is the scientist of nitinol. He signed the exclusive supplier contract with us after his visiting!
Now, he is one of our big customers who use our products in American market!

Nitinol Wire & Plate for glasses frame

Philippe is a friend from UK. He visited us for inspection of the order nitinol wires and sheets. Congratulations that our products were 100% qualified.

New Materials Cu NiTi & Fe NiTi

Chandan is from India. He came to found materials for their new products development. And we supplied fine Cu NiTi and Fe NiTi wire to them in last 2 years.

FAQ

Q: Are you a trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. It is 15-30 days to do new batch.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we can offer the samples for free and freight afforded by buyer.

Q: What is your terms of payment ?
A: T/T, L/C

     For stocks, 100% in advance;

     For futures delivery, 30% in advance, the balance before shipping.


Please don't hesitate to  contac us if you like to know more. Thank you!

Keywords: Nitinol Wire Mesh
