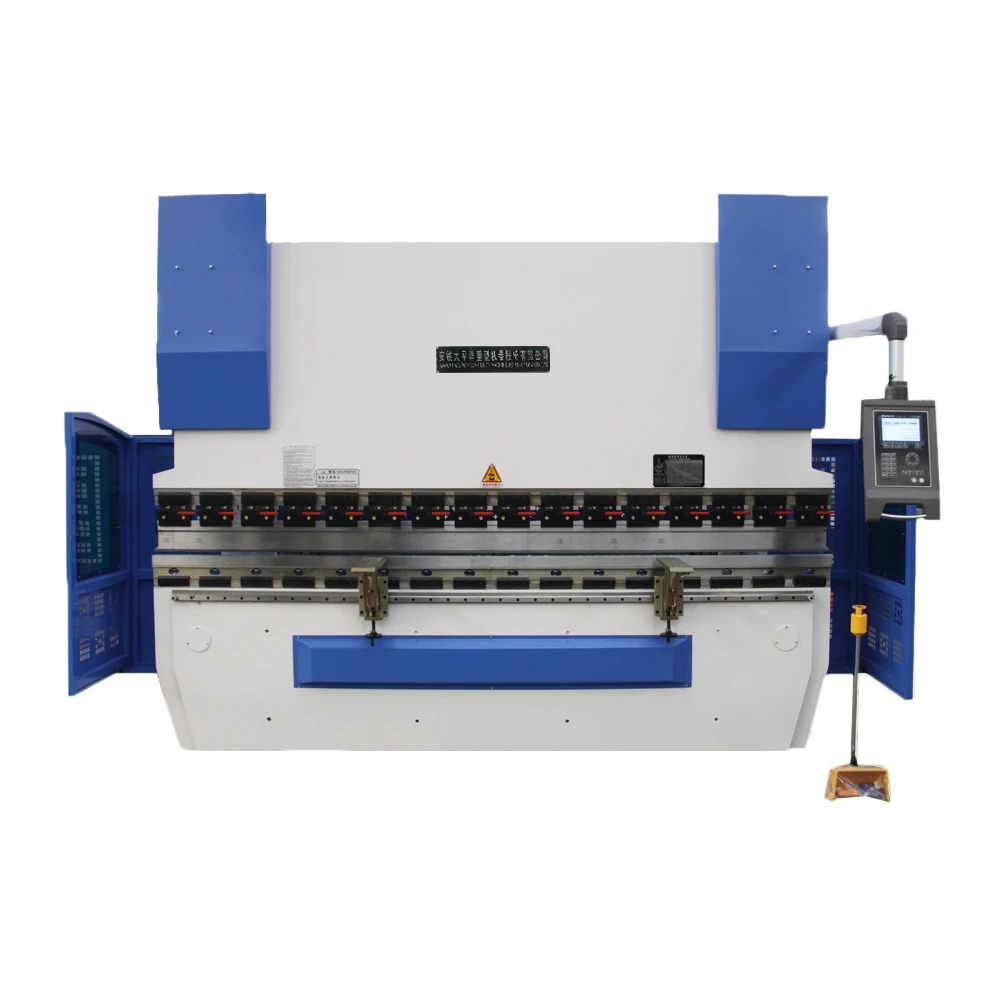

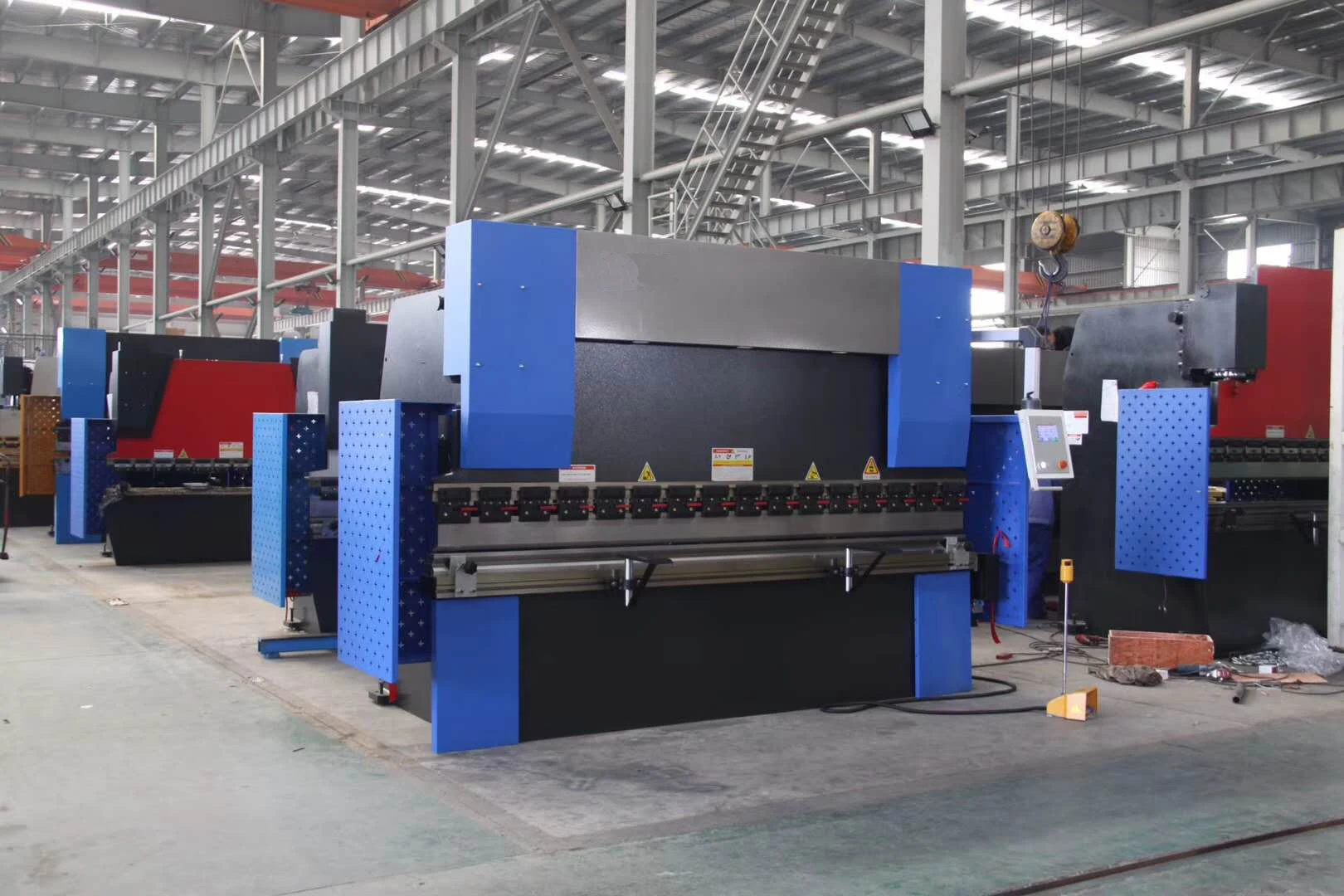

2 Axis дистанционное управление гидравлический листогибочный пресс 120 тонный nc пресс-break стальная пластина фрикционный wc67y гидравлическая гибочная

Product Application

1. All-steel welded structure and stress elimination by vibration with high machine strength and good rigidness.
2. Hydraulic upper transmission, which is stable and reliable.
3. Mechanical stopper and torsion axis synchronization with high accuracy.
4. Electric adjustments for Backgauge distance and ram stroke, manual adjustment, digital dispaly.
5. The upper die is equipped with deflection compensation machanism.2 Axis Control Hydraulic Press Brake 120 Ton hydraulic nc press break steel plate brake press wc67y hydraulic bending machine

Main Features

1) Control system: Italian ESA, Netherland DELEM, or Swiss CYBELEC.
2) Servo motor and drive: Japannese YASKAWA.
3) Hydraulic system: HOERBIGER Company or Germany BOSCH
4) Ball bearing lead screw: Taiwan HIWIN
5) Straight-line guide: Taiwan HIWIM

Machine Parts

Name: E21S

mm/inch, English/Chinese.

X axis(back gauge movement) and Y axis(cylinder strokes) control.

Intelligent positioning, stroke counter, holding time control.

One side positioning, retract function 40 programs saving 25steps/program.

One key backup

Main Features

Name: Straight-line guide
Brand: HIWIN
Original: China taiwan

Machine Parts

Name: Control system
Brand: ESA
Original: Italian

Main Features

Name: Raster ruler
Brand: HEIDENHAIN
Original: Germany
