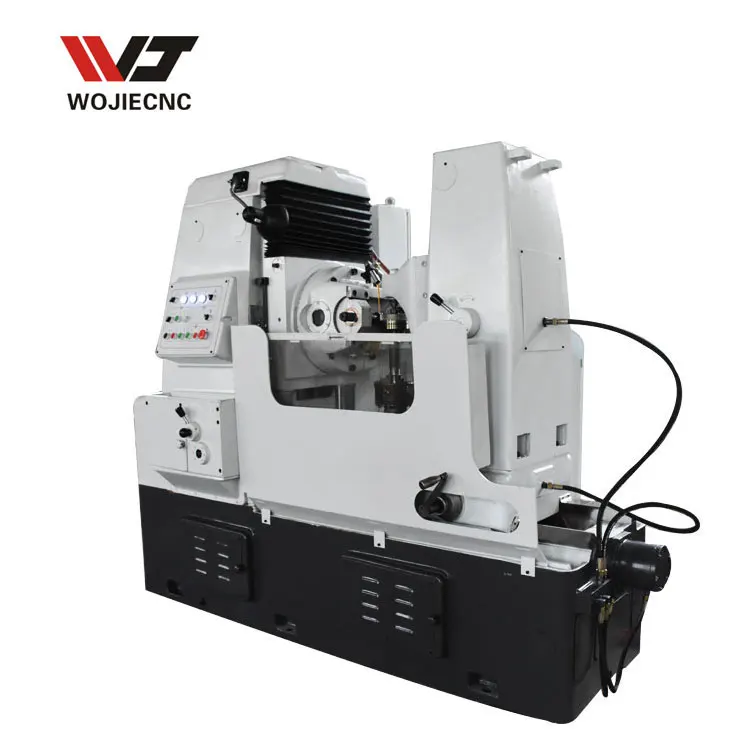

Y3150E Manual small gear hobbing machine for sale
Product Description
The feature of Y3150E gear hobbing machine :
The Y3150E universal gear hobbing machine could produce straight teeth and helical teeth,
cylindrical spur teeth,worm gear,chain wheel and short spline shaft, and this hobbing machine suitable for in bulk and single
production.
cylindrical spur teeth,worm gear,chain wheel and short spline shaft, and this hobbing machine suitable for in bulk and single
production.
Product main technical Specifications:
Main technical parameters | Y3150E | ||
Max working module | steel (mm) | 6 | |
Cast iron(mm) | 8 | ||
Max diameter of workpieces | With rear column (mm) | 350 | |
Without rear column (mm) | 500 | ||
Machining width | 250 mm | ||
Max diameter and length of hob | 160/160mm | ||
The diameter of worktable | 510mm | ||
Speed of main spindle | Grade | 9 | |
Range (r/min) | 40-250RPM | ||
maximum axial movement of hob | 55mm | ||
Main motor power | 4kw/1500rpm | ||
Main spindle taper hole | Morse No.5 | ||
The distance from hob center to worktable | 200-535mm | ||
The distance from hob center to worktable center | 20-330mm | ||
The distance from out support end face to worktable surface | 380-700mm | ||
Worktable hole | 80mm | ||
Max.swing over cross slide | 60° | ||
Diameter of cutter arbor | 22 27 32 mm | ||
Workpiece mandrel diameter | 30mm | ||
Machine size | 2450*1272*1790mm | ||
Gross weight/net weight | 5300/4500 kg | ||
We welcome customized machine , could provide tangential cutter head,processing the worm wheel as the tangential feeding .
1.Convenient hydraulic powed structure reduces the non-cutting time as well as the times to use the cutting tools .
2.Raised height for vertical column and increased stroke:The vertical column is made higher(180/130mm increased axial stroke in head slide)
3.High precision and long service life:The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance,enabing long service life and steady accuracy.
1.Convenient hydraulic powed structure reduces the non-cutting time as well as the times to use the cutting tools .
2.Raised height for vertical column and increased stroke:The vertical column is made higher(180/130mm increased axial stroke in head slide)
3.High precision and long service life:The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance,enabing long service life and steady accuracy.
Detailed Images
Related Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to
you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be
some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can
place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to
you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be
some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can
place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
