10x зум Hd автослежение PTZ камера видео аудио конференц-камера с IP
- Категории: Скрытого видеонаблюдения ip-камеры ONVIF камера >>>
- Поставщик: Sz,Tenveo,Video,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

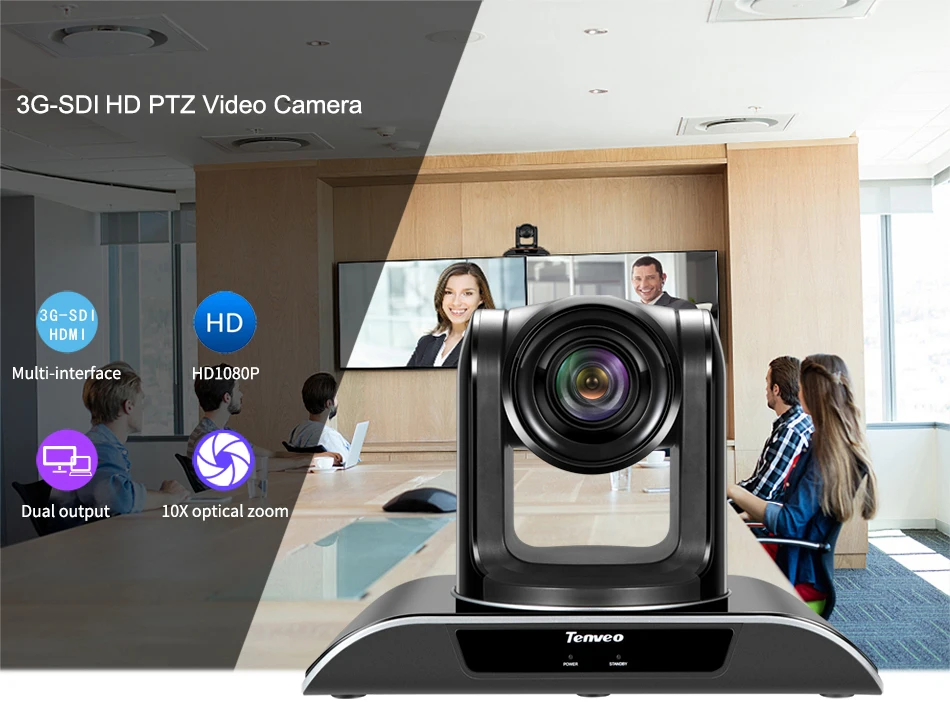

10x Zoom Hd Auto Tracking PTZ Camera Video Audio Conference cam With IP 3G-SDI
Product Description
Model No. | TEVO-VHD10N |
Image Sensor | 1/3 inch Exmor CMOS |
Effective pixel | 2.38 mega pixel(16:9) |
Horizontal Resolution | 1080P30/25fps, 720P60/50 |
Focal length | F=5.0mm(wide)-50.0(tele) |
Signal standard | NTSC/PAL |
Zoom | 10x zoom |
Horizontal view angle | Near-end 51.3°~Far-end 4.64° |
Gain control | Auto/manual |
Focus | Auto/manual |
SN ratio | ≥50dB |
Shutter speed | 1/1 sec to 1/10000s (22 steps) |
Preset position | Remote-controller support 9 presets PELCO Control Protocol supports 256 presets |
Pan/Tilt movement range | Pan: 340°(max speed 80°/S), Tilt: 120°(max speed 60°/S) |
Control terminal | RS-232, RS485 |
Control Protocol | VISCA, PELCO-D, PELCO-P (RS-232, RS485) |
Video output | 3G-SDI, HDMI |
Noise Reduction | 2D/3D |
Baud rate | 2400/4800/9600/19200bps |
Decoder | Built-in |
Address Se | 1~256 |
Accessories | DC 12V Power adaptor, IR remote control, Ceiling brackets & screws, Manual, RS-232Ccable |
1.Main features of the webcam conference
10x optical zoom
Crystal clear HD1080P image quality
Accurate,smooth and silent PTZ Movement
3G-SDI,HDMI Optional)Video Output
Preset: 9 via IR remote setting (256 via RS232)
Wide field of view with no video distortion
1/3 inch high quality, 2.38MP (16:9) CMOS sensor
2D and 3D NR for best video quality in different lighting conditions
Support Visca, Pelco-P, and Pelco-D protocol, RS232/RS485 Camera Control
2.Main details of the webcam conference:
3. Main application of the webcam conference
Packaging & Shipping
1.For sample, in stock,same day shipping,For big orders of sd 18 xxx videos camera, we ship within 3 business days after receiving the payment.
2.We can ship via your shipping account (DHL/FEDEX/UPS/TNT/EMS or others) as your instruction.Or ship with our account we have big discount with following express company:
Company Information
Certifications
1.All of our audio conference speakerphone and HD video conference cameraare compliant with CE, FCC and Rosh standards:
Why choose us?
1. The MOQ is 1 unit.
2. We accept OEM, ODM orders.
3.We ship the sample order out as soon as we receive the payment.
4. 3 years warranty time. Low Repair Rate is our best reward during the past days.
5. After Sale System which makes to solve the problem quickly once met problems.
6. 14 years professional video conference supplier with superior quality & competitive prices.
7. Our QS department checks the video conference camera and speakerphone one by one strictly before sending out.
FAQ
Q:What kind of camera should I use?
A:Most laptops and monitors come with built-in cameras—these work great for Tenveo software.For meeting room spaces, we have video conferencing cameras and Omnidirectional microphones that are specifically designed for small huddle rooms, conference and boardrooms,and large auditorium spaces.You can check our service guide for more information on different meeting room systems.
Q:Is it easy to operation?
A:Yes, it is easy to install, plug and play.
Q:Can I bring more than one person into a call at the same time?
A:Yes. We currently offer group calling for up to 500 different participants,which could be 500 people dialing in from their laptops ,pad or mobile phones,500 different video conferencing systems full of people or some mix of individuals and video conferencing systems.
Q:What is the resolution of your cameras?
A:We have 1920x1080p/60fps progressively output, and 1080p/30fps also 720p/30fps.
Q:What is the Video Connector?
A:There are USB 2.0, USB3.0,HDMI,HD-SDI,DVI,YPBPR and CVBS Video output.
Q:How many time zoom?
A:Support fixed focus, 3X 10X, 20X, 30X optical zoom.
Q:How to control this Camera?
A:There are RS232, RS485 PTZ Control, and also support VISCA, PELCO-P, PELCO-D to control through your Codec or PC through RS232, and support IR remote control.
Q:Which kind of software compatible with this Camera?
A:It’s compatible with PolyCom, Blue Jeans, Cisco, Vsee, GoToMeeting, Radvision, SeeVogh,WebEx, easy meeting, Vidtel and working with Microsoft Lync Software,and ZOOM.US, SKYPE, VIDYO Etc.
