Product Description
King Pro Series- the best rental led cabinet for concertns, trade show, exhibitions
Specification
Model No. | King pro-I2.6 | King pro-I2.98 | King pro-I3.91 | King pro-O3.91 | |||
Pixel pitch | 2.604mm | 2.98mm | 3.91mm | 3.91mm | |||
LED Type | SMD 1515 | SMD2121 | SMD2121 | SMD1921 | |||
Pixel Density | 147475 pixel/㎡ | 112896 pixel/㎡ | 65410 pixel/㎡ | 65410 pixel/㎡ | |||
Scan | 1/32 scan | 1/28 scan | 1/16 scan | 1/16 scan | |||
Cabinet Material | Die casting aluminum | ||||||
Cabinet Dimension (W*H*D) | 500x500x85mm/19.7”*19.7”*3.4” | ||||||
Cabinet Wight | 8kg | ||||||
Cabinet Resolution | 192*192dots | 168*168dots | 128*128dots | 128*128dots | |||
Max power Consumption | 800w/㎡ | ||||||
Average power Consumption | 270w/㎡ | ||||||
Brightness | 1200 cd/㎡ | 1200 cd/㎡ | 1200cd/㎡ | 5000cd/㎡ | |||
Viewing Angle | H: 120° V:120° | ||||||
Refresh Rate | 5580Hz | ||||||
Gray Scale | 16bits | ||||||
High contrast | 4000:1 | ||||||
IP Rating | IP43 | IP65 | |||||
Operating Temperature | -20℃~ +60 ℃ | ||||||
Lifetime | 100,000hrs | ||||||
King pro series features: 1. back cover unqiue 2. curved lock 3. left and right switchable modules 4. front maintenance for outdoor application
The left and right magnetic module are switchable
1.Power supply and receiving card are installed in the box.
2.PCB board design instead of the flat wire connection among led modules, power supply and receiving card to eliminate the signal connection problems
2.PCB board design instead of the flat wire connection among led modules, power supply and receiving card to eliminate the signal connection problems
Corner protection design is avoiding any hits for modules’ corner, 100% protect LEDs.
Supports one person fast installation to save 50% assembling and dissembling time and reduce labor cost
Unique curved lock brings higher flatness and makes led displays a complete screen. Supports +5, -5°
Unique structure brings different shapes to meet customers’ various requirements

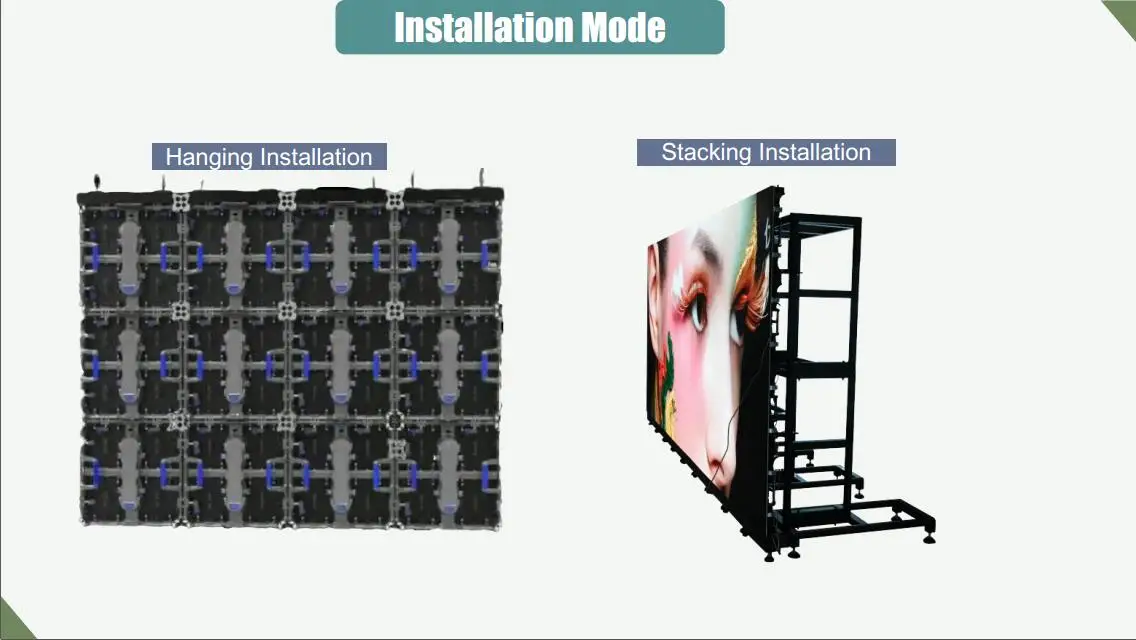

Hanging Installation and stacking Installation
FAQ
FAQ:
Q1. What's fast delivery time?
The production can be controlled as fast as you need from 7 days to 25 days.
Q2. Can I just wait for the items at my door and no need to do others?
Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.
Q3. The display will come to me in parts?and i have to install each part together?
Yes, but it's quite easy. We will send you the instruction and also we can remote to help you to adjust the software, everything.
Q4. What's the function of video processor?
It can transfer the video source to make the screen performance more clear. Sometimes there has HD camera, so that the performance can show themselves on the screen as well. Video processor can control stage lights together.
Q5. How can I install the led display?
There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be
provided.
The production can be controlled as fast as you need from 7 days to 25 days.
Q2. Can I just wait for the items at my door and no need to do others?
Yes, items can be delivery to your specific address and you just wait for receiving the items at your door and nothing to do.
Q3. The display will come to me in parts?and i have to install each part together?
Yes, but it's quite easy. We will send you the instruction and also we can remote to help you to adjust the software, everything.
Q4. What's the function of video processor?
It can transfer the video source to make the screen performance more clear. Sometimes there has HD camera, so that the performance can show themselves on the screen as well. Video processor can control stage lights together.
Q5. How can I install the led display?
There are two options, one is hanging the display, the other is standing the display. Hanging bars and back stacking will be
provided.
