200 каналов портативная рация 15 Вт самая мощная дальнего действия 20 км
- Категории: Walkie Talkie >>>
- Поставщик: Fujian,Quansheng,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

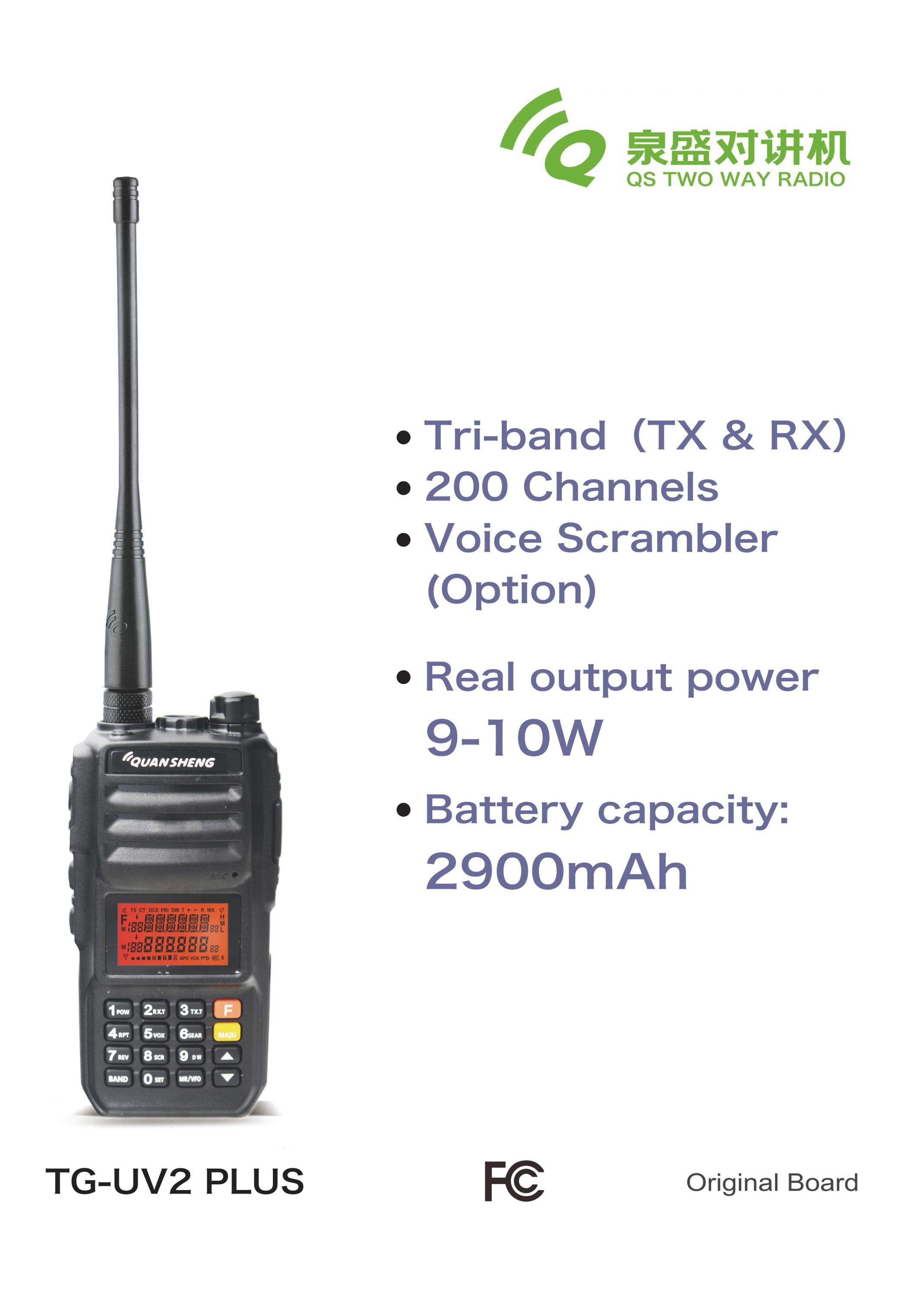

25W 200 Channels Talkie Walkie 15 Watt Most Powerful Long Range Walkie Talkie 20km 15 km 10km RangeQuanSheng TG-UV2 plus
01. Squelch level
02. H(High), M(Medium), L(Low) output power selective
03. Double frequency, double channel display of the LCD
04. Built-in VOX function
05. Dual-watch operation
06. Respectively receive/transmit CTCSS/DCS code
07. Repeater shift direction set
08. Auto code search
09. Reverse frequency function
10. Voice Scrambler (Optional)
11. Multi channel steps
12. Frequency deviation setting
13. Busy channel lock
14. Time-out-timer(TOT)
15. Channel, channel-frequency, channel-name display
16. Up/down scan function / Priority scan
17. Wide/narrow bandwidth
18. 1750Hz call tone
19. Cross-band receiving/transmitting
20. 200 channels
21. Channel name edit / Channel Store
22. FM Radio(88-108MHz)
23. PC programmable
24. Main/sub channel display shift
25. Channel scan list additive
GENERAL
Frequency Range
(Choose One)
Dual Band: VHF: 136-174MHz(RX/TX)
UHF: 350-390MHz(RX/TX)
UHF: 400-470MHz(RX/TX)
UHF: 470-520MHz(RX)
(Choose Two)
Dual Band: VHF:136-174MHz(RX/TX)
UHF: 245-246MHz(RX/TX)
(Choose Three)
Dual Band: UHF: 420-490MHz(RX/TX)
UHF: 500-512MHz(RX/TX)
Channel 200
Channel Spacing 25 /12.5KHz
Operating Voltage 7.2V
Operating Temperature -25°C~+65°C
Frequency Stability ±2.5ppm
Battery Standard: 2900mAh( Li-ion)
Dimensions 125 X 62X 45mm
Weight 261.5g
Transmitter
Output Power 10W
Modulation 16KΦF3E/11KΦF3E
Maximum Deviation ≤5.0KHz(W)
Spurious Emission ≤65dB
Audio Distortion ≤5%
Receiver
Sensitivity ≤0.25/0.28μV
Adjacent Channel Selectivity 70/50dB
Intermodulation 60dB
Spurious Response Rejection 70dB
S/N 43/38dB
Rated Audio Power Output ≤0.5W
Rated Audio Distortion ≤5%
QuanSheng Electronics
is one of the lead manufacturer of handheld radios
Top ten famous handheld radio brand in China
Design & manufacture 2-way radio for 20 years,
With ISO, CE, FCC, and Rohs,
Taking 30,000 square meters,

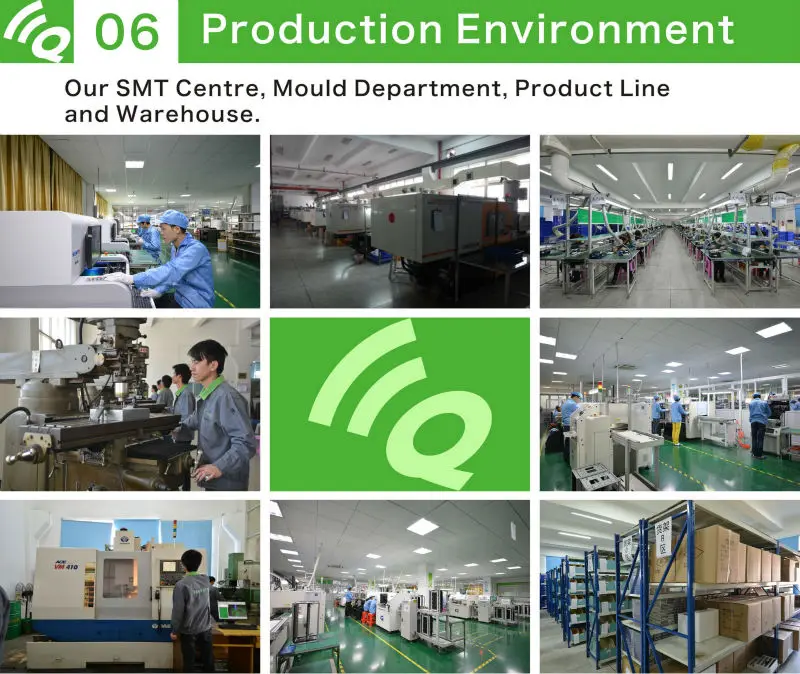

with 500 people, 7 product line, and 9 SMT lines.
Export 1,000,000 pcs radios to 60 countries each year.
