Электронный балласт hps 600 Вт для ламп 150 Вт/250 Вт/315 Вт/400 Вт/600 Вт/630 Вт/750 Вт/1000 HPS MH

Описание и отзывы

Характеристики

HPS Ballast 600W Dimmable 240V 600W DE and 600W HPS/MH Lamp

Key Features

l 208V/220V/230V/240V sensing input, 50/60Hz

l Easy installation, low profile

l Reliability quality and good performance

l Soft start and Random Start

l Microchip Inside for precise control

l Constantly output power when the voltage is fluctuating

l High Frequency, fully compatible with SE 600W HPS/MH lamps

l Multi-protections: Open/Short circuit protection, High/Low voltage protection, Thermal protection, Hot-start protection

l Prolong lifetime of lamp at least 10%

l Energy saving up to 30%-50% compared with MAGNETIC BALLASTS

l Running 10%-15% than other digital electronic ballasts in the market

l Lower EMI/IF compared with other electronic ballasts

l 0.99 Power Factor, and less than 10% Total Harmonic Distortion

l 1 year factory warranty

l UL, cUL, CE, RoHS certificates

l 1.0m input power cord

l Remote Control by 0-10V controller Optional





Performance Description
Model		HLB-600SS-240V-ECO
Rated Power		600W
Input	Voltage Range	180Vac-265Vac
	Rated Voltage	208/220/230/240Vac
	Current	2.68A@240V
	Frequency	50~60Hz
	Power	632W±5%
	Power Factor	≥0.99
	THD	<10%
Output	Frequency Type	High Frequency Sine Wave
	Frequency	>60k Hz
	Power	600W±5%
	Current Crest Factor	<1.5
	Open Circuit Voltage	<300V
	Ignition Voltage	3.5~5kV

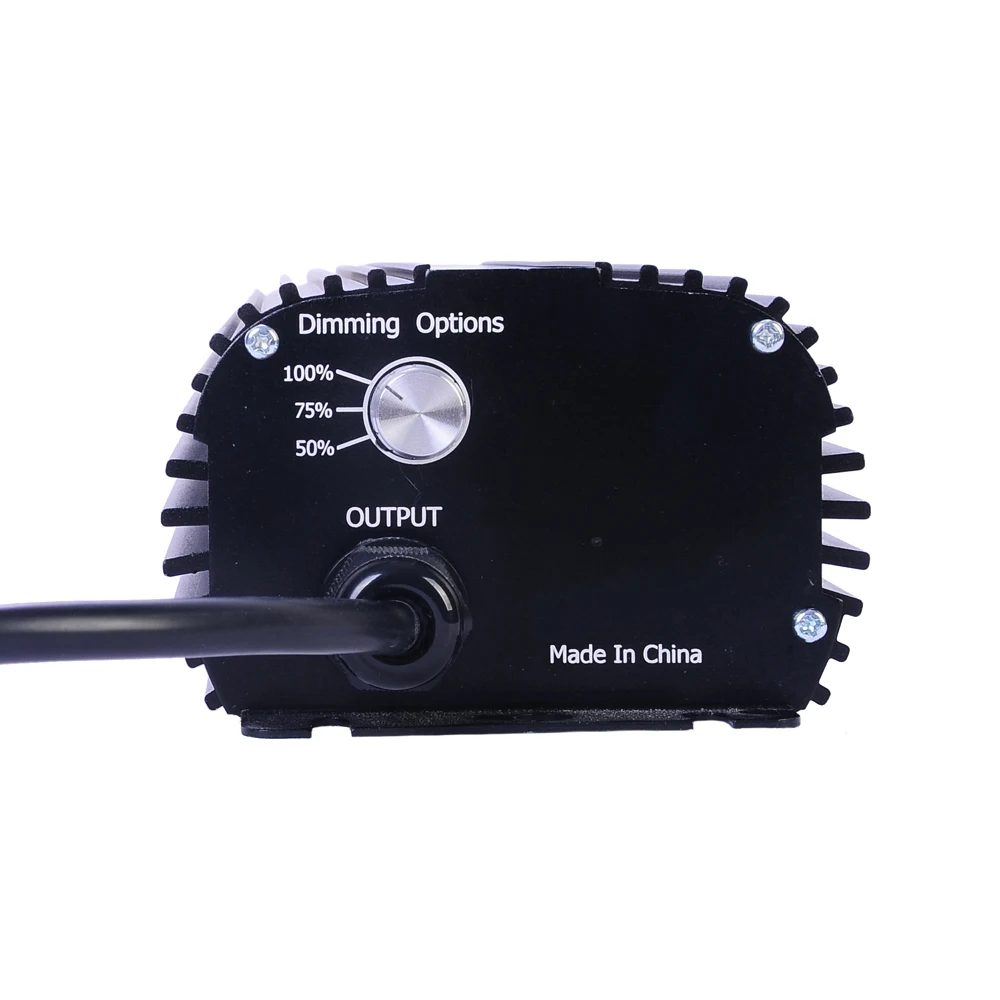

	Dimming Function	50%-75%-100%(0-10V/RS485 optional)
	Required Lamp Voltage	110V
	Efficiency(@240Vac)	>93%
Protection	Short Circuit	Yes
	Open Circuit	Yes
	Ignition Failure	Yes
	End of Lamp Life(EOL)	Yes
	Overheated	Yes
	Soft-start	Yes
	Over Voltage	Yes
Lamp	Lamp Type	600W HPS/MH
	Lamp Power	600W
	Lamp Voltage	110V
	Distance to Ballast	<15m(50FT)
Physical Description
Dimension(L*W*H) mm		288x112x72
Net Weight		2.5kg(cord included)
Ventilation		No
Waterproof Grade		IP30
Working Humidity		10%~90%
Operating Temperature Range		-30℃~+50℃
Max Case Temperature		<90℃
Internal Temperature Rise		<30℃
Certificate and Standard
Certificate		CE, RoHS, UL, cUL
Safety Regulation		IEC 61347
Quality Standard		ISO9001
Environmental Standard		ISO14001



a: Gift Box   b: Master Carton:Standard Export Carton  c: OEM packing is available
