Мотор для поворотных ворот в стиле кронштейна оператор грузовых тяжелого типа 350

Описание и отзывы

Характеристики

♦ Super September- We are door and door opener factory in Guangdong. Our products include hospital operation room door, clean room door, x-ray proof door/window, sandwiched steel panel, automatic/manual roller shutter door (aluminum/steel/pvc), sectional garage door (steel/aluminum+glass), fire proof roller shutter/window, steel fire proof door, aluminum door, steel gate and related entrance guard systems (opener, motor, etc). Welcome to contact us if any need.











Product Pictures

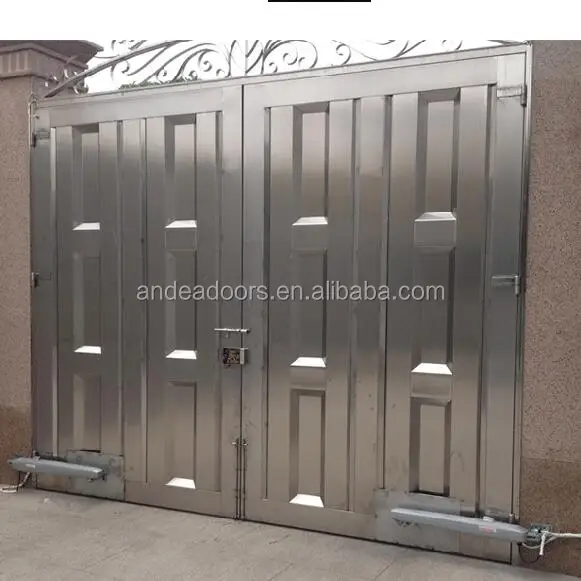

Swing Gate Motor

Arm style swing gate motor (Max loading=350KG)

Accessories: Loop detector, Remote controls, Keypad & switch, GSM phone control system

This motor need floor be flat.



Item	Specification
Working power (Vac)	220 ~ 240Vac @ 50/60 Hz
Motor voltage (Vdc)	24
Input power (W)	100
Ambient temperature range (℃)	-25 ~ +50
Max weight for single gate leaf (kg)	350
Max width for single gate leaf (m)	1.8 2.5 (with electric lock)
Max open angle (°)	120
Protection level (IP)	X4
Max travel distance (mm)	320
Working period	Max 50 continuous working cycles for frequent operation
Weight for per gear motor (kg)	6











We also have

Swing gate motor - wheel style gate motor



Wheel style swing gate motor  (loading =600KG & 800KG)

Max opening angle: 180 degree.

Working temperature: -25℃ to 55℃

This motor need floor be flat.













Any need, please feel free to send us an email per alibaba system, you will get our reply within 12 hours. You are also welcomed to talk with us now.



    Yes, we are door factory with over 11 years experience in producing the following doors. Our products include,

    1) Door and window

      A. door for hospital: operating room door, swing hermetic door, X-ray proof door, MRI door, HPL door;

      B. door for clean room: swing clean room door, sliding clean room door, PVC fast rolling door, PVC                          door/window, aluminum door/window, steel door/window (60min fire rated);

      C. door for factory: roller shutter, PVC fast rolling door, industrial sectional door, fire rated door, steel gate;

      D. door for commercial building & house: automatic sliding glass door, manual glass door &window, security             window grill, aluminum roller shutter, grill/PVC roller shutter;

     2) Automatic door opener

     A. sliding glass door opener with sensor, swing room door opener;

     B. sliding metal gate opener, swing metal gate opener;

     C. rolling shutter door opener, sectional garage door opener, tubular motor;

     3) Automatic door system

     ID card, ID card reader, finger print reader, magnetic lock, power supply box, wireless switch;

     4) Raw material for x-ray proof door: lead sheet, copper sheet, BaSo4 sand, lead glass.

2. Do you customize doors?

Yes, we do. Send us details such as size, technical drawing etc. E-catalogue and price list will be supplied.

3. What is your lead time?

5-7 days for door opener, 7-12 days for most of our doors, 15-20 days for X-ray protection doors, 25-30

days for mass production after receipt of deposit.

4. What is the shipping port? Huangpu seaport in Guangzhou, Yantian and Shekou seaports in Shenzhen.

5. What is your MOQ? Door opener: 1 set; Door: 1 set.

6. What is your terms of payment? We accept 50% T/T in advance, 50% T/T before shipment.







Key Words

swing gate motor, swing steel gate opener, electric motor for gate,heavy duty style 350Kg loading gate operator

remote gate motor, arm style gate motor, GSM gate motors
