Best price and good quality Galvanized Steel Wire Rope Car/ Fitness equipment Control Cable

We are a company specialized in the production of zinc-aluminum alloy steel wire rope, plastic steel wire rope, aviation steel wire rope, control line and transmission strip rope.



 7*7

Diameter mm	Min.Breaking Load(kg)			Approx.Weight    (kg/100m)
	Galvanized	SUS 316	SUS 304
0.80 1.00	55 85	45 65	50 75	0.27 0.42
1.20 1.50	120 180	96 150	108 170	0.61 0.95
1.60 1.80 2.00	220 260 310	170 216 260	190 245 290	1.08 1.34 1.65
2.50 3.00 3.50	480 700 920	400 585 796	460 660 900	2.57 3.71 5.05
4.00 5.00 6.00	1200 1870 2700	1014 1620 2300	1150 1800 2500	6.60 10.00 14.40

 1*19

Diameter mm	Min.Breaking Load(kg)			Approx.Weight(kg/100m)
	Galvanized	SUS316	SUS304
0.80	70	50	60	0.32
1.00	105	80	95	0.50
1.20	150	120	140	0.72
1.40	220	160	190	0.98
1.50	250	185	215	1.12
1.60	280	210	245	1.27
1.80	340	265	310	1.61
2.00	425	330	365	2.00
2.50	665	520	570	3.10
3.00	850	660	730	4.48
3.50	1100	860	950	6.00
4.00	1400	1090	1200	7.90
5.00	2180	1700	1880	12.50
6.00	3150	2050	2700	18.10



 7*19



Diameter mm	Min.Breaking Load(kg)			Approx.Weight(kg/100m)
	Galvanized	SUS316	SUS304
1.50	200	130	160	0.95
1.60	230	150	180	1.08
2.00	360	231	280	1.68
2.50	560	390	435	2.63
3.00	810	565	625	3.78
3.50	1100	750	830	5.28
4.00	1275	970	1100	6.71
5.00	2100	1520	1700	10.50
6.00	2950	2200	2450	15.20



  8x7+1x19

Diameter mm	Min.Breaking Load(kg)			Approx.Weight(kg/100m)
1.5	200			0.95
1.8	280			1.34
2.0	350			1.65

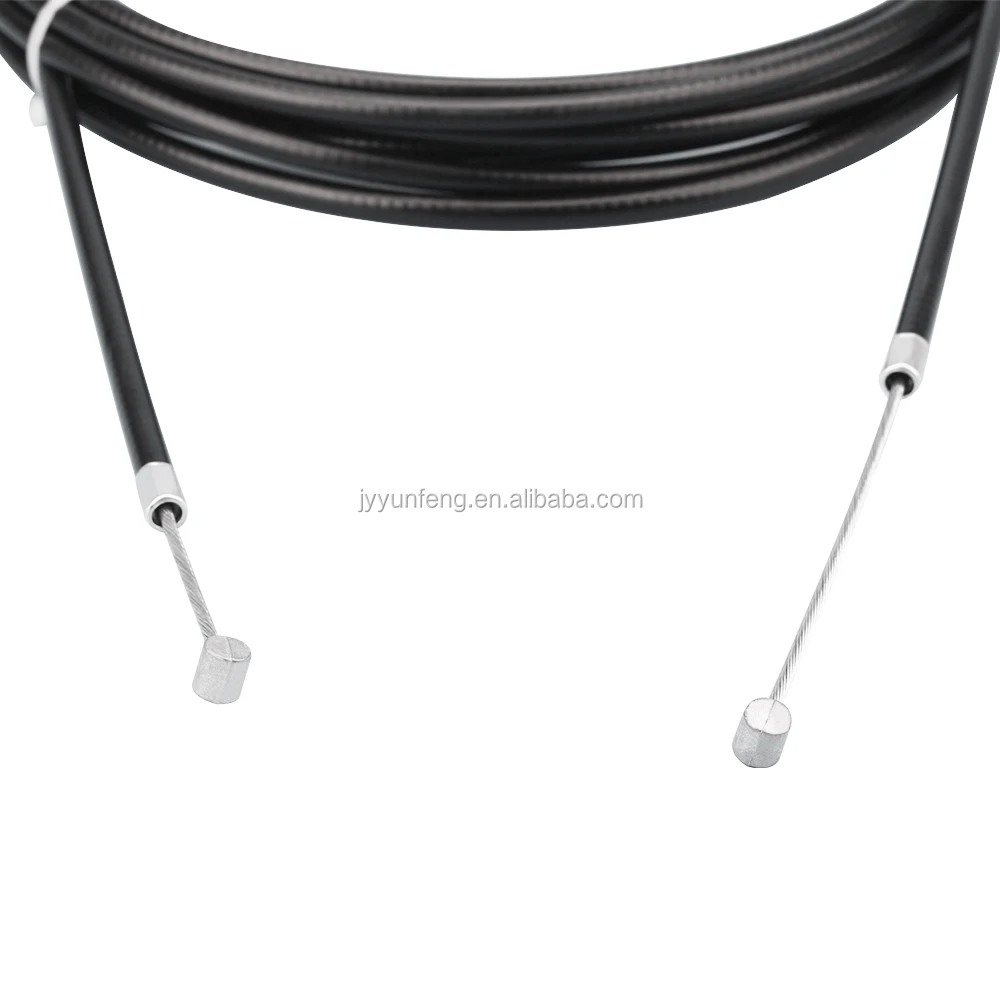

It has wide range of application inside the vehicle such as break,gear,window,rear mirror,gas pedal,etc.It can also be applied to the control system on machinery and electronic device.





The wire rope can be coated by extrusion method with various materials such as PA,PP,PE,PVC,etc.According to customers’ requirements of the meterial,the color and the final rope diameter.



















FAQ:

Q: Manufacturer or Trader?
A: We are manufacturer in wire industry for more than 20 years.

Q: Producing Capacity?
A: The producing capacity totally is 9, 000 tons per month. The producing capacity of this product is 1,500 tons per month.

Q: Main Market?
A: Our main market is foreign customers. 80% of the products are for exporting. The main countries are Japan, South Korea, South Asian area, Europe, America, Canada, and South America etc.

Q: What information should I provide when inquiring?
A: The diameter before pvc coating; after pvc coating, the requirement of the core wire like zinc coating, tensile strength, packing, colour

Q: What is the MOQ?
A: For quality checking, we accept small quantity order like one coil. For normal cooperation, we prefer FCL container quantity to ensure the safety of goods in transportation.

Q: What is the payment term?
A: T/T; L/C; D/P etc

Q: Free sample available?
A: Yes. Free sample within 2kg is available

Q: Third Party Inspection available?
A: Yes, available. The charges are on the buyer.
