Промышленная сушилка для микроволновой печи/Сушильная машина

 Microwave dryer is mainly used to dehydrate and dry agricultural and sideline products, health products, food, medicinal herbs, fruits and vegetables, chemical raw materials, heat-sensitive wood .

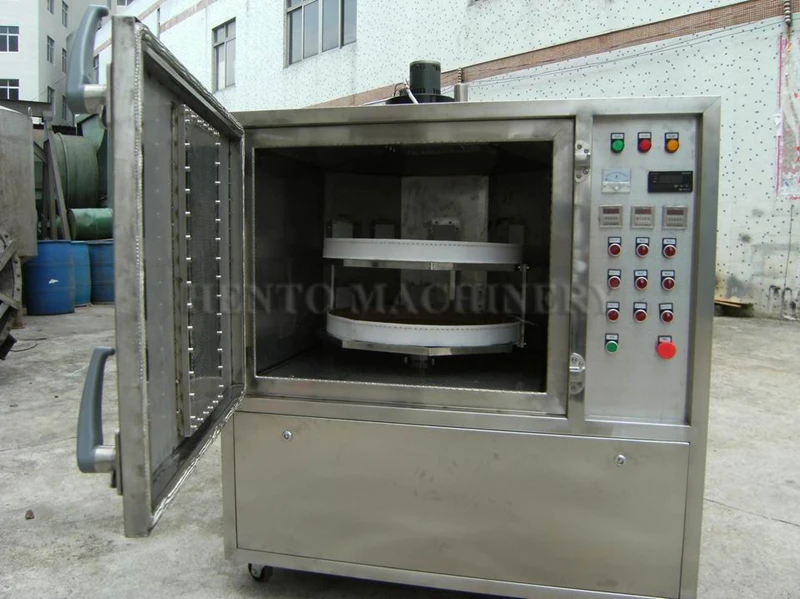

Design Structure:

All parts of equipment are made of high quality electric components. It use4 pieces of magnetrons which is original Korea Samsung [model OM75P] (rated power 1050 w), because the magnetron use the alumina ceramic sealed nozzle, make it have the features: high temperature resistance, high efficiency, strong ability to resist load, long life and reliable operation stability. (more than 5000 hours, magnetron cooling fan was imported from Japan).Adopt the overheating protection and special transformer DY - 1000W (high voltage 100KV high quality transformer), adopt the Japan centrifugal fan, air cooled double heat protection device - and most microwave manufacturer uses axial flow fan! Configuration can bear 100KV high voltage capacitor, silicon stack and high reliability and precision electronic circuit design system to make sure the machine microwave output power is more than 3KW (adjustable). The debugging of all electrical parts and mechanical process is stable, reliable, accurate and reasonable to ensure the continuous production!

2. The machinemake by high quality food grade stainless steel wire drawing board, the polyhedron heating chamber (304 # stainless steel 1.5mm), the floor of heating chamber is strengthened to guarantee sustainable weight. Microwave output ia made of teflon plate and special sealing materials, feed mouth is carefully designed phase complementary type, so as to ensure the normal operation of magnetron completely, the output matching performance is superior, the material can be heated more uniform and thoroughly, moreover, also can lengthen the service life of magnetron, transformer and other core components.

3. The frame and outside guarding board are made of full stainless steel material.

4. The design and manufacturing process of the machine strive to be beautiful, practical and reasonable. the equipment enclosure equipped with large opening choke of the door automatic power chain protection functions to avoid microwave leak proof door, also facilitate cleaning and watching, you can use the water to directly wash heating box.Microwave generator and the power part have the exhaust heat cooling device.
5.There are natural air inlet under the heating chamber,wet removal fan is installed on the top of it.
6. The feed mouth of microwave is in the upper of the material.

If you need further information, please contact us freely, we will do our best to cooperate with you.
