Products Description
Maytech electric skateboard bluetooth waterproof remote control with switch harness for remote surfboard
Tested in seawater.
Two control modes:
1. SK (ESK8) mode with brake for electric skateboard;
2. SF (Surfboard) mode with cruise speed control for electric surfboard.
We have the right to update the technical parameters of products without prior notice.
Two control modes:
1. SK (ESK8) mode with brake for electric skateboard;
2. SF (Surfboard) mode with cruise speed control for electric surfboard.
We have the right to update the technical parameters of products without prior notice.
Model No | MTSKR1905WF (V3.0), upgraded waterproof and signal strength |
Waterproof Rank | IP67 with 2 layers nanometer coating |
Control Mode | SF(Surfboard) / SK (ESK8) |
Speed Settings | 3 Adjustable Speed Modes |
RF Mode | Eco and Pro modes for different signal performance: Eco: Most energy-saving; Pro: Strongest signal strength, Best performance, More power consumption. |
Throttle Lock function | With New throttle lock function for safety |
Signal Format | Support Standard PWM (PPM) and UART |
PWM Signal Output Range | 1ms-2ms for throttle no brake in SF mode (Surfboard); 1.5ms-2ms for throttle, 1.5ms-1ms for brake in SK mode (ESK8). |
Power Supply | Recevier Accepts 5V power by ESC built-in BEC or extra 5V power |
Output Signal | Max 3.3V |
Display | Remote and battery voltage, signal strength, throttle and brake percentage, RPM, speed, mileage; Current, temp, Main Battery voltage percentage, etc. (different data source is with different display datas). Different Data source has different tolerance. All data obtained by different data source is for your reference only. |
Control Pump | Yes (Relay Switch) |
Control Light | Yes (Transistor Switch) |
Safety Button | Support |
Cruise Control | With in SF Mode |
Brake | With in SK Mode |
Wireless Charging | Yes |

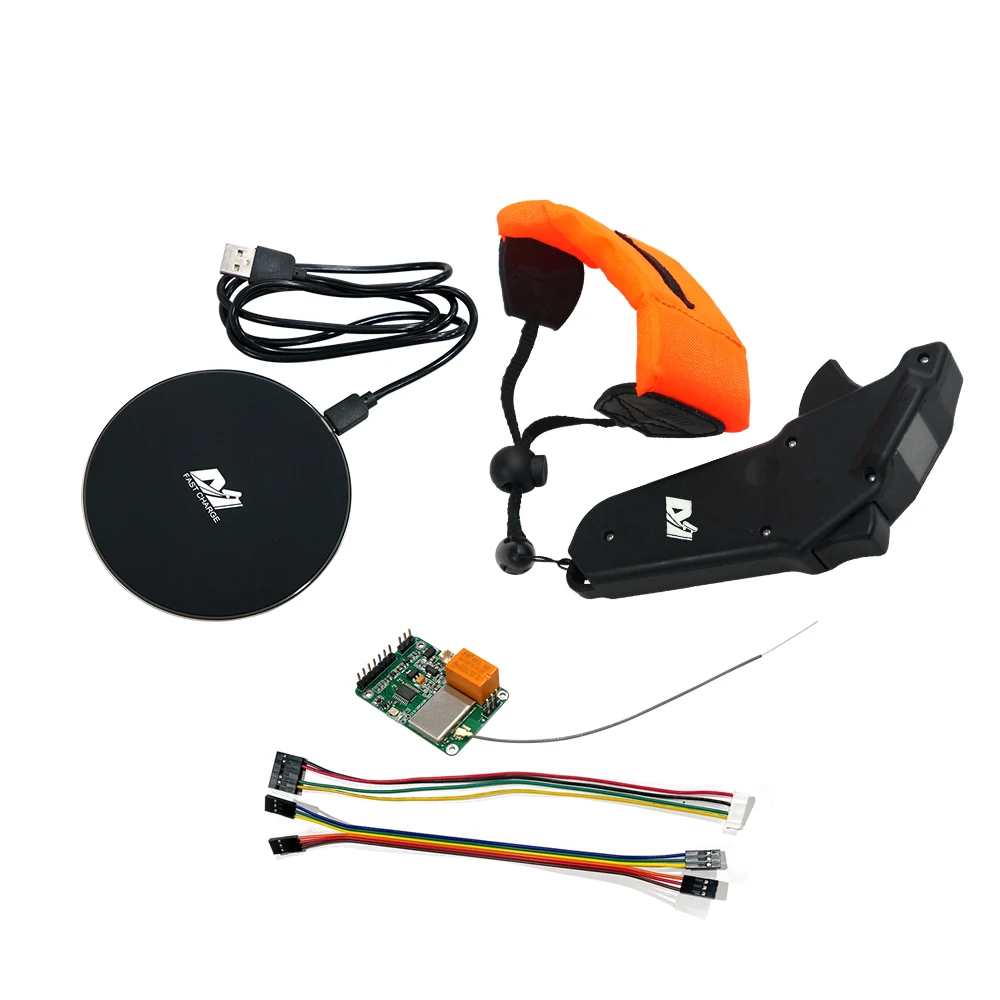

Package Includes | Remote, Receiver, Wireless Charger, Floating wristband |
Compatible Controllers | MTSF300A-WP32 ESC/VESC/ Focbox/ Other PWM ESCs that have same signal output range with the remote. |
Application | Efoil Boost system, electric propulsion, underwater thruster, electric outboard, Esurf, Efoil, electric hydrofoil, electric surfboard, electric skateboard, elongboard, mountainboard, electric paraglider, etc. |
Updated functions:
1. New version updates from April 2024:
● with 3 adjustable speed modes;
● with throttle lock function for safety;
● with Eco and Pro modes for different signal strength;
● compatible to Maytech new 32bit MTSF300A-WP32/MTSF300A-WP32-HV ESC to ready current/votlage/rpm datas, etc;
● add a page to display main battery voltage percentage;
● This version contains functions of old firmware versions V1.32.1 (or V1.31.1) and V2.32.2(or V2.32.1). etc.
● with 3 adjustable speed modes;
● with throttle lock function for safety;
● with Eco and Pro modes for different signal strength;
● compatible to Maytech new 32bit MTSF300A-WP32/MTSF300A-WP32-HV ESC to ready current/votlage/rpm datas, etc;
● add a page to display main battery voltage percentage;
● This version contains functions of old firmware versions V1.32.1 (or V1.31.1) and V2.32.2(or V2.32.1). etc.
2. Display shows more:
Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature.
3. Signal:
Remote and receiver signal strength is enhenced to avoid some signal interference nearby.
4. Waterproof function is updated:
Two layers of nanometer-coating are added to remote PCB and Screen, and they're also double protected by waterproof glue.
5. Remote can wirelessly control two switches:
Remote can control two switches, such as light, pump.
6. Receiver supports double-souce powersupply:
Receiver can accepts 5V/3.3V power .
Besides remote battery and main battery voltage, it can show motor RPM; if use it with VESC controllers, it can show current, speed(esk8 mode), temperature.
3. Signal:
Remote and receiver signal strength is enhenced to avoid some signal interference nearby.
4. Waterproof function is updated:
Two layers of nanometer-coating are added to remote PCB and Screen, and they're also double protected by waterproof glue.
5. Remote can wirelessly control two switches:
Remote can control two switches, such as light, pump.
6. Receiver supports double-souce powersupply:
Receiver can accepts 5V/3.3V power .
