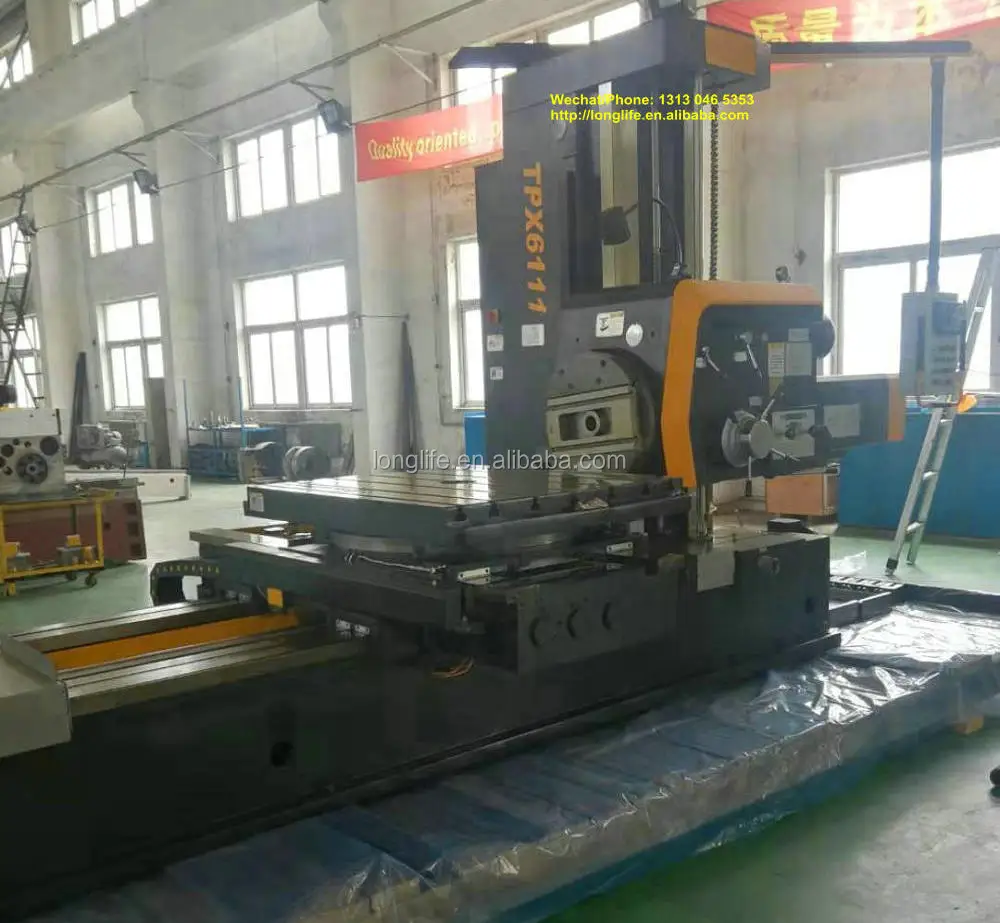

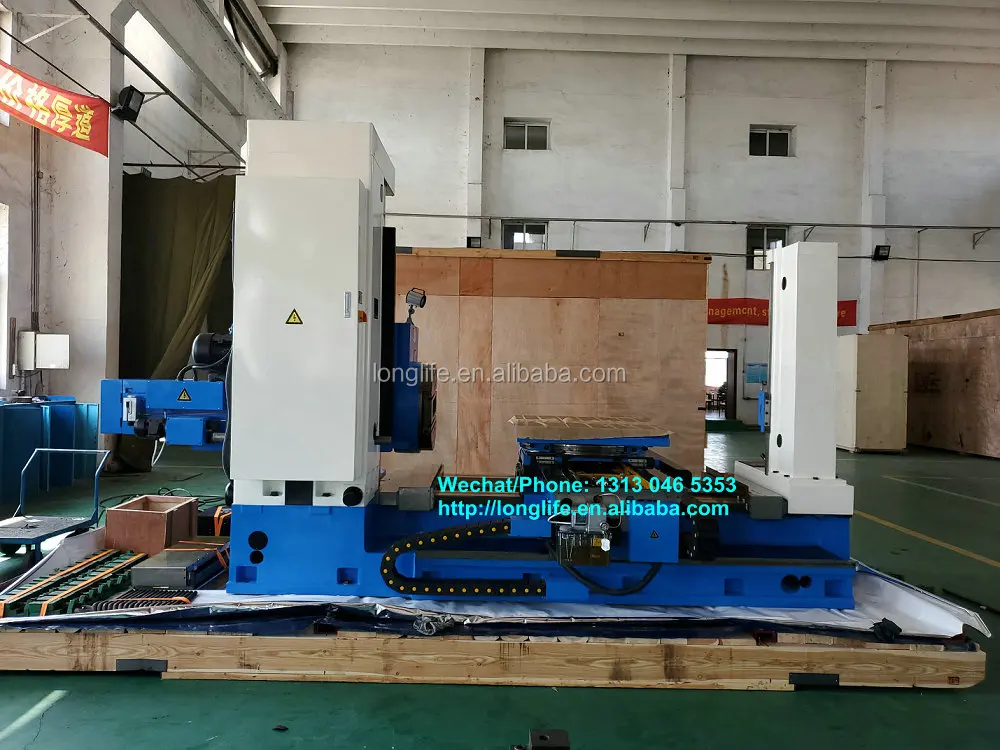

TPX6111/6113 dro horizontal milling boring machine
Main Featurers
TPX6113 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
Main Technical Data
Specifications | Unit | TPX6111 | TPX6111/2 | TPX6111/3 | TPX6113 | TPX6113/2 |
Spindle bore diameter | mm | Φ110 | Φ110 | Φ110 | Φ130 | Φ130 |
Spindle taper |
| MT 6 | MT 6 | MT 6 | Metric 80# | Metric 80# |
Max. torque of spindle | Nm | 1225 | 1225 | 1225 | 3136 | 3136 |
Max. axial thrust of spindle | N | 12250 | 12250 | 12250 | 31360 | 31360 |
Steps of spindle speed |
| 22 | 22 | 22 | 24 | 24 |
Range of spindle speed | r/min | 8~1000 | 8~1000 | 8~1000 | 4~800 | 4~800 |
Power of main motor | kW | 7.5 | 7.5 | 7.5 | 15 | 15 |
Max. torque of facing head | Nm | 1960 | 1960 | 1960 | 4900 | 4900 |
Diameter of facing head | mm | Φ600 | Φ600 | Φ600 | Φ750 | Φ750 |
Range of facing head speed | r/min | 4~200 | 4~200 | 4~200 | 2.5~125 | 2.5~125 |
Speed step of facing head speed |
| 18 | 18 | 18 | 18 | 18 |
Table size | mm | 1100 x960 | 1100 x960 | 1250 x1100 | 1600 x1400 | 1800 x1600 |
Max. permissible load on table | kg | 5000 | 5000 | 5000 | 8000 | 8000 |
T- slot | mm | 22 | 22 | 22 | 28 | 28 |
Number of T-slot |
| 7 | 7 | 7 | 9 | 11 |
X- axis travel | mm | 900 | 1250 | 1600 | 1600 | 2000 |
Y - axis travel | mm | 900 | 900 | 1200 | 1400 | 1800 |
Z - axis travel | mm | 1400 | 1400 | 1400 | 2000 | 2000 |
W- axis travel (Spindle travel) | mm | 600 | 600 | 600 | 900 | 900 |
U - axis travel (facing head slide travel) | mm | 180 | 180 | 180 | 250 | 250 |
B - axis work table rotary | ° | 360 | 360 | 360 | 360 | 360 |
Min. distance between spindle center and table surface | mm | 0 | 0 | 0 | 0 | 0 |
Rapid travel (X/Y/Z) | mm/min | 2500 | 2500 | 2500 | 2500 | 2500 |
Range of feed (X/Y/Z) | mm/rev | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.05-8/0.01-2 | 0.05-8/0.01-2 |
Precision of measurement accuracy by DRO (X/Y) | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
Precision of measurement accuracy by DRO (Z-axis opt.) | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
Overall dimensions (L*W*H) | mm | 4910x24540 x2750 | 4930x2870 x2750 | 5028x3359 x3079 | 6995×3647 ×3442 | 7030x4665 x3800 |
Weight of machine | kg | 11500 | 13000 | 14000 | 24000 | 28000 |
Free Std Accessories
S.N | Name | Remark |
2 | Face heading plate | 1 Set |
3 | Tool holder for boring | 1 pc |
4 | Tool holder for milling | 1 pc |
5 | Operation tools | 1 Set |
6 | Automatic centralized lubrication system | 1 Set |
7 | Work light | 1 Set |
8 | Documents in English | 1 Set |
Optional Accessories
S.N | Name | Remark |
1 | Rear column and support | $ |
2 | universal boring head | $ |
3 | angle boring head | $ |
4 | tool holder for turning | $ |
5 | DRO for B-axis | $ |
6 | DRO for Z-axis | $ |
7 | ||
8 |
Pls send inquiry to me for optioanl accessories and other further information about such horizontal boring machines.
