surge protection for Radio Frequency (RF) communication lines N female to female blukhead
| Electrical | ||
| Impedance | 50Ω | |
| Frequency Range | 0-2.5GHz | |
| VSWR | ≤1.20 | |
| Impulse discharge | 20KA(8/20μs) | |
| Insertion Loss | ≤0.3dB | |
| Insulation resistance(GΩ) | >5 | |
| Waterproof | IP67 | |
| Durability | ≥ 500(cycles) | |
| Material and Plating | ||
| Material | Plating | |
| Body | HPb59-1 | Cu-Sn-Zn3 |
| Center conductor | QSn6.5-0.1 | Glod |
| Screw | HPb59-1 | Cu-Sn-Zn3 |
| Earthing screw | HPb59-1 | Nickel |
| O-ring | silicone rubber | |
| Insulator | PTFE | |
| Environmental | ||
| Temperature Range | -40℃ ~ +85℃ | |
| Humidity | <95% | |
| Salt-fog Test | 96h |
Company Information
We were founded in 1989,located in Zhenjiang,Jiangsu,China.It's nearly Shanghai and Nanjing Airport.
Our main products are.RF connector(BNC,N type,7/16 DIN,EIA,TNC,SMA,SMB,MCX,MMCX,UHF,RCA,etc), Surge Arrester, Cable Assemblies, Zinc Alloy Die casting parts.
We are supplier of ZTE,HUAWEI,Amphenol,Hitachi Japan,Citel France,etc.And we have got ISO9001,ISO14001,IATF16949 and RoHS certificate.
Welcome to visit our company and Hope we can enter long term business relationship.

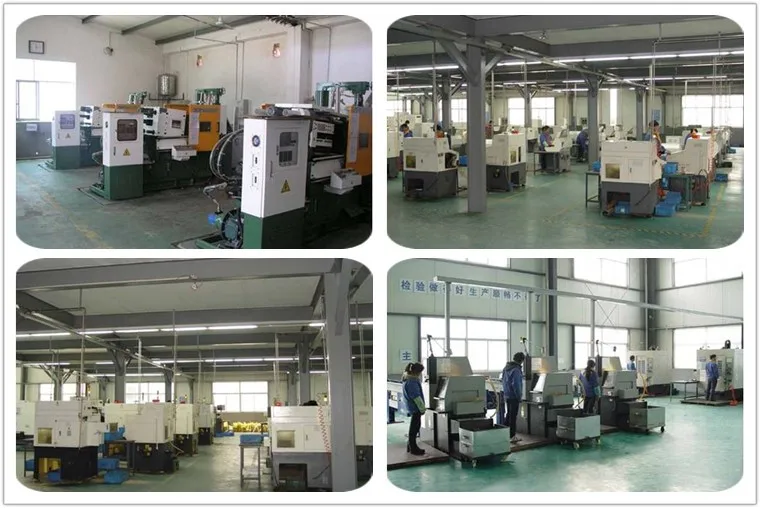

This is our Machining WorkShop,we have more than 60 machines as following:
CNC/Precision lathes/Tsigami auto-lathes/Vertical gantry machining –center/Grinder/Facing Machine/EDM Machine/Drill Machine,etc.

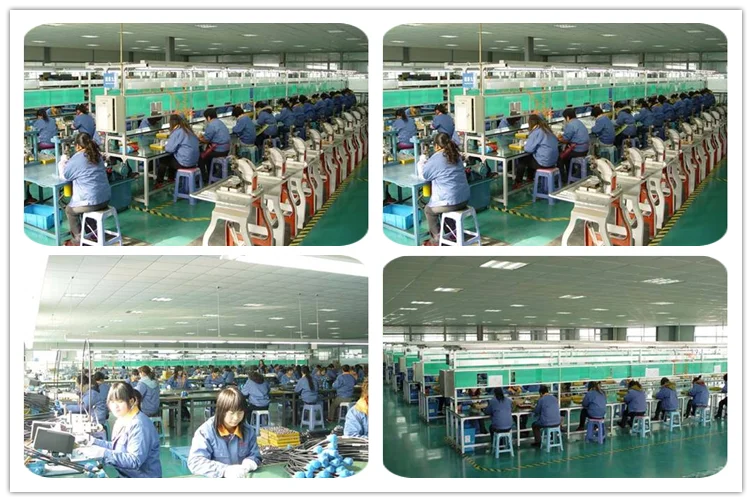

This is our Assembly Shop,we have 8 assemblies lines to ensure the lead time.

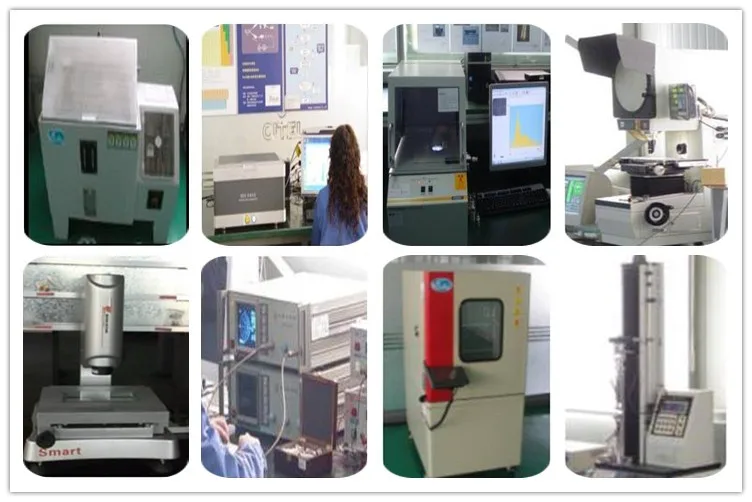

This is our Test Room,we have Fischer x-ray XULM/HP network analyzer/Optic instrument/summtiek PIM analyzer/Skyray EDXSpectrometer/Salt Spray equipment/Thermal Chamber/Hardness test device/Tension test device/Laser mark device/Dielectric test device/Resisitance test device etc for reliability measurement,which make sure every product fully meet customer expectation.
Certificate(ISO9001/ISO14001/RoHS/TS16949)
Awards
Thanksgiving letter from Hitachi Cable/Best Supplier of Amphenol
Team Building
FAQ:
Q: Are you trading company or manufacturer ?
A: We are Manufacture.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Any more questions,contact with me please.
