Автоматическая машина для резки газа резак CG1-30
Автоматическая машина для резки газа резак CG1-30
Автоматическая машина для резки газа резак CG1-30
Автоматическая машина для резки газа резак CG1-30

Автоматическая машина для резки газа резак CG1-30


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

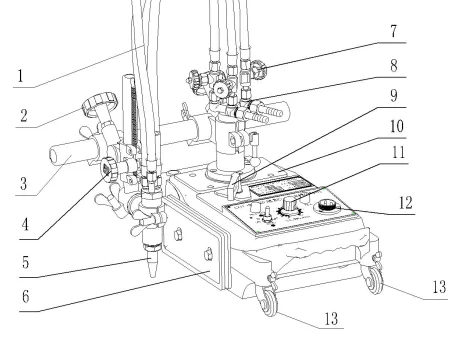

Product Info
No
Description
No
Description
1
Hose: The three hoses are used individually for fuel gas, preheating oxygen and cutting oxygen
8
Gas distributor
2
Cross hand wheel: To adjust the horizontal distance of torch
9
Clutch hand knob: "STOP" is parting. "START" is combination
3
Cross gear rack
10
Body
4
Vertical adjusting hand wheel of torch
11
Speed controller: Increase the speed from "0"to"10"Decease speed from "10" to "0"
5
Tip
12
Outlet
6
Thermal baffle: To prevent the heat diffusing into the inner of machine
13
Universal wheel
7
Fuel gas two-port valve: To adjust gas-flow rate
14
Idle Wheel
Main Feature
1
The main body is made of aluminum of high strength by die-casting
2
Speed system is adjusted by controlled silicon
3
Single torch cutting, bevel range: I,Y,V (45°)
4
Attached quick connector for hose quick link
5
Quick switch attached in pipe assembly for higher efficiency
6
Mainly for straight line cutting and circular cutting > φ200mm
CG1-30
Straight Rail Length
1800mm
Torch No.
One flame
Circular Rail Diamater
900/1000mm
Speed Control
Silicon control
Cutting Thickness
5~100mm
Wheel Distance
160mm
Dia. of Circle Cutting
200-2000mm
Bevel Angle
I, Y, V (45°)
Cutting Speed
50-750mm/min
Motor
DC 110V 50HZ 30W 4200r/min
Recommend Products
Contact
Exhibition & Feedback
Packing & Delivery
Payment & Service
File Service
Instruction Manual
Installation Video
Video Teaching
Visual Service
Remotely diagnose problems
Reducing downtime and cost to send a field technician
Training
Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Our Company
FAQ

Q1. How can I choose a suitable Portable Gas Cutter?

Just tell us what kind of rail ttype do you need, straight line or circular rail?

Q2. What shall we do if we don't know how to operate the machine after purchase?

We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.

Q3. What can we do if the machine has a problem?

24 hours timely response by email and phone calls or engineers overseas service but not for free.
