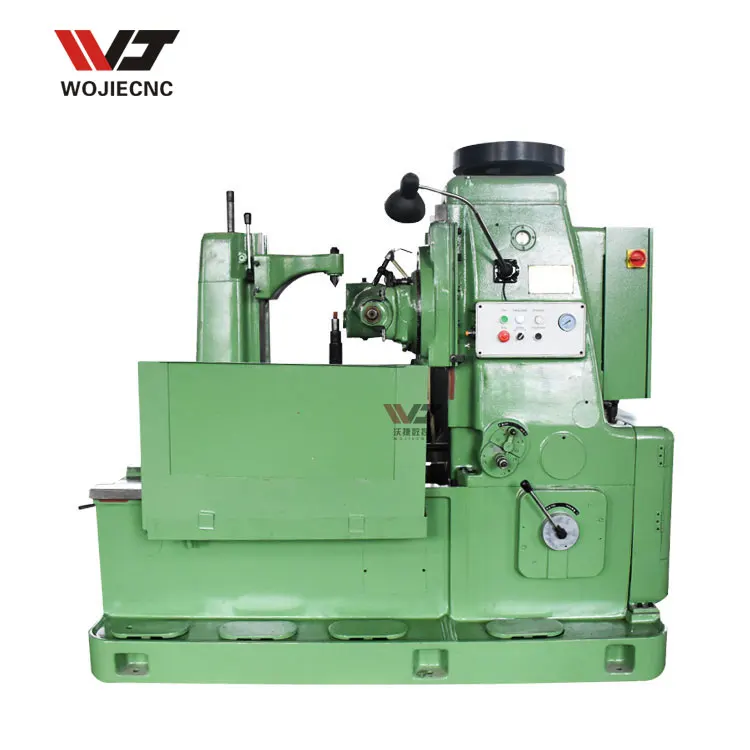

Gear hobbing machine Y3180 spiral bevel gear cutting machines for sale
Product Description
Y3180 gear hobbing machine using:
High strength Y3180 gear hobber machine could produce straight teeth and helical teeth,cylindrical spur teeth,worm gear,chain wheel and short spline shaft, and this hobbing machine suitable for in bulk and single production .The gear hobbing machine has the auto off function ,safety device and self-lubrication system .
Product main technical specifications:
Specification | Unite | Y3180H |
Max.dia.of workpiece (without back column/with back column) | mm | 800/550 |
Max.modulus(casting iron/steel workpiece) | mm | 10/8 |
Max. helix angle in turning bevel gear | ° | ±45° |
Max. dimension of cutter (Dia. x Length) | mm | 180x180 |
Cutter tool spindle taper hole | MS | No.5 |
Worktable diameter | mm | 650 |
Worktable hole diameter | mm | 80 |
Worktable mandrel tapper | Ms | No.5 |
Distance between axis of cutter and work table face | mm | 235~585 |
Distance from hob center to workable center | mm | 50~550 |
The distance between under end surface of the support bearing hole and the worktable | Mm | 400-600 |
Rapid moving speed of work table | mm | 50 |
Max. axial movement of cutter | mm | 50mm(manual) |
Spindle speed steps |
| 8 |
Spindle speed range | rpm | 40~200 |
Axial feeds range | mm/rev | 12 steps 0.4~4 |
The max speed of worktable | r/min | 5.3r/min (3.5r/min) |
Power of main motor and synchro-speed | kw/rpm | 5.5/1500 |
Power of rapid axial motor and synchro-speed | kw/rpm | 1.1/1500 |
Power of hydraulic pump motor and synchro-speed | kw/rpm | 1.1/1000 |
Power of rapid worktable motor and synchro-speed | kw/rpm | O.55/1500 |
Power of cooling pump | kw |
|
The net weight | Kg | 5500kg |
Overall size | mm | 2750*1490*1870 |

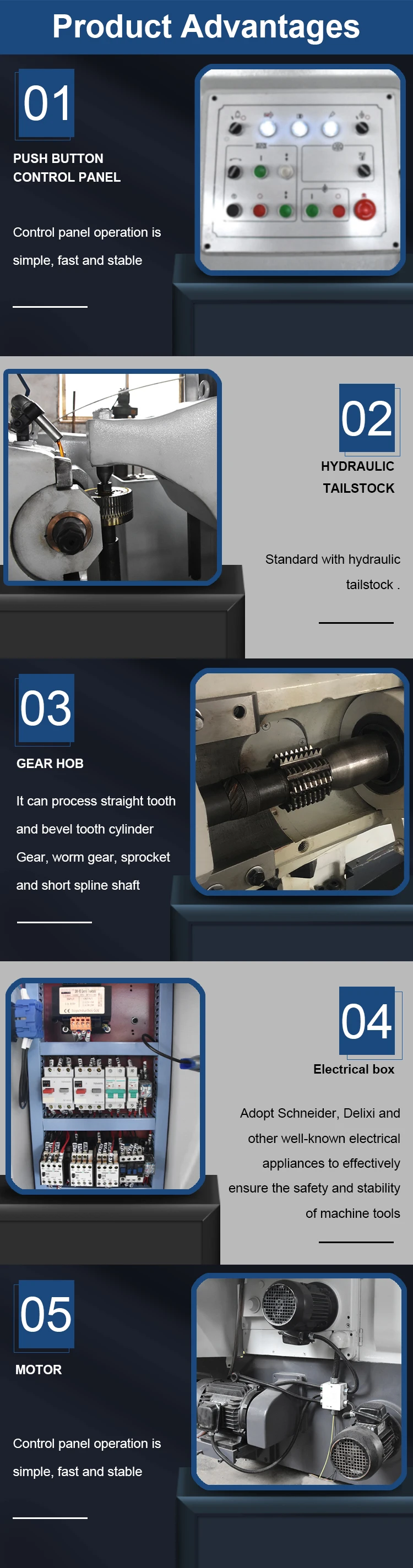

Product Detail
Related Products
Company Information
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.

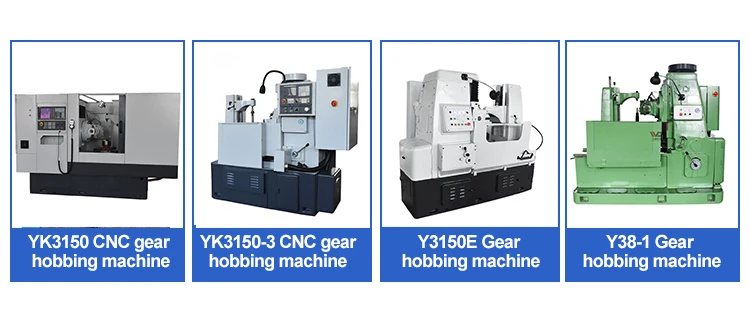

Похожие товары
