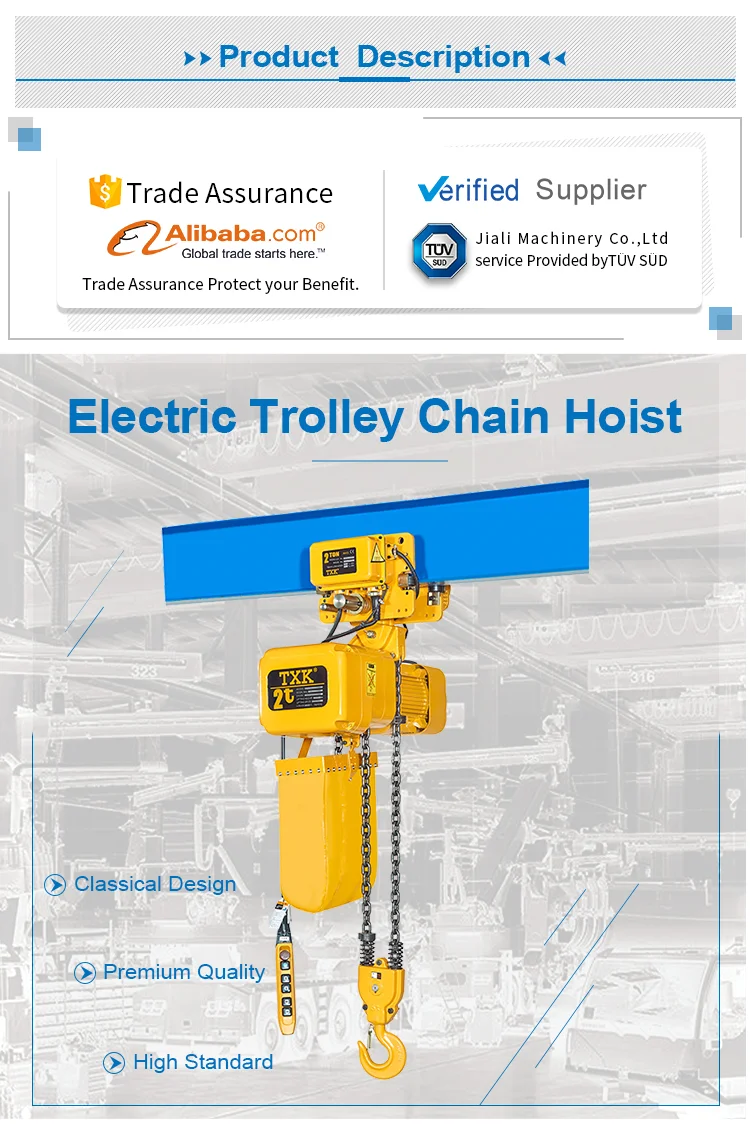

Hoist with Electric Trolley | ||||||||||||||
Technical Parameters | ||||||||||||||
Capacity | Model | Hoist | Trolley | Insulation | Power Input | Control Voltage | ||||||||
Lifting Motor | Liting Speed (m/min) | Lifting Motor Power (kw) | Chain size x falls (mm) x (nos) | Travelling Mode | Travelling Speed (m/min) | Travelling Motor Power (kw) | ||||||||
3 Ton | SSDHL03 -01M | without inverter | Single speed | 6.6 | 3 | 11.2x1 | Single speed | High | 20 | 0.4 | F | 220V-690V | 24V/36V /48V | |
with inverter | Dual speed | 6.6/2.2 | Dual speed | Low | 9 | |||||||||
Variable speed | 0.66-6.6 | Preset | 20/5 |
Size Specifications | |||||||||
Model | H | A | B | C | D | E | L | R | T |
SSDHL 03-01M | 650 | 745 | 410 | 450 | 125 | 140 | 48 | 246 | 156 |
TXK was founded in 1997 and is a leading manufacturer of lifting and material handling equipments with many years experience. We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001:2008 certified company, our products are GS,CE certified, serving all spheres of industry in the world. Our brand TXK is sold in more than 60 countries worldwide and has earned an enviable reputation for high quality products. With our professional R&D team, we are able to provide customization services with the most professional quality and never stop meeting the highest standard of safety.
We will never stop being as an innovative manufacturer. We will continue to develop and extend our products range with high quality, safety standard and long life usage.
FAQ
1. Are you manufacturer or trade Company?
Thanks for your question. We are a factory founded in 1997 with trade team for international service.
2. About quality:
Before packing, all the hoists will be inspected carefully. And we take detailed pictures and make records for each single product.With our serial no. you will track the details about the products.
3. About spare parts:
We manunfactur 80% spare parts in our factory to control high quality, and the rest 20% are from overseas and China's most famous supplier.
4. How about sample & MOQ policy?
Thanks for your question. Welcome sample order. MOQ can be 1 set.
5. what is your lead time for your goods?
Thanks for your question. Normally 7~10 working days after received payment, and about 30 days during Chinese new year and hot season.
6.What should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you!
A- lifting capacity?
B-lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?mote
Factory Price 3t 5m 8m 10m Height Electric Chain Hoist Lift Crane
