Product Description

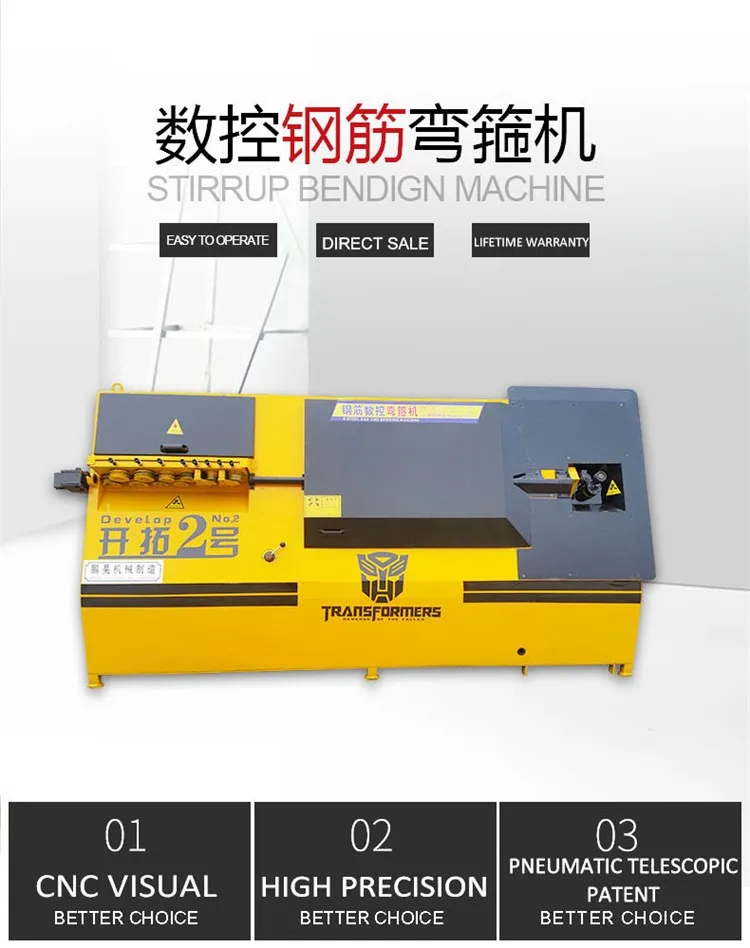

Construction Stirrups bending machine manufactures
Automatic stirrup rebar bending machine is a multi-functional fully automatic machine for processing steel bar using Programmable Logic Controller system.
1. The special structure design, easy to deal with ribbed bars straightening, straightening ribbed bar does not damage.
2. HIGH quality feeding and straightening roller improves the straightening effect of steel bar and prevents the axial torsion of reinforcing bar.
3. Touch screen operation, independent research and development system, easy to learn. Operators do not have to worry about not using it.
4. All straighten roller are made of high quality alloy steel,feeding roller is made of CR12MOV high hardness, good wear resistance, improved service life.
5.The product is stable in operation, and the produced stirrups are accurate in size and shape.
Help you to chose the suit machine for you .
Feature
1, combine with horizontal and vertical straightening wheels, drive by Big 18.1kw SFC brand servo motor, make sure best accuracy when straightening rebar
2, bending spindle could rotating and telescope in high speed, could cut rebars very quick to get high bending precision.
3, large storage capacity can save many processing graphics,
4, PLC control system, Eview software, SFC servo motor.
5, straightening, measure length, bending, shear at same time, processing in high efficiency.
SPECIFICATIONS FOR steel bar bender | ||||||
Power | Power Equipment | kw | 20 | |||
Average power | Kw/h | 5 | ||||
Working temperature | ℃ | -5℃-40℃ | ||||
Main performance parameters | Single wire | mm | 4-12 | |||
Double wire | mm | 4-8 | ||||
Length Accuracy | mm | ±1 | ||||
Speed | maximum towing speed | m/min | 60 | |||
maximum bend speed | °/sec | 800 | ||||
Bengding angle | ° | ±180 | ||||
steel wire bending machine
1.This equipment adopt servo controlling system;
2.Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
3.Max bending diameter of rebar is 4-12mm;
4.Widely used in construction industry and rebar manufacturing enterprise;
5.High efficiency and accurate processing precision.
2.Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
3.Max bending diameter of rebar is 4-12mm;
4.Widely used in construction industry and rebar manufacturing enterprise;
5.High efficiency and accurate processing precision.

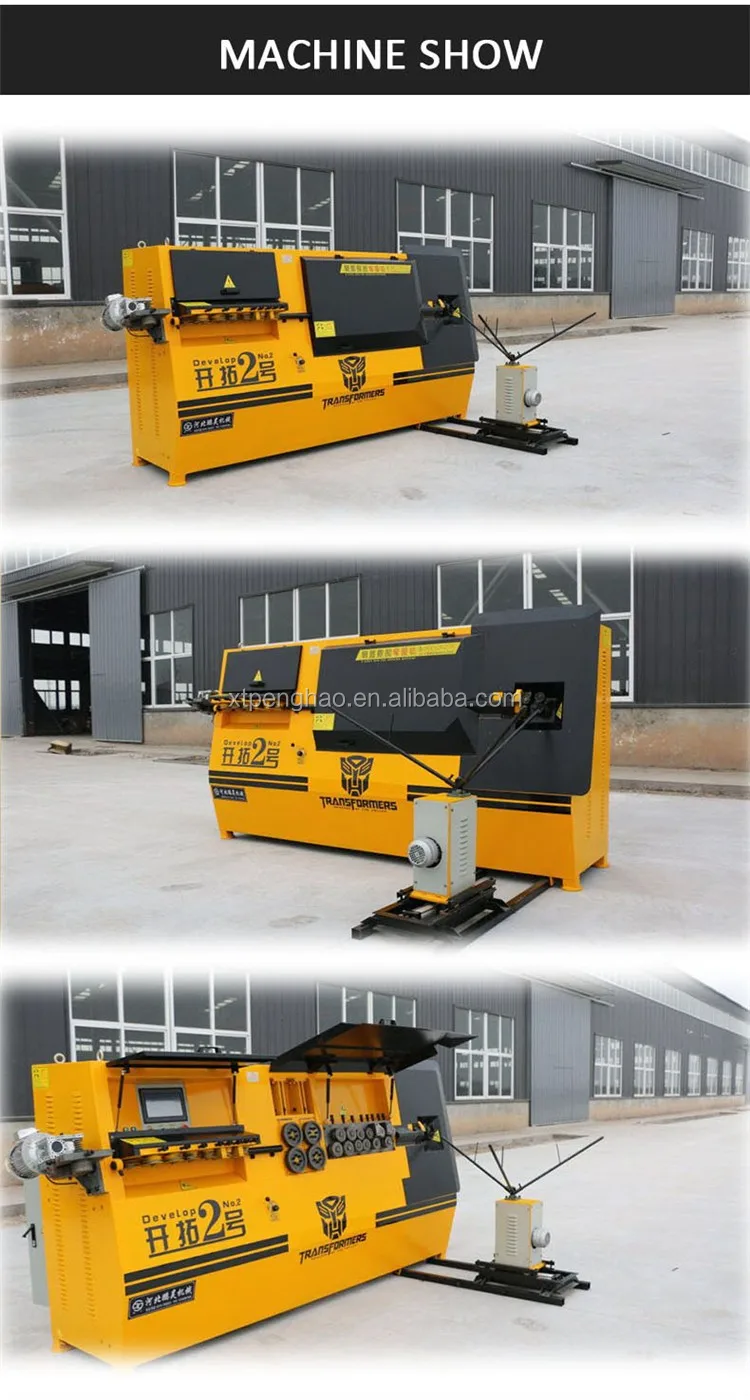

Detailed Images

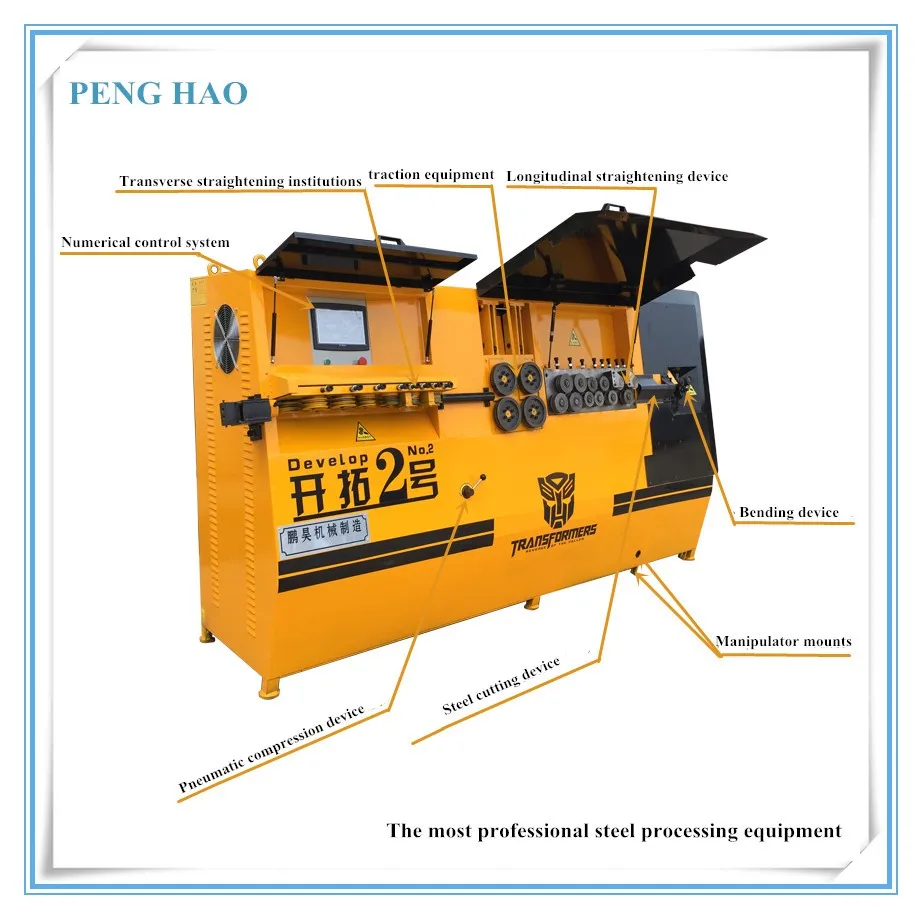

Machine Parts 1

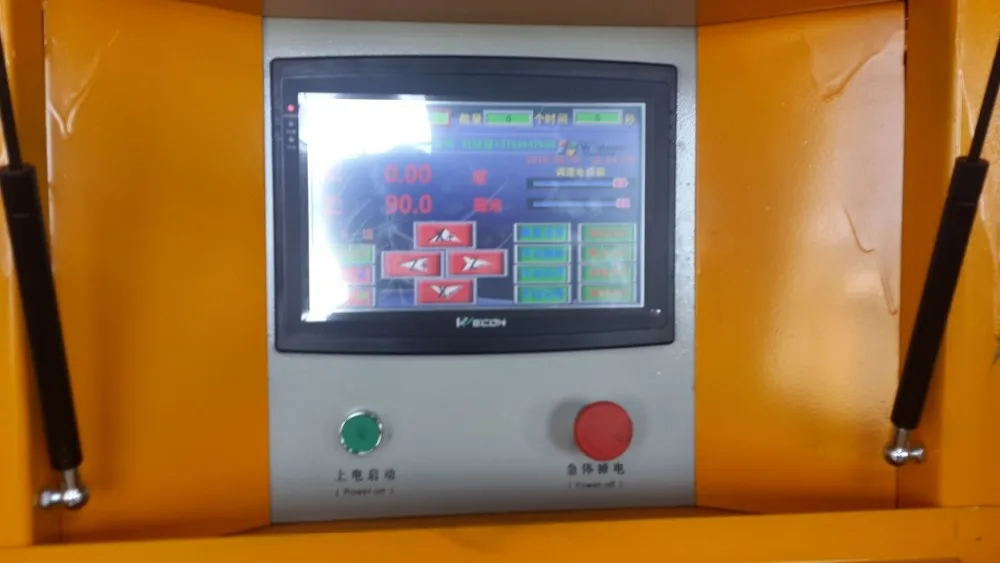

Name:CNC aotomatic computer system
This machine adopts numerical control system, it can process many kinds of shapes of stirrups.
Main Parts 2

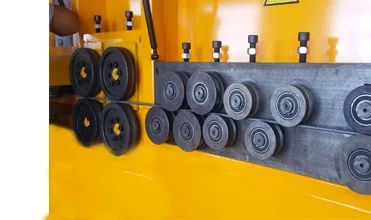

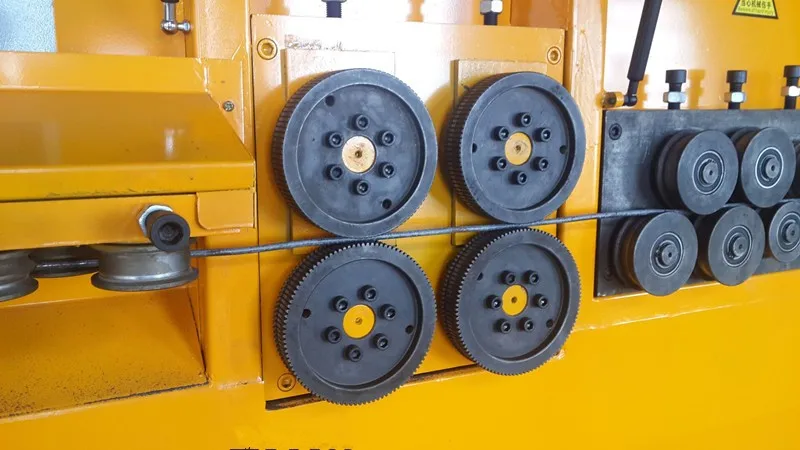

Name: Multi roller straightening device
Multi roller straightening device has good straightening effect, in the process of the roller is not floss.The roller is made of special alloy steel which wear resistance.
Mine Parts 3
Name: Double roller traction device
The roller is made of Cr12MoV material.This material is lengthened the service life of the roller, and strengthen the effect of feeding roller.
Main Parts 4

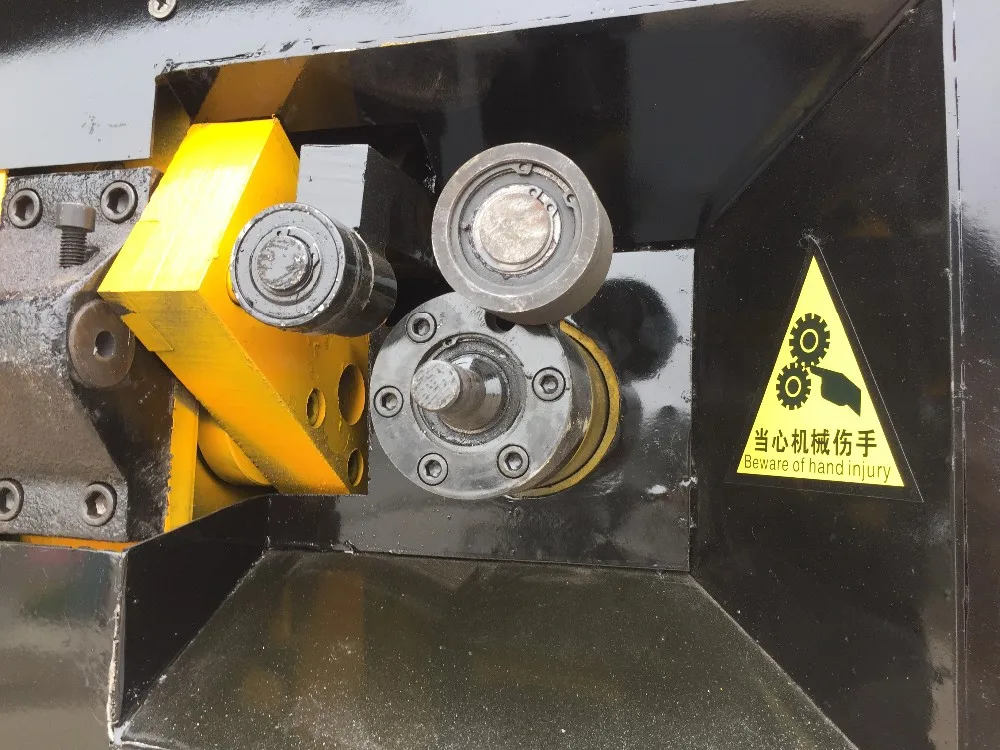

Name: Pneumatic telescopic device
This device is our patented product that make the material more stirrups .in addition , it can process 5*5 stirrups.

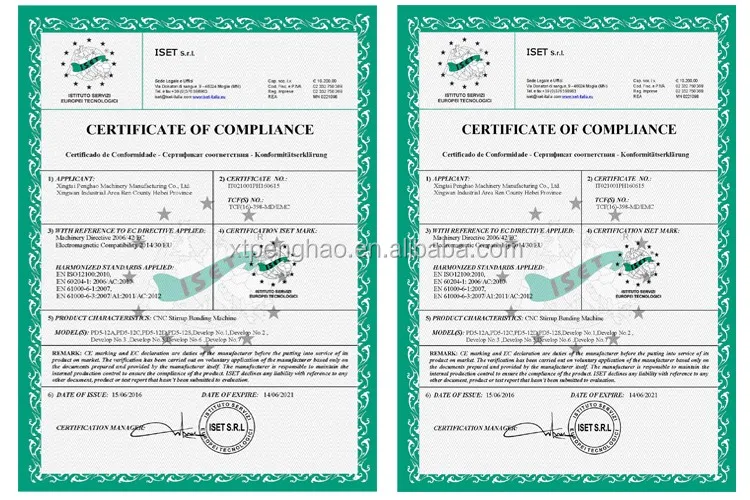

Certification
WELCOME
Packing & Delivery
Package and shipment
1.Standard export package, custom suffocating free.
2.Delivery goods within seven days.
Our Service

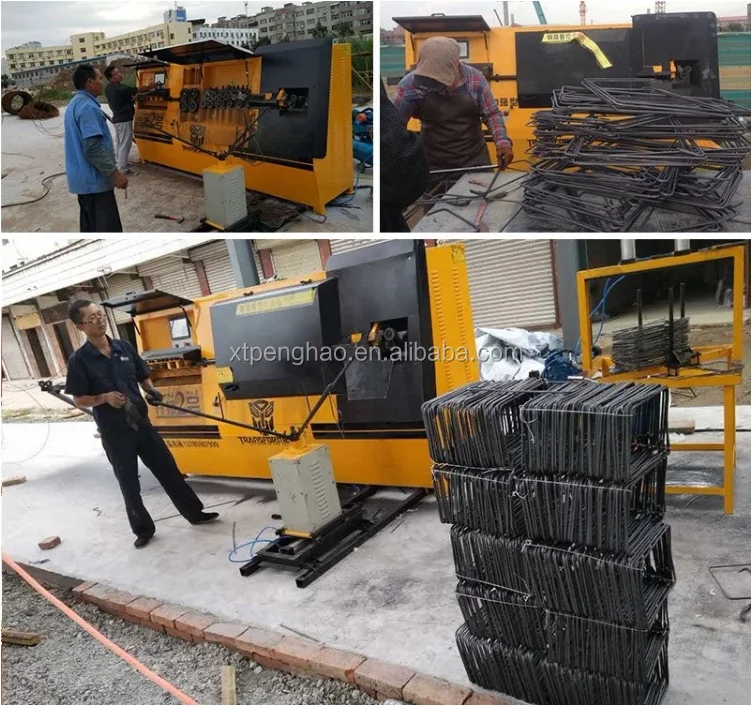

Success Stories
FAQ and Contact

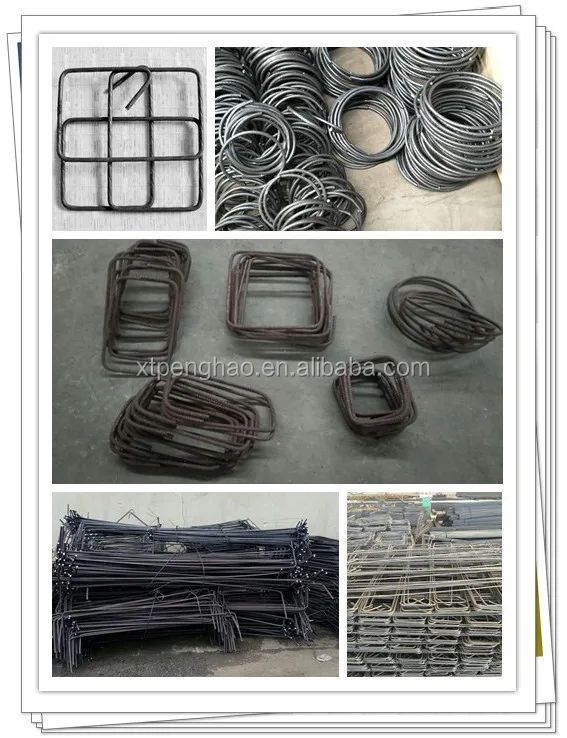

1. What is the materials using for this type machine?
Round steel and thread steel;
2. What is the max bending diameter?
Max bending diameter is 12mm;
3. Can you make the english language or other language of the CNC control system for the customers?
Yes. Of course. We can make different language for the cnc control. Just tell us which language you need
4. Can you change the machine's color for the customers?
Yes. We can make the color as what you want;
5. What is the delivery time?
If we have machines in stock, delivery time is 2-3 days. If we don't have the stock. The delivery time is 5-8 days;
6.How about your after-sale service?
Our warranty Period is one year, and we will provide the installation Vedio when we ship the machine.
If there is any wrong with while work ,pls contact us ,our technologist will deal with this in 24 hours
