RK400-01 304 Stainless Steel 0.2mm Resolution Tipping Bucket Rain Gauge for Weather Monitoring

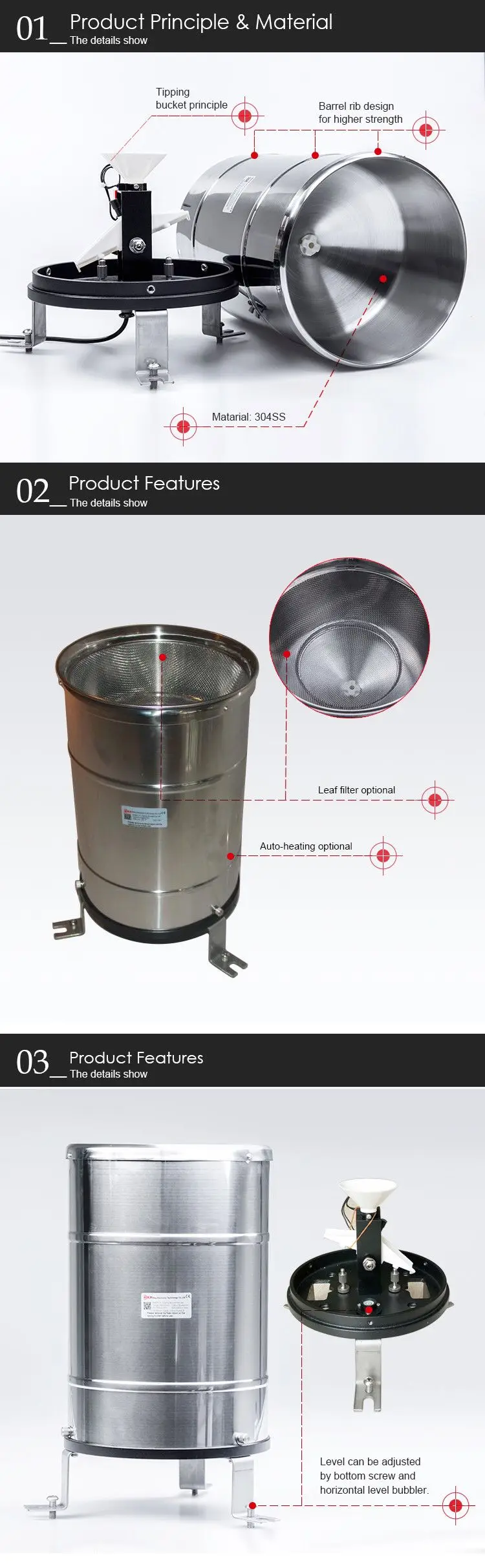

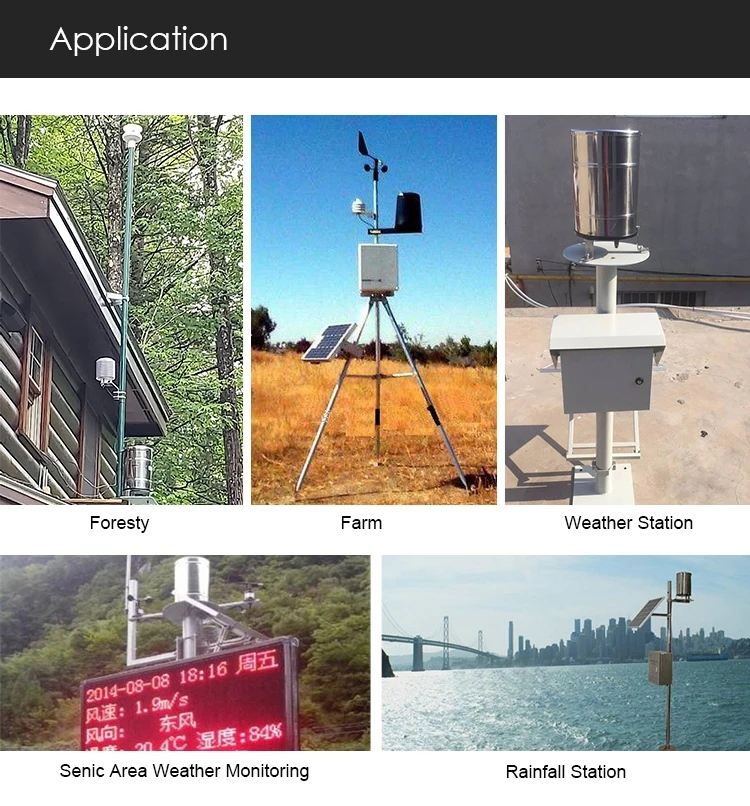

The RK400-01 Tipping Bucket Rain Gauge is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather stations, Hydrometric stations, Agriculture & forestry, defense & field monitoring stations. It can provide the original data for flood-prevention, water-supply system, and reservoir water management in plant.
Features
Applications :
Specification
Item |
Specification |
Rainfall collector |
Diameter :φ200mm, height: 350mm |
Measured rainfall intensity |
Max: 4mm/min |
Allow rainfall intensity |
Max: 10mm/min |
Resolution |
0.1mm, 0.2mm |
Accuracy(2mm/min) |
±4% |
Maximum load voltage |
30VDC(pulse output) |
Maximum load current |
20mA(pulse output) |
Output |
Reed switch pulses,RS485(12-24VDC supply) |
Operating temperature(no freeze) |
-20-+80℃
|
Main material |
Collector:304SS,tipping bucket:ABS |
Tipping bucket |
Single |
Heating(optional) |
Heating power: approx.350W |
Collector filter |
Removable filter (prevent leaves and sundries)optional |
Weight(unpacked) |
3.5kg |
In order to send specific price to you, please tell me your information below:
1. What’s your required output signal ? -- We have pulse & RS485 optional. Please specify.
2. What’s your required power supply ? -- If pulse output, no power supply is required. If RS485 output, the supply is 12v or 24v optional, please specify.
3. What’s your required cable length ? - The standard is 1.5m. If you have special demands, please specify.
4. Quantity?
5. Price items: CIF or Exw or FOB ? -- If CIF please tell us your detail shipping address & post code for freight calculation.
6. Your complete company name,address, post code,contact person, tel, fax etc.
Related Products
![]() |
![]() |
![]() |

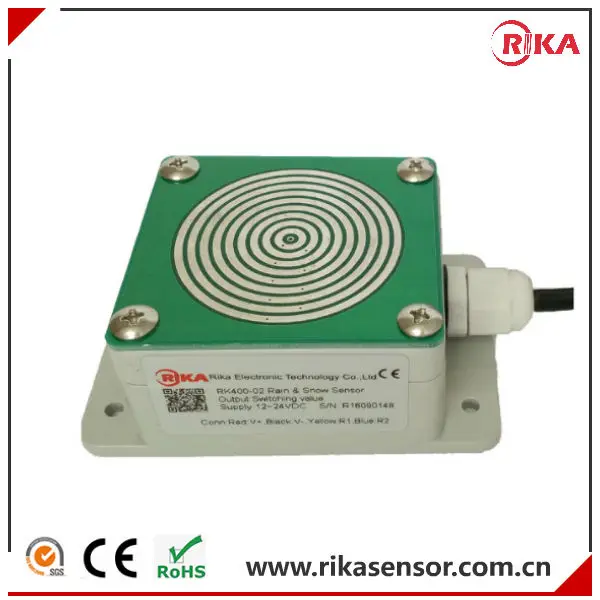

Tipping Bucket Rain Gauge | Rain & Snow Sensor | Plastic Wind Speed Sensor |
RK400-04 | RK400-02 | RK100-02 |
![]() |
![]() |
![]() |
Soil Moisture Sensor | Submersible Level Sensor | Solar Radiation Sensor |
RK510-01 | RKL-01 | RK200-04 |
Q: Are you the final manufacturer?
Q: Do you offer the OEM service ?
A: Yes, we can offer OEM service and design the logo marking for you . But the minimum quantity is 10pcs for the first order .
Q: Do you offer free samples ?
A: Sorry , we do not offer free samples .
Q: What payment ways do you accept ?
A: You can pay us by T/T , PayPal , and West Union .
Q: What is your delivery time ?
A: It is in 6-8 working days since the payment confirmed . If quantity more than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent DHL / FEDEX / UPS / EMS / TNT / or other proposed forwarders.
Q: How is your quality assurance service ?
A: Our service is free exchange within one month and 18 months`quality guarantee
Q: Could we make a visit to your factory ?
A: Yes, you are welcomed . But before that ,we will do the visiting investigation.
