Тестер сопротивления изоляции RK2681 диапазон измерений 100K Ом до 5T с автоматической функцией постоянного

Описание и отзывы

Характеристики

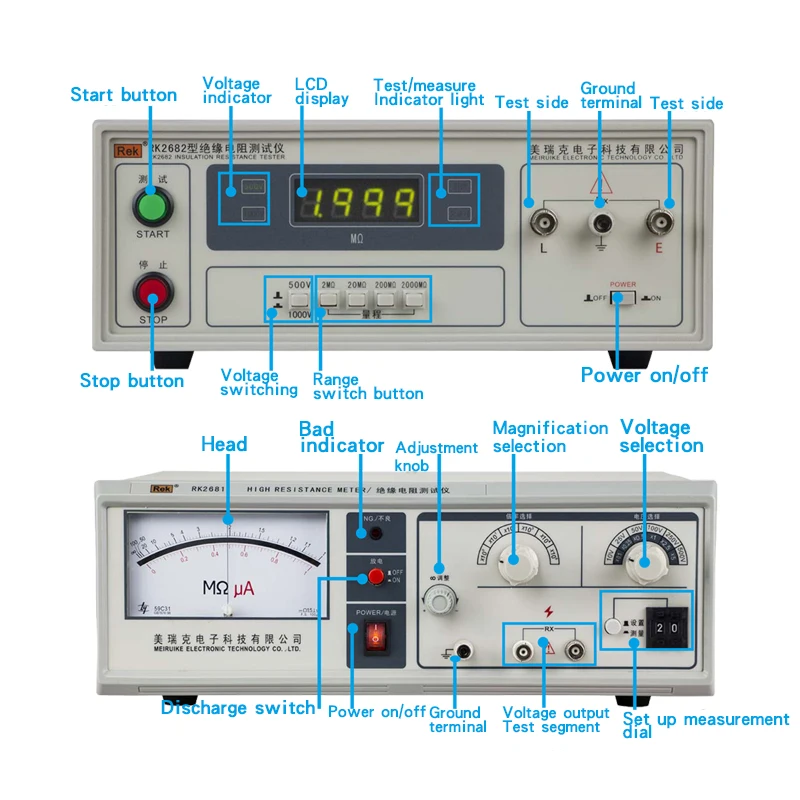

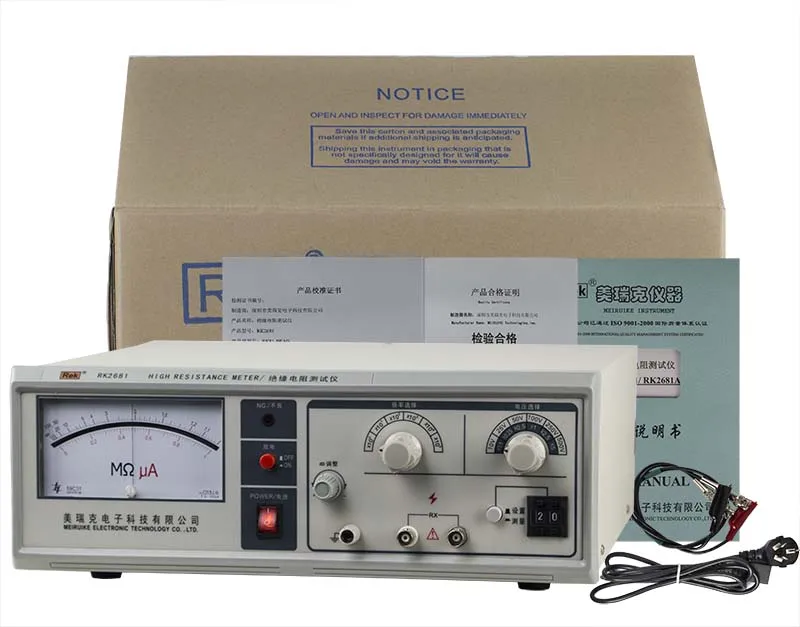

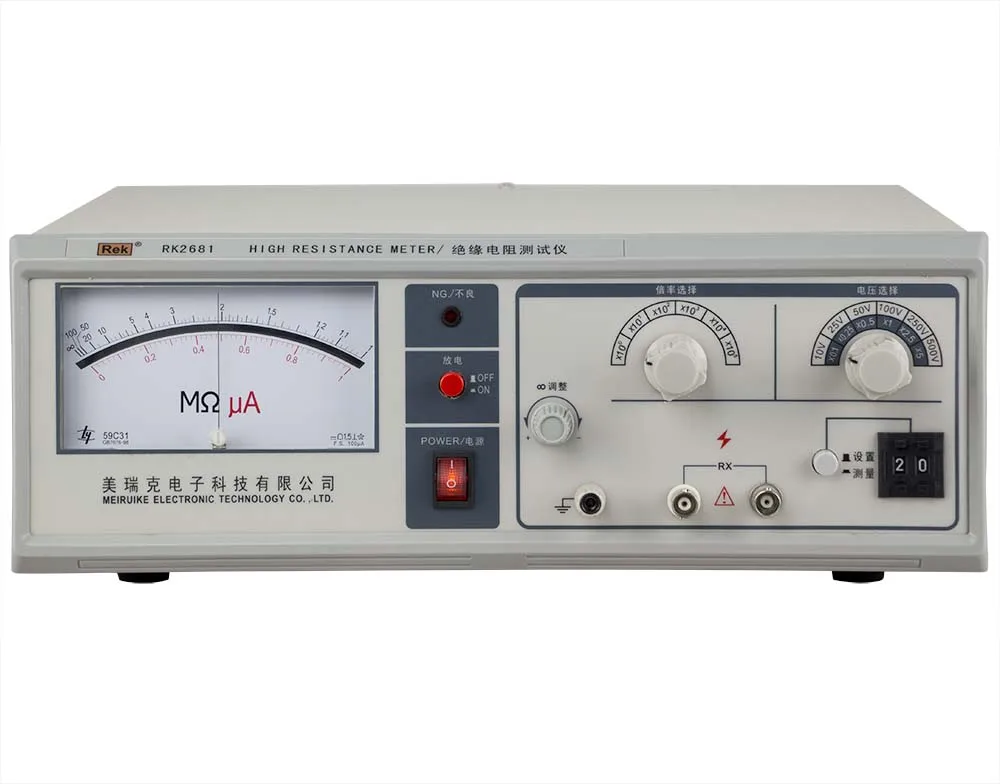

RK2681 Insulation Resistance Tester Measures Range 100K ohm to 5T ohm With Steady Voltage Automatically Function



Product introduction

RK2681 series insulation resistance tester is a kind of insulation performance measuring instrument of household appliances,lighting appliances,electric heating appliances,electronic components,dielectric materials,the whole machine and so on.Fast test speed,good stability,convenient operation,and has discriminated function.

This instrument complies with the requirement of the standard of electronics industry ministry GB6587.1II group,rated service conditions:A:ambient temperature:0~40℃ B:relative humidity:<70%  C: atmospheric pressure:86~106kPa.

The insulation resistance tester of RK2682 type design according to the IEC,BS,UL and other international and domestic requirements of the safety standard,testing is divided into DC500V and DC1000V two files,The insulation resistance is divided into 0.5MΩ~2000MΩ four files (2MΩ,20MΩ,20MΩ,2000MΩ).The instrument is based on absorbing and digesting the international advanced insulation resistance testing instrument and combined with the actual use of many users in our country to improve and refine.We pay more attention to the performance and quality in the price/performance.In terms of price,we pay more attention to the actual purchasing power of many users.It belongs to the lowest price of the product in the domestic same file type.

Technical parameter

Model	RK2681	RK2681A	RK2682
Test range	100kΩ-5TΩ	100kΩ-10TΩ	500kΩ-2GΩ
Test accuracy	R<10GΩ ±3% indication ±0.5 lattice R≥10GΩ ±5% indication±0.5 lattice R≥1TΩ  ±10% indication ±0.5 lattice		±5%+2 words
Test voltage(V)	10/25/50/100 /250 /500	10/50/100/250/500 /1000	500 /1000
Voltage accuracy	±2%
Control method	Analog circuit		Digital circuit
Range method	Manual operation
Measuring velocity	Resistive element:<0.5 seconds,Capacitive element: 0.5~10 seconds
Sorting	Qualified,unqualified,unqualified hearing ring (can be switched)
Work environment	10℃~40℃≤85%RH

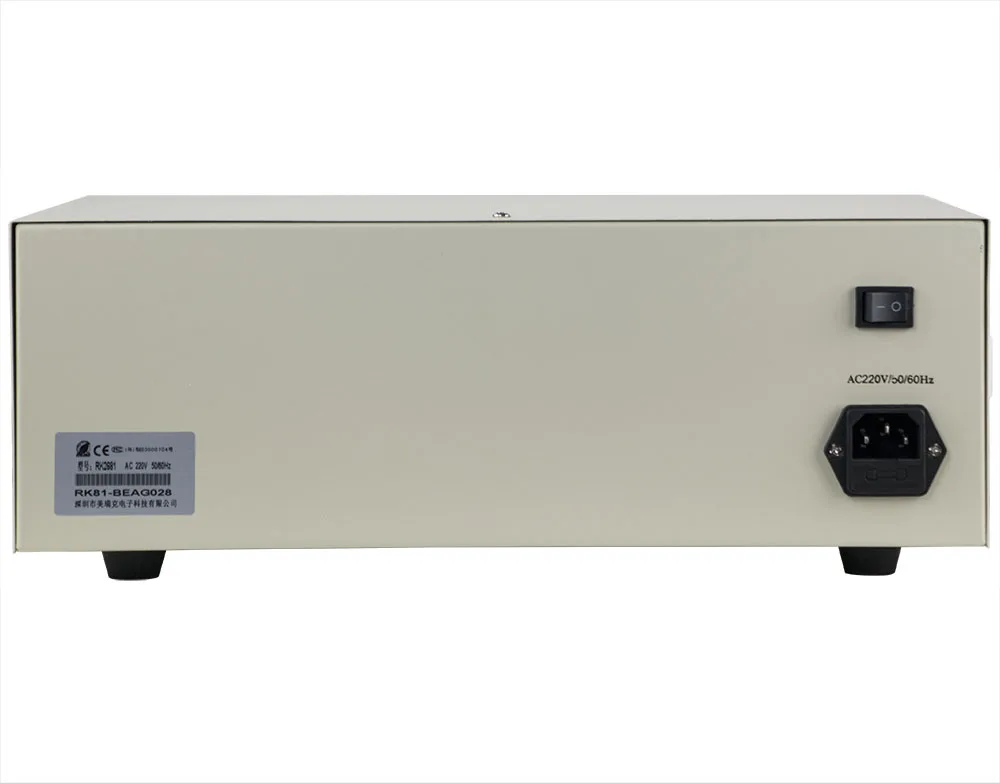

Power Requirments	220V±10%,50Hz/60Hz±5%
Exterior dimension	330x270x110mm		140x200x260mm
Weight	6kg		4.5kg

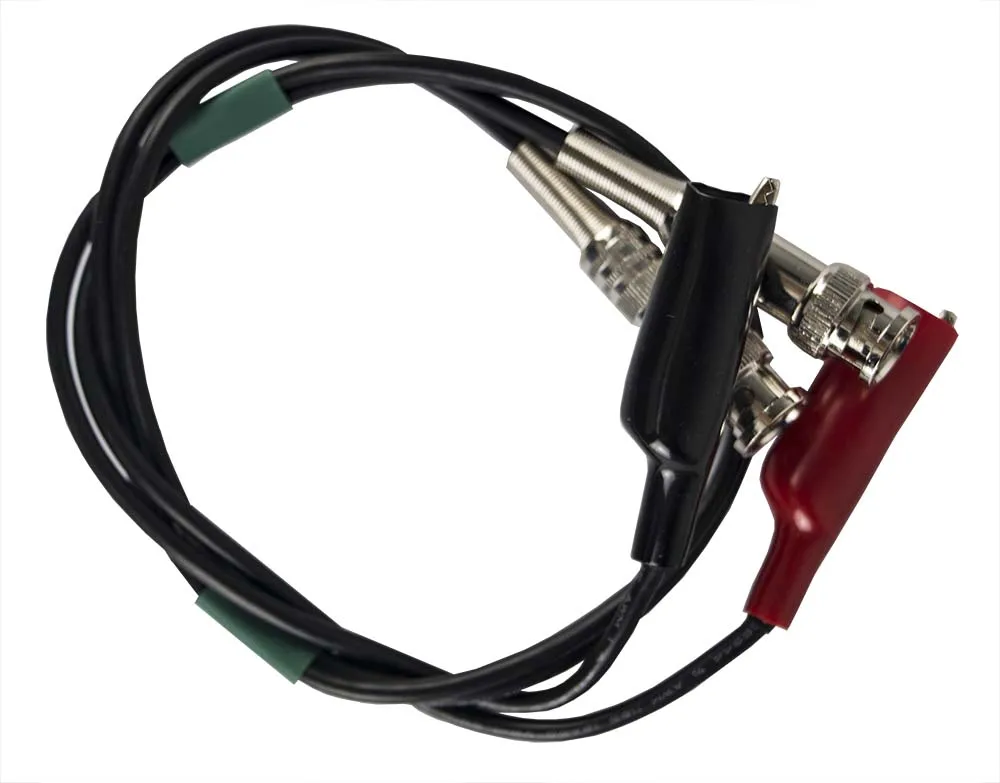

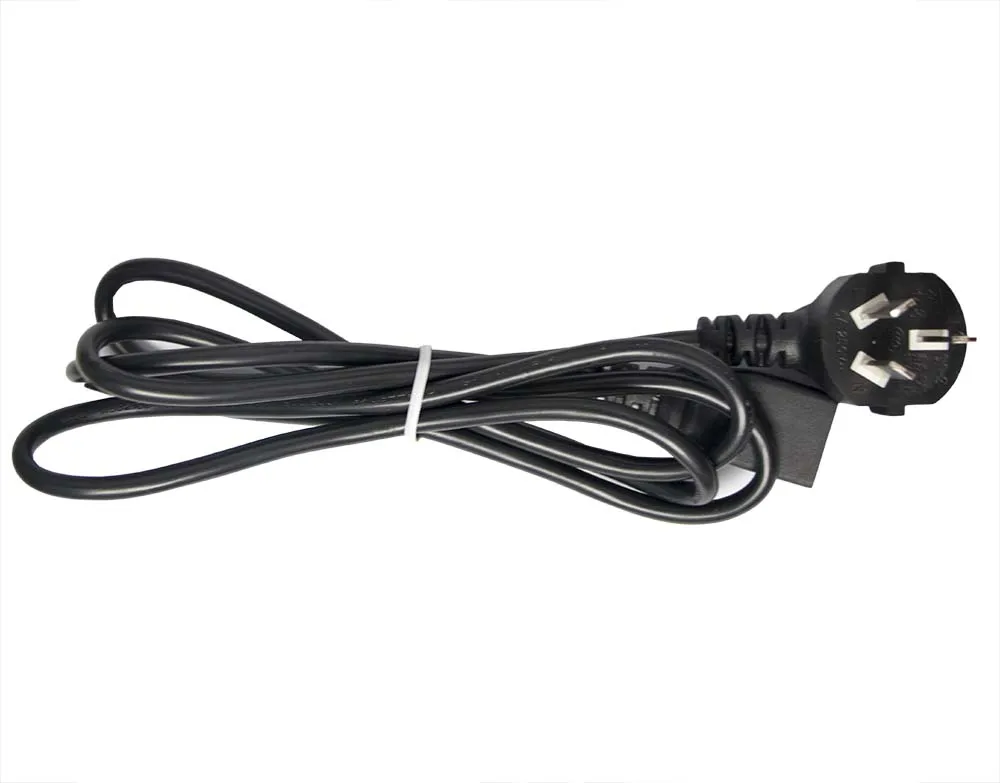

Accessory	Power line,test line
