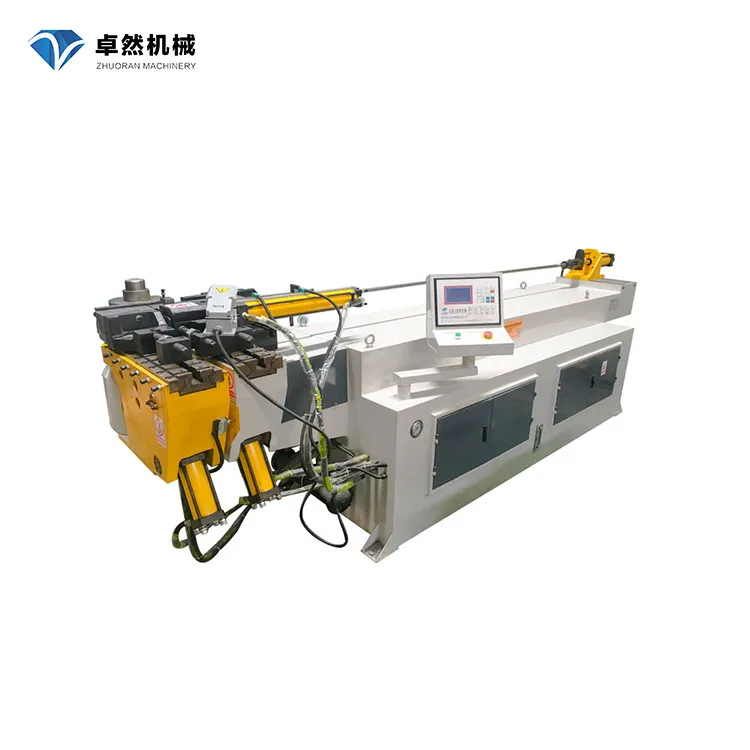

Automatic DW75NC mandrel profile hydraulic aluminum copper stainless steel exhaust square tube bender pipe bending

Main specifications

The unit

Models:DW75NC

Note:

1. The minimum

 bending radius is

based on the pipe

diameter

2. The maximum

bending radius can

 be determined

according to customer

requirements
3. The maximum

length of core penetration

can be according to

customer requirements

Maximum bending diameter

×Wall thickness.

mm

Φ75×4

Maximum bending radius.

mm

R350

Minimum bending radius.

mm

R≥1.5D

Maximum bending Angle.

Degree

190

Standard core length.

mm

2800

Control system.

Microcomputer control

Number of elbow allowed for

 pipe fitting

Unit

16

Number of parts that can be stored.

Unit

16×16

Oil motor power.

KW

7.5

Maximum system pressure.

Mpa

12

Hydraulic system control.

Solenoid valve

Tank volume

L

250

Machine dimensions

mm

4300×900×1300

Machine weight

Kg

2000
