Цена:11 800,00 $ - 12 200,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Product Introduction

How does it work?

Just PROBE & Diamond CUT !

Once the machine has automatically probed the wheel profile there is no need for you to waste time programming our Alloy Wheel lathe we have taken care of that for you. Just cut the wheel and store the profile on the system. Build up a library of Alloy wheel profiles.We saved you time so you can cut more wheels!

The machine work steps

1-Probe alloy wheel profile,transformation G code

2-Diamond cut the wheel.

Product Parameters
SPECIFICATION
Max. swig over bed (mm)
Φ725(28')
Max. swig over cross slide (mm)
Φ540
Max. Size of alloy wheel
26'
Cross slide travel (mm)
350
Width of the rail
330
Length of the rail
1320
Size of the three-jaw chuck
12'
Range of spindle speed (RPM)
50~2500
Spindle speed control
Automatic
Spindle bore (mm)
Φ60
Taper of spindle bore
MT6
Taper of spindle nose
A2-6
Max. size of tool post
25×25mm
Stations of tool carrier
4 position
Min. setting unit of motor
(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post
(Z) long 8m/min, (X) cross 4m/min
Motor power
5.5KW
Machine base
Whole cast iron base
Machine size(L×W×H) (mm)
2300×1750×1950
Net weight
2600kgs

Standard Accessory

1- 3-Jaw Chuck(With Special Soft Jaws)

2- Manual Quick Change Toolpost ,4-station turret,

3- Automatic lubrication system,

4- Cooling system,

5- With probing system(TP300 Pioneer Sensing Probe)

6- Diamond Cutter 1 set

7- CNC controller SYNTEC

8- Full Enclose(Security Guard Door)

9- Specific Digital Optimization Software

10- Training Video CD/Tool Box

11- Work Lighting System

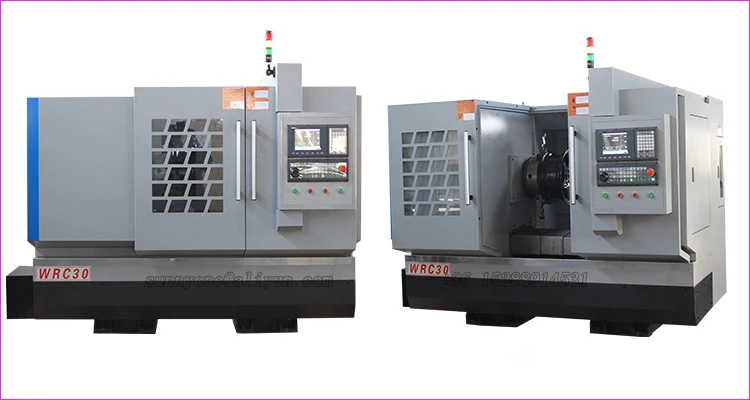

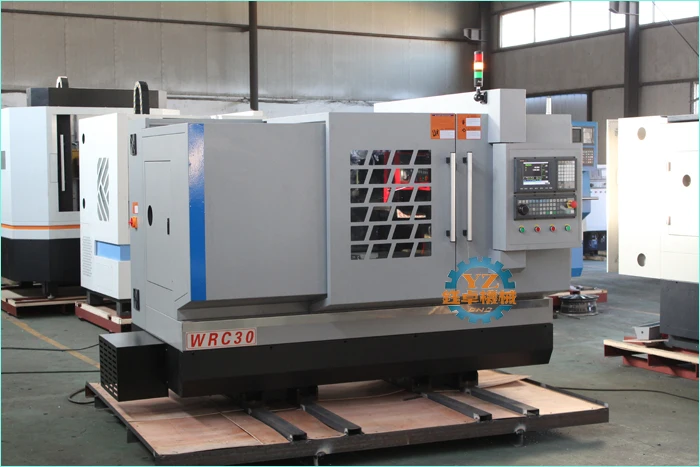

Product Details Show
Customer training
Product Packing
Certification
