4G GPS Tracker OBD- ES-550

Note: sample support purchasing online, delivery different according to the countries who use different 4G modules, can contact us for fast consultation.









4G + Wifi + Hotspot OBD



OBD diagnosis

*Fault code detection;

*VIN Identification;

*SIM Card or M2M Card Identification;

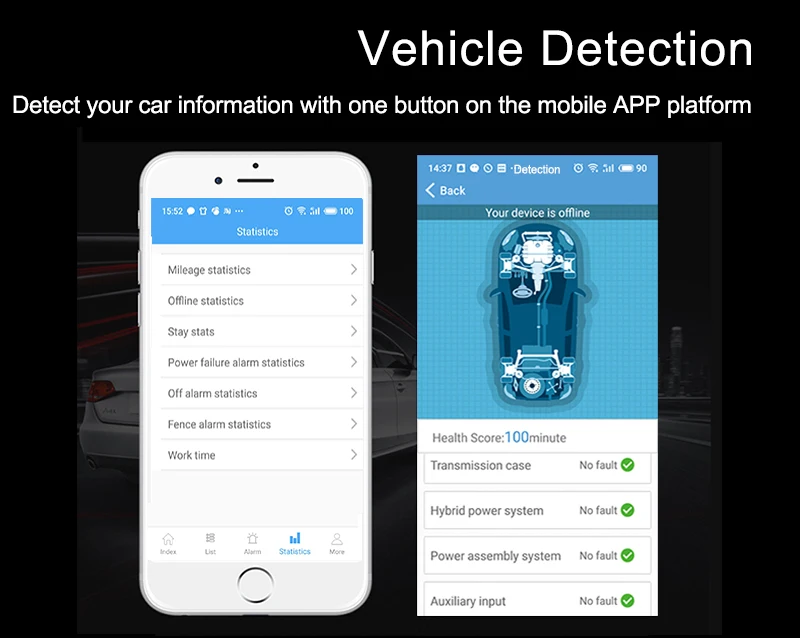

*Vehicle condition detection reminder;

*Overspeed,Fatigue driving reminder.

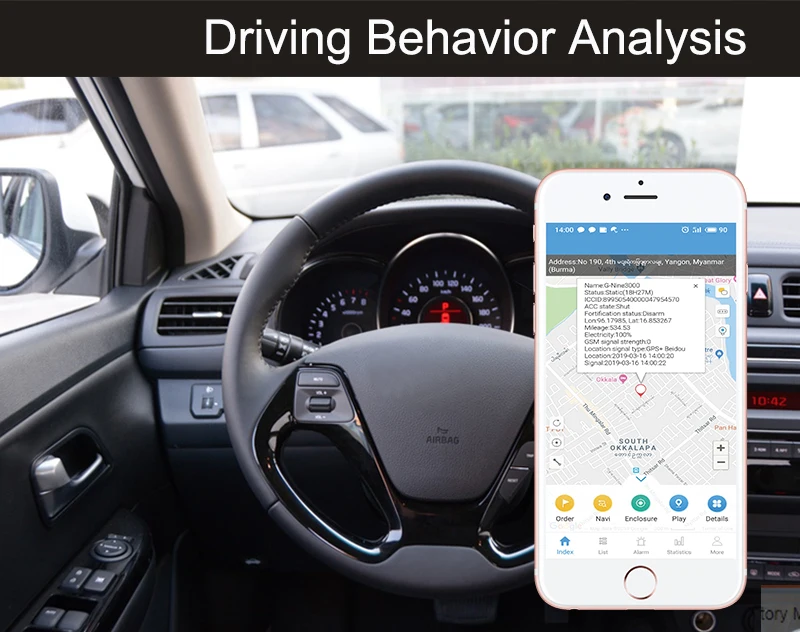

Driving Behavior Analysis

*Emergency acceleration;

*Emergency brake;

*Highest speed/Average speed/Driving time/mileage/Fuel consumption/Driving score/Postage measurement

*Average fuel consumption per 100km.



USB port debug

*we manufacture USB port on gps unit, for device debug by sms simply



Specification

OBD2 GPS Tracker for Telematic vehicle tracking
Material	ABS

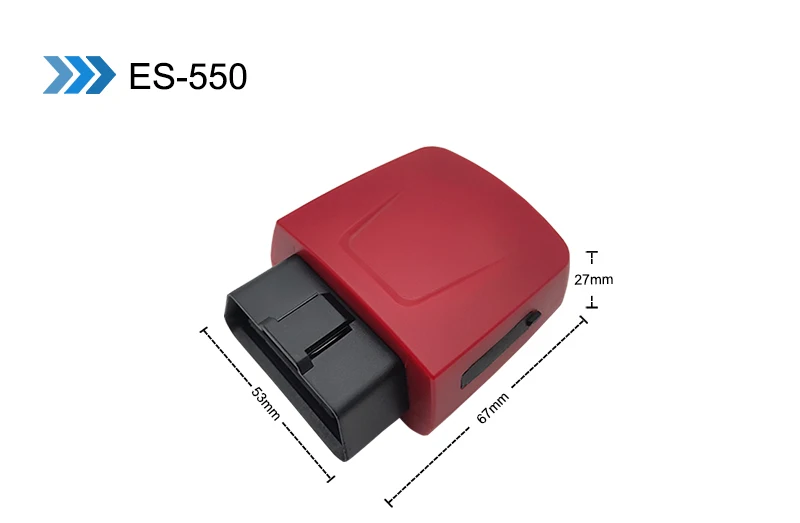

Size	67*53*27mm
Weight	0.12kg
Color	Red
Network	4G,3G,2G/GSM/GPRS
Frequency	B1/B3/B8/B38/B39/B40/B41
Working Temperature:	-20°C to +75°C
Working Current	150mA-200mA
GPS Sensitivity	-163dBm
GPS Positioning Accuracy	5-10CEP
Diagnostic protocol	ISO 9141-2 ISO 14230-4 ISO 15765-4 SAE J1939(Custimized) SAE J1587/J1708(Custimized)
Working Voltage	9-36V DC
Interface	OBD Port: Support 16 pin standard OBDII port.
Positioning Mode	GPS, LBS







1.Items are only shipped after payment is received
2.We ship item via EMS,DHL,UPS,FEDEX,TNT or Airmail.
3.Free shipping to select countries,pls check the shipping &packing list for details.
4.Delivery time:
   *UPS.DHL,FEDEX,TNT express uaually take 3-5 work days dependent on the country delivery to.
   *EMS express shipping usually take 5-8 work days dependent on the country drlivery to.
   *HK Registered airmail: In common ship to Asia,West Euro,North Ameria around 7-15 working days,ship to South America,Mid-East,East Euro,Africa around 15-30 work days.
