JIS F7364 Cast Iron 10K Gate Valve


Material Table





















































Part



Material



CLASS B



CLASS C



Body



FC200



Bonnet



FC200



Seat (Body)



BC6



SUS 420



Seat (shutter)



BC6



SUS 420



Stem



C377IBD OR BE



SUS 420



Gland Packing



BC6



Gasket



NON-ASBESTOS



Handwheel



FC200



Disc



FC200

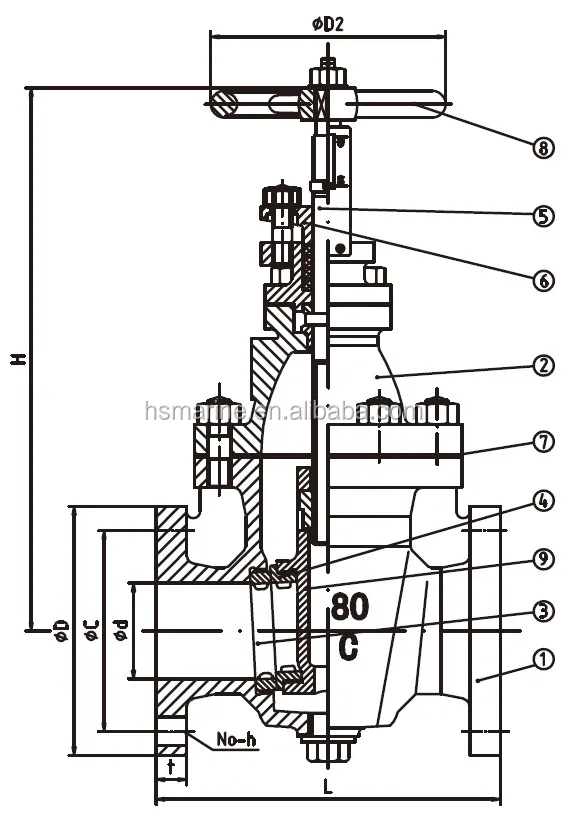

Drawing

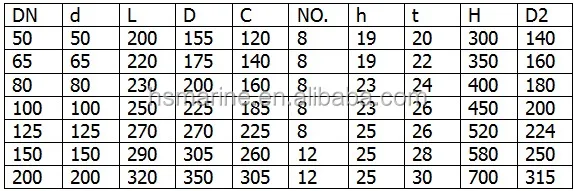

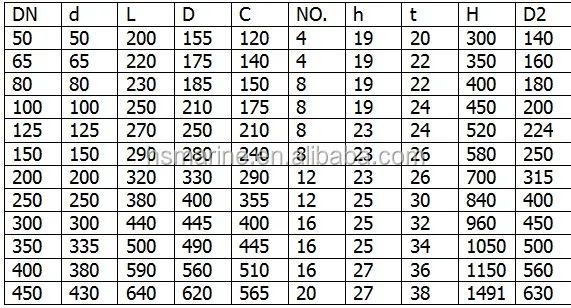

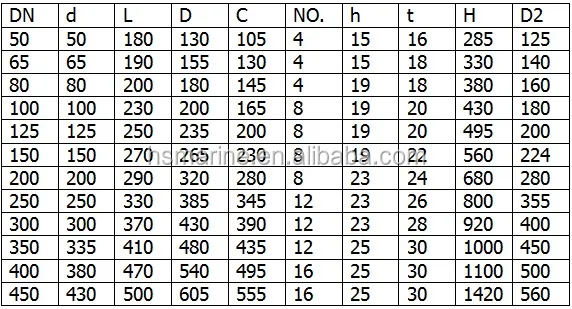

Size Table


JIS F7363 Cast Iron 5K Gate Valve







JIS F7364 Cast Iron 10K Gate Valve







JIS F7369 Cast Iron 16K Gate Valve







Packing & Delivery













PackingExport packing
DeliveryIt depends on customer's request
