Feature:
Feetech smart servo is specifically designed for applications that require a lot of strong and complex actuation,
such as humanoid robots, hexapod robots, and robotic arms.
these servos are capable of 360°continuous rotation while
still offering position control over an effective range of 360°.
They feature a TTL serial 3P interface or RS485 4P interface that is used to configure and
control the servo and get feedback about position, speed, and temperature.
Multiple servos can be daisy-chained on the same serial bus.
Specifications:
Operating Voltage | 12V |
Stall Torque | 40kg.cm |
No Load Speed | 65rpm |
Weight | 100g |
Operating Angle | 0° ~ 360° |
Command signal | RS485 |
Protocol | Half duplex Asynchronous Serial Communication |

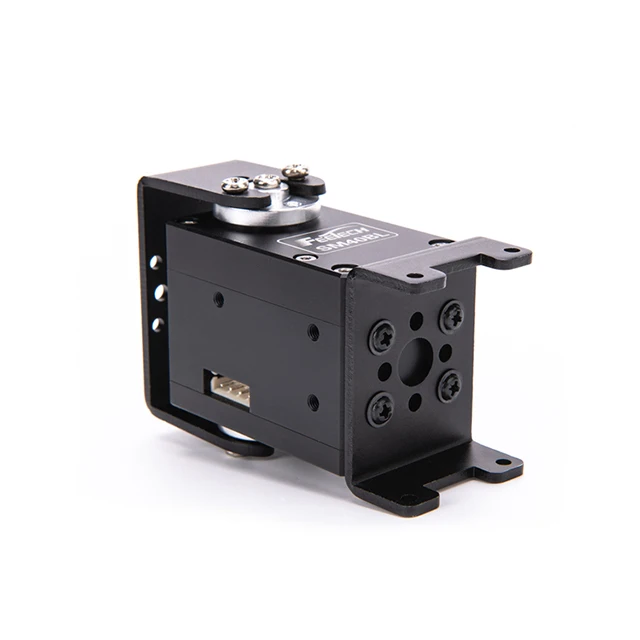

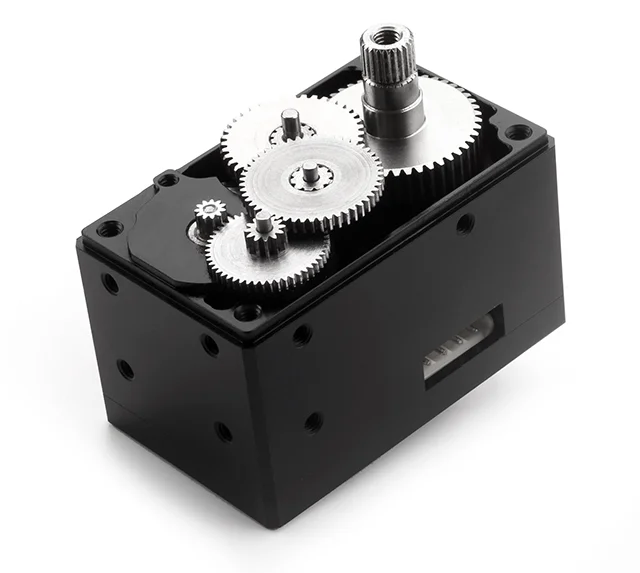

Product Details:

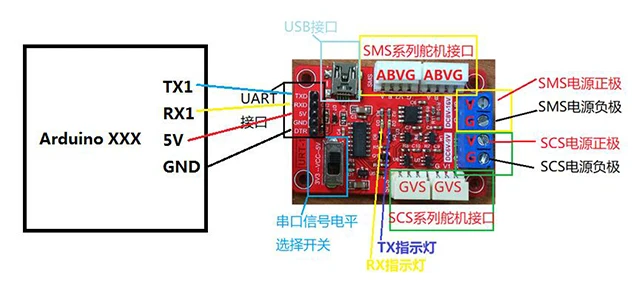

Feetech Debug Software:
Position Feedback Curve:

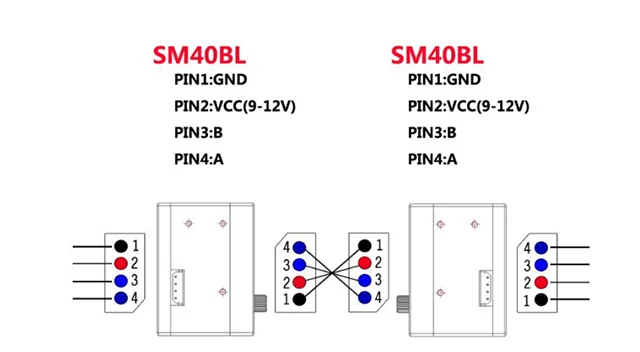

Electrical Interface:
Packing:
1-PE bag (A servo + accessory)
2-Box (A servo + accessory)
Specialized in ODM and OEM and Custom Made
we can provide electronic design,
structure design and production of one-stop customized serive,
Please feel free to share with me your idea.
Payment
We accept pay by PayPal,Alipay, Western Union, and Bank Transfer payment methods. After we receive your payment, we will arrange shipment. All banking charges and interest are charged to purchasers.
Warranty Procedure
As long as you choose to use FEETECH products, you can enjoy the warranty service that we provide. Please print our Repair Request Form (.PDF, .DOC) and fill it out in its entirety, being as comprehensive as possible, in order to receive the best possible service.
Warranty Period
All FEETECH products are warranted against defects for a period of one (1) years from the date of purchase. During this period we will repair or replace (at our discretion) any defective products. You should always retain your original receipt as proof of the date of purchase.
Our certificate:
Q:How about your quality?
A:Our quality will be good,and the goods have been checked and tested one by one before shipping.
Q:How long for the delivery once we place order?
A:The lead time is declded the item you ordered and the quantity.
For normal order,the lead time is about in 5-7 days,
If big quantity or OEM,the lead time will be some days more.
Q:The price you are offering is with shipping costs included?
A:The price does not include the shipping cost.We offer several
shipping solutions,make sure customers choose the most economical one.
Q:Do you have After-Sales Service?
A:Of course,We have special department to do it,and if you have any technology
problem,our eingeer will give your answer.
