Product Description
250 w mono solar cells 250w monocrystalline solar panel
Power | 250w | 255w | 260w | 265w | 270w | 275w | |||||
Powe Tolerance | 3% | 3% | 3% | 3% | 3% | 3% | |||||
Working Voltage(Vmp/V) | 59.9v | 60.7v | 61.6v | 61.9v | 62.3v | 62.8v | |||||
Working Current(Lsc/A) | 5.58A | 5.60A | 5.63A | 5.72A | 5.84A | 6.16A | |||||
Open Circuit Voltage(Vmp/V) | 47.9V | 48.3V | 49.2V | 49.5V | 49.9V | 50.3V | |||||
Short Circuit Current(Lsc/A) | 5.22A | 5.28A | 5.29A | 5.35A | 5.41A | 5.47A | |||||
Cell Efficiency | 17.4% | 17.6% | 18% | 18.4% | 18.8% | 19% | |||||
Size | 1580*1060*45mm | ||||||||||
Cell | mono 96pcs | ||||||||||
Net Weight | 22.5kg | ||||||||||
Max System Voltage | 1000V DC | ||||||||||
Frame | Aluminium-alloy | ||||||||||

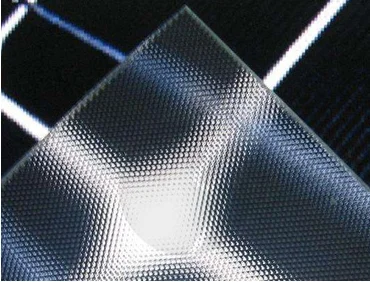

Glass
* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness

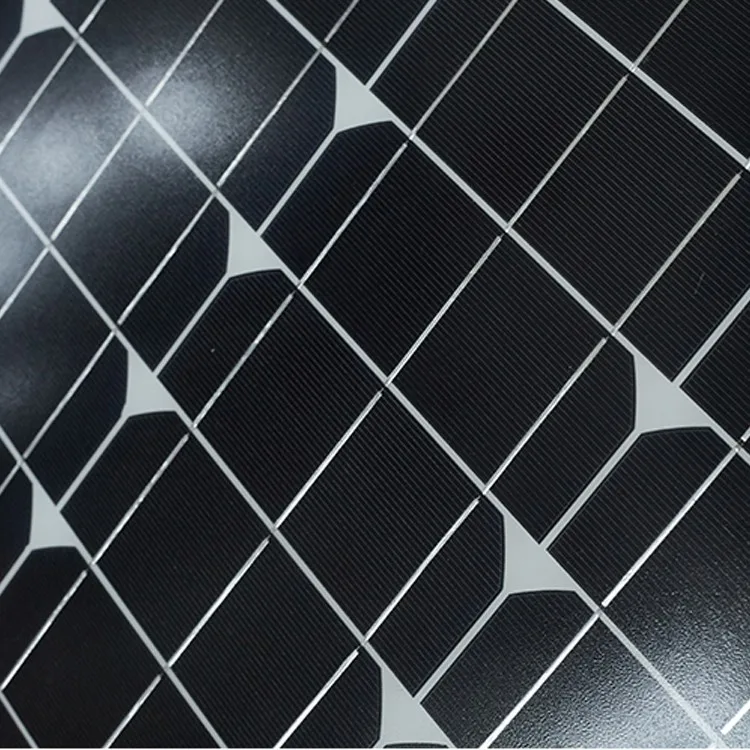

Solar Cell
* High output-power: conversation efficiency is 17%-20%
* High shunt-resistance: adapt the several environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate

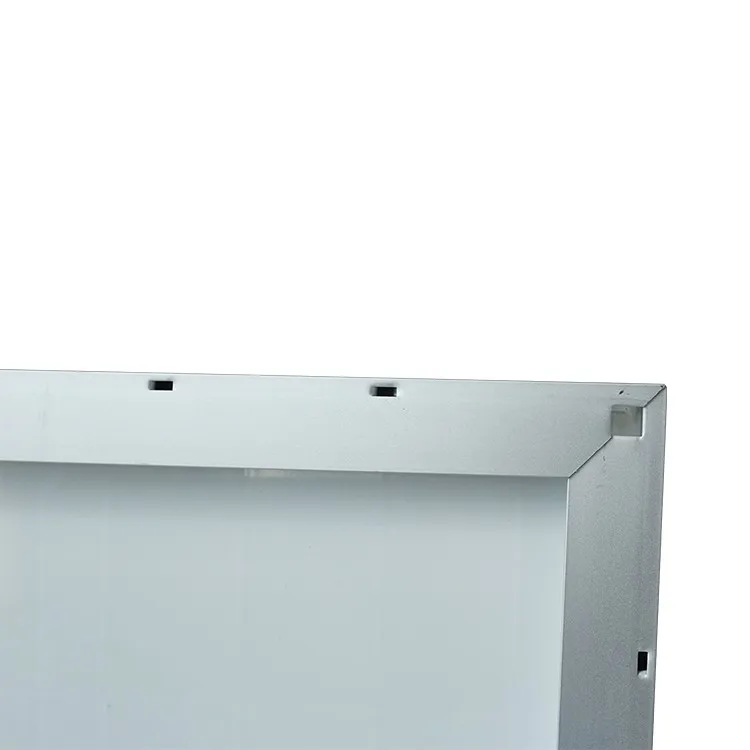

Frame
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request

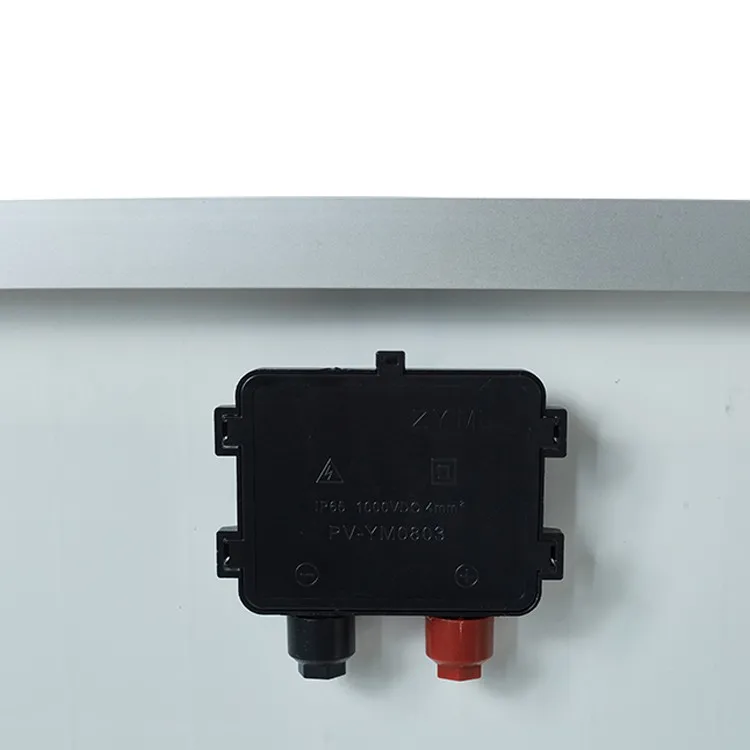

Junction Box
* Conventional standalone edition and engineering custom edition
* Quality diode ensures module running safety
* IP65 protection level
* Heat dissipation
* Long service life

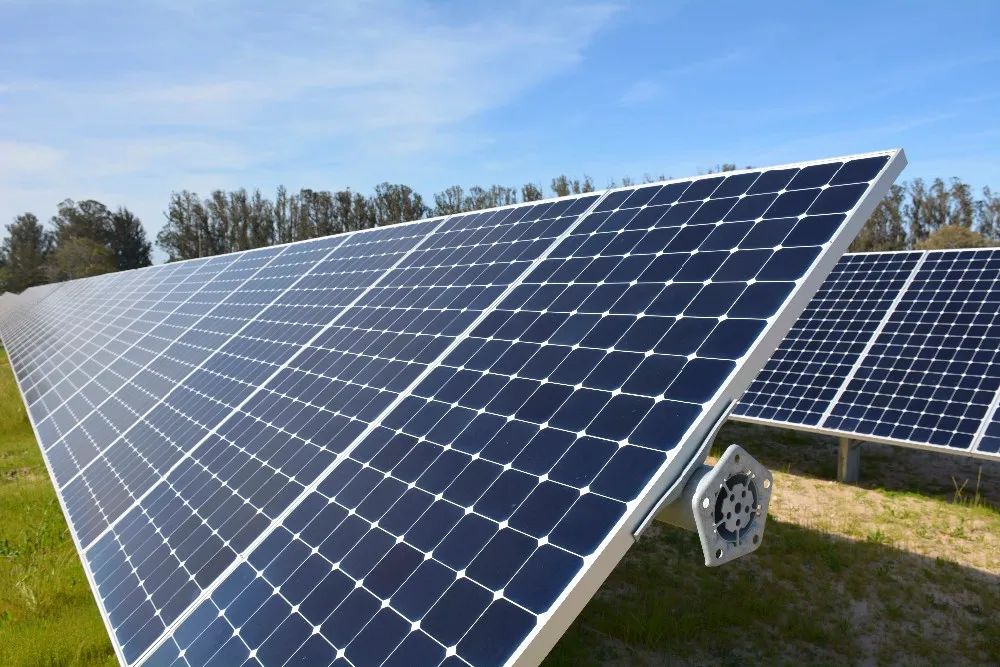

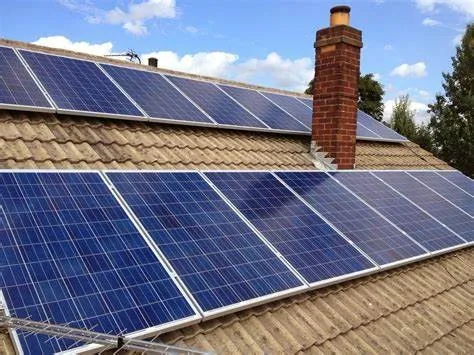

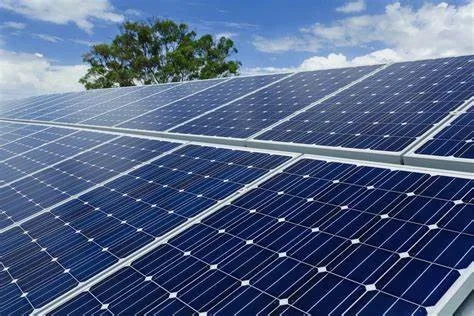

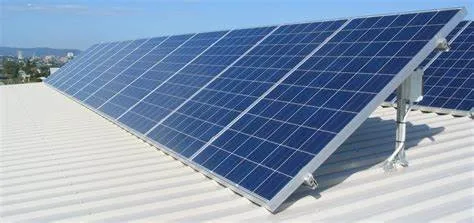

Project
Related Products
Our Service
1.The company can provide solutions for the application of solar street lamps, high-rod lamps, LED street lamps, complementary lighting lamps, solar wind hybrid street light and industrial and mining lamps.
2.Optimized product parameters according to customers' specific needs, and provided the best product design scheme.
3.Organize production, transportation, installation, commissioning, personnel training and maintenance during the guarantee period.
4.Provide the authoritative testing report of products and other technical support.
Our Company
Certifications
Packing & Delivery
FAQ
