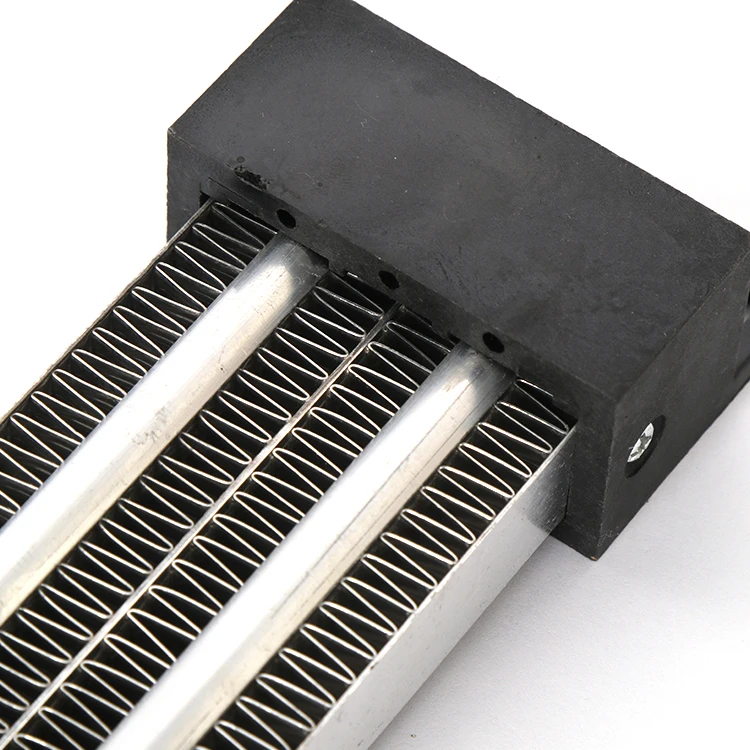

1000w 220v ceramic air fan Electric ptc heater elements for hot melt glue gun
Unlike traditional heating elements that use a resistance wire such as Nichrome to generate heat, PTC
heater is made of PTC ceramic heating element and aluminum tube. It is an automatic constant
temperature heater and does not need any additional temperature applications.it is a new kind heater in

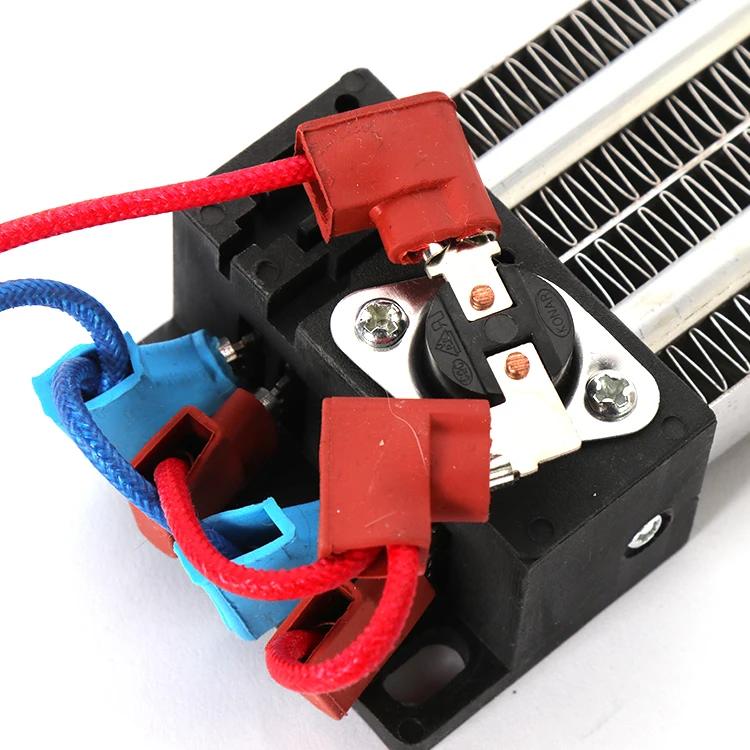

the market .It is fixed by a pair of metal electrodes with leads on both sides of PTC element.
| voltage | 120-240V AC/DC* (min. 110V, max. 265V) |
| temperature | -45 to +70 °C (-49 to +158 °F) |
| humidity | max. 90 % RH (non-condensing) |
| Protection type | IP54 / II (double insulated) |
| Mounting | screw fixing |
| Fitting position | variable |
| Heater body | aluminium, anodised |
| approvals | VDE + UL File No. E254776 |

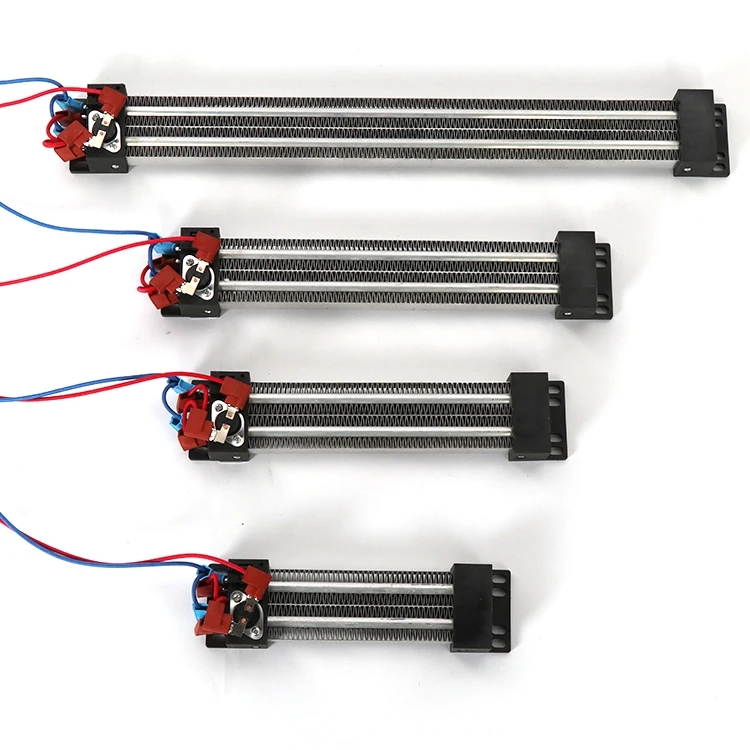

| Size | Voltage | Power | length dis | Width dis | Length | Width | Aluminum length | Aluminum width |
| 120*50mm | 220V AC | 500W | 120mm | 40mm | 138mm | 52mm | 57mm | 43mm |
| 175*50mm | 800W | 175mm | 193mm | 112mm | ||||
| 230*50mm | 1000W | 230mm | 248mm | 167mm | ||||
| 280*50mm | 1200W | 280mm | 298mm | 217mm | ||||
| 345*50mm | 1500W | 345mm | 363mm | 282mm | ||||
| 390*50mm | 2000W | 345mm | 408mm | 282mm | ||||
| 430*50mm | 2000W | 430mm | 448mm | 367mm | ||||
| 490*50mm | 2000W | 490mm | 508mm | 427mm | ||||
| 120*75mm | 1000W | 120mm | 95mm | 160mm | 110mm | 97mm | 72mm | |
| 175*75mm | 1500W | 175mm | 215mm | 152mm | ||||
| 230*75mm | 2000W | 230mm | 270mm | 207mm | ||||
| 280*75mm | 2000W | 280mm | 320mm | 257mm | ||||
| 120*75mm | 1000W | 120mm | 68mm | 140mm | 75mm | 97mm | 75mm | |
| 175*75mm | 1500W | 175mm | 195mm | 152mm | ||||
| 230*75mm | 2000W | 230mm | 250mm | 207mm | ||||
| 280*75mm | 2000W | 280mm | 300mm | 257mm |
Main advantage :
1.High effective,
2.protects rank high
3.It can control the temperature by itself
4.leaks electric current small,life long and do not generate RFI noise.
5. It doesn't turn to red or get fire when it is working.
6.Even with the regard to voltage changes, the constant temperature mechanism will be effective.
PTC heater is widely used in:
Hot milk device ,coffee heater,Water heater , the physiotherapy device,Warm foot device ,
extruding machine fan heater ,heat preservation cup ,physical therapy apparatus
