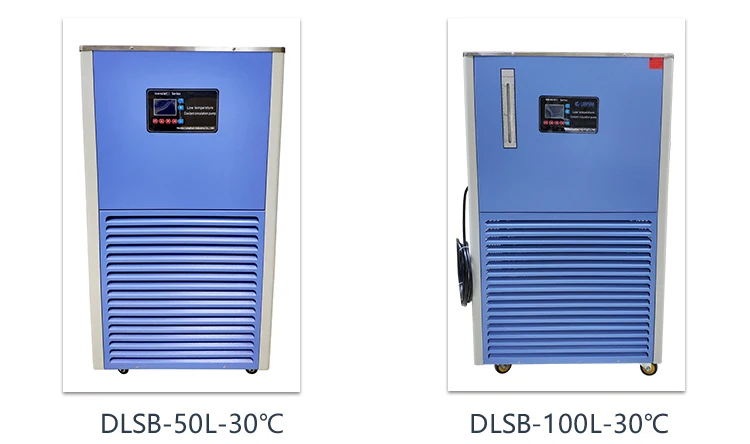

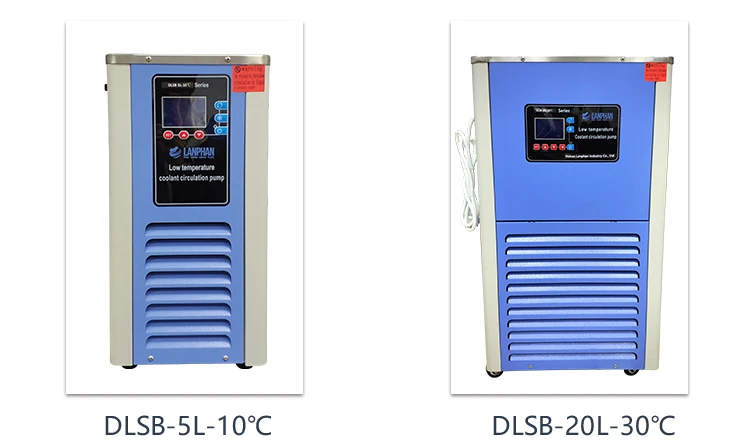

The capacity of our refrigeration pump can be 5L-500L Temperature ranges from room temperature to -120 degrees
Product Description

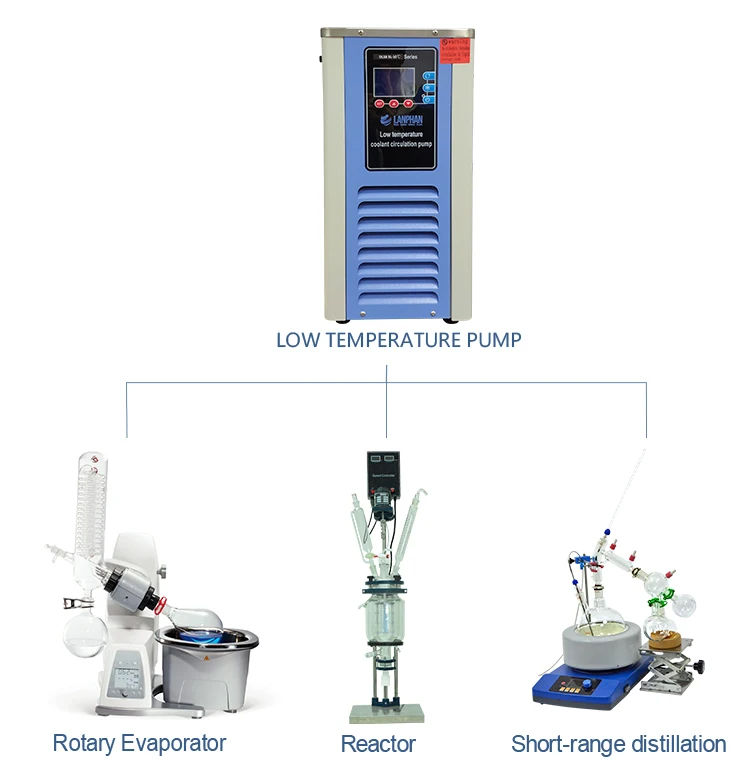

The application of Low temperature circulating pump:DLSB low temperature pump adopts mechanical refrigeration low temperature circulating equipment and provide constant current and constant voltage circulating liquid to meet the requirement of the decreasing instrument (electric microscope, electricity probe,x-ray machine,laser reactor and accelerator) so as to guarantee the required working temperature The machine is an essential to make sure the normal working condition for the device adopting constant current and constant pressure to cool in the condition of lacking water place ,bad quality of water and higher temperature.It can provide low temperature liquid to have multiple function of chemical reaction and medicine storage collocated with rotary evaporator,vacuum drying oven,circulating water multiple pump,magnetic force stirrer.It is especially used for different kinds of chemical biology ,physical lab which needed low temperature.It is the essential lab instrument for pharmacy,food industry,metallurgical industry and college scientific research.
Model name

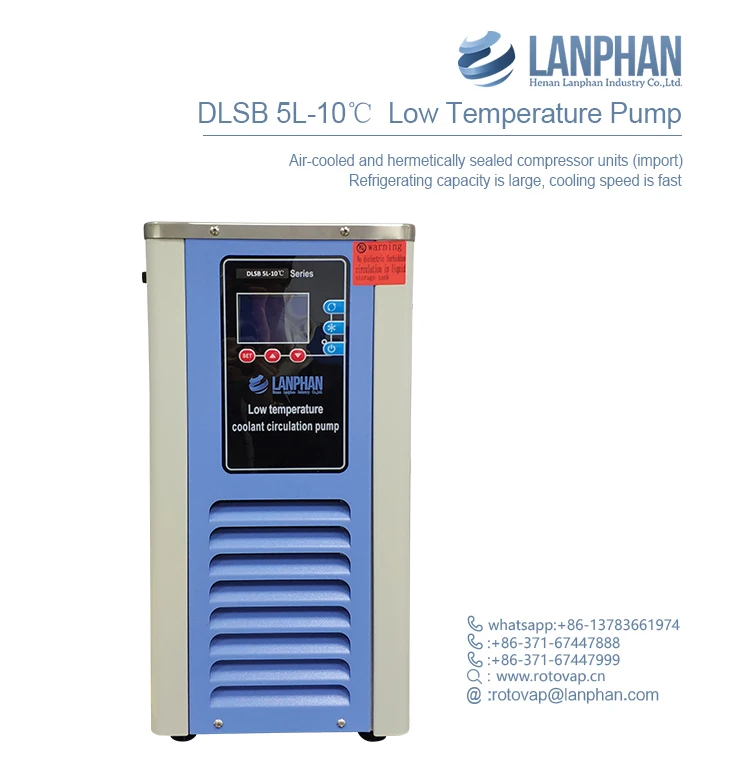

DLSB 5L-10°C
Tank volume (L)
5
lowest no-load temperature(°C)
-15
Using temperature range (°C)
room temperature—-15
best temperature range(°C)
5~25
Environmental relative humidity (%)
≤70
Working power supply (V/HZ)
single phase220-50
temperature display mode
liquid crystal
temperature stability(°C)
±2
Sensor index
Pt100
Instrument adjusting range (°C)
±150
set way
Arbitrary adjustment of Settings in the range of use
safety protection
delay,leakage,over current,overheat
output refrigerating capacity (W)
10°C
620
0°C
460
-10°C
280
-20°C
-
Total machine power (W)
420
Machine current (A)
2.1
refrigerant
134A
Circulating pump
Power(w)
100
Flow rate(L/min)
20
Lift(M)
4~6
external loop interface
Threaded joint 1\2 inches
opening size(mm)
160×160
tank shape
square
Internal diameter and height of liquid storage tank (mm)
170×170×170
Overall appearance size (mm)
400×260×530
Machine weight (kg)
28
fuse
5A
matching parts
one set
Turn on and off: The right turn to turn on the machine: Add the appropriate refrigerating medium—connect the power with the special power supply—turn off the circulation switch—press the power button—open the circulation switch—open the refrigerator switch—open the cooling equipment The right turn to turn off the machine.Turn off the cooling equipment—turn off the refrigerator switch—turn off the circulation switch(stirring switch)—turn off the outlet valve(or discharge the cooling medium)—turn off the power supply —disconnect circuit breaker—disconnect the power line from the power supply—clean the equipment.
