Белый порошковый корпус 110 Вт лм/Вт линейный светильник DLC для высоких промышленных помещений с регулируемой


Поделиться:

Цена:34,02 $ - 35,82 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

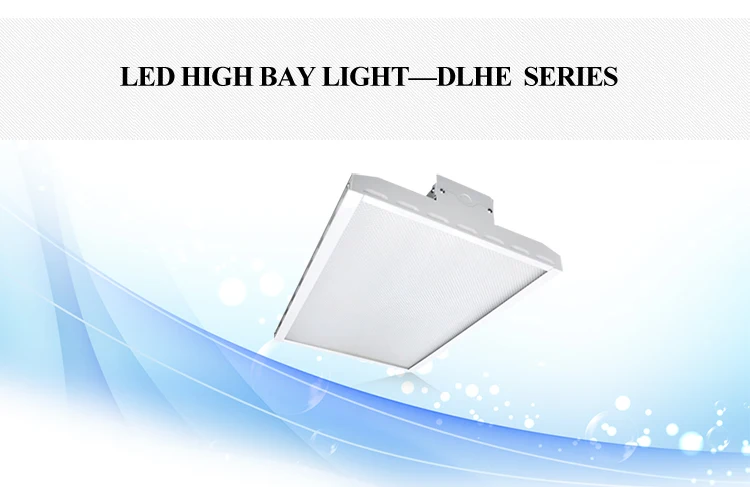

White Powder Housing 110W 130LM/W Dimmable DLC Linear High Bay Light



Product Description




















Technical       data:













Model: DLHE110


Fixture Demension:23.65"x12.60"x3.55"


Output power: 110W


Luminous Flux: 14300lm


Light efficiency: 130lm/W


LED: LED SMD 2835


Driver:Chinese LED driver



CRI: >80


CCT: 4000k-6000k


Rated input: 120-27V


Beam Angle: 160°


Certification: ETL/DLC


Warranty: 50000 hours


Dimmable or Dali driver is available on request











Housing for LED Linear high bay light:


High quality steel housing, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating.





Diffuser for LED Linear high bay light:


Polycarbonate, Acrylic LED Diffuser Specially for LED.





LED type for LED linear high bay light:


It uses Led SMD 2835.





Electrical for LED Linear high bay light:


Arcata,X-power or Famous logo 0-10V Dimmable driver.





Mounting for LED Linear high bay light:


Suspended mounting by chain or stainless steel cable.





Main applications:


Garege / Warehouse / Gym / Manufacturing place / Super-market / Hyper-market / Parking area / other public places.










High efficiency saves energy:


High performance LED lighting 14300lms at 5000k daylight using 110W.Energy saving and lower maintenance, energy-efficient LED technology is 30% more efficient than T5HO flourescent to help save money.





Luminous uniformity:


Uniformity lighting distribution. The reasonable distance  between the LED SMD and the Polycarbonate / frosted Acrylicdiffuser, it improves the brightness uniformity distribution when it is lighting up.





Luminous uniformity:


Direct light panel is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light, because the light SMD are arranged in a matrix, so the reasonable distance between the LED SMD and the PC diffuser, so that the light doesn't have a dark zone, and it improves the brightness uniformity when it's lighting up.





Lntelligent control:


It can be Chinese dimmable driver to meet for the different places.





Long life:


The heat dissipation provides enough space to ensure the long life of the light. The light life has more than 50000hrs.





Specifications:






















































Model



Power



Leds



Luminous Flux


(lm)



Efficiency (lm/w)



CRI



CCT



DLHE110



110



2835



14300



130



>80



4000k-6000k



DLHE165



165



2835



21450



130



>80



4000k-6000k



DLHE225



225



2835



29250



130



>80



4000k-6000k



DLHE325



325



2835



42250



130



>80



4000k-6000k






Packing details:







































Model



Dimension (L*W*H)(inch)



Packing size (inch)



Qty/ctn



DLHE110



23.65x12.60x3.55



24.40x13.00x7.88



2



DLHE165



23.65x17.30x3.55



24.40x17.75x7.88



2



DLHE225



45.87x12.60x3.55



46.65x13.00x7.88



2



DLHE325



45.87x17.30x3.55



46.65x17.75x7.88



2






Product Details






      Improving the segmented linear heat dissipation                           The light is easy to be installed by stainless


      structure on both sides of the lamp, the heat                                 steel wire or cable.


      dissipation problem of large power LED highbay


      is solved.




      Prismer, frosted Acrylic and clean LED diffuser for the client's choice.




       Specially heated sink and installing structure                               It uses Arcata 0-10v dimmable Driver,and it can


       design, it is easy to install the light.                                              gives the high bay long life.





About Us






It has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection.Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit.







Certifications







FAQ




Q1: Can I have a sample order for LED light?


A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.





Q2: What about the lead time?


A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.





Q3: Do you have any MOQ limit for LED light order?


A: 1pc for sample order is available.





Q4: How do you ship the goods and how long does it take to arrive?


A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.





Q5: How to place an order for LED light?


A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.





Q6: Are you a factory? A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters.


Q7: Do you offer guarantee for the products? A: Yes, we offer 3-5 years warranty to our products.
