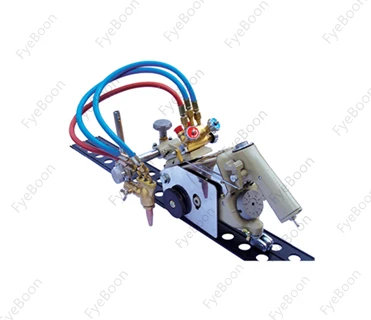

Хороший портативный газовый резак для кривой
- Категории: Газорезательная машина >>>
- Поставщик: Dalian,Fyeboon,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Info

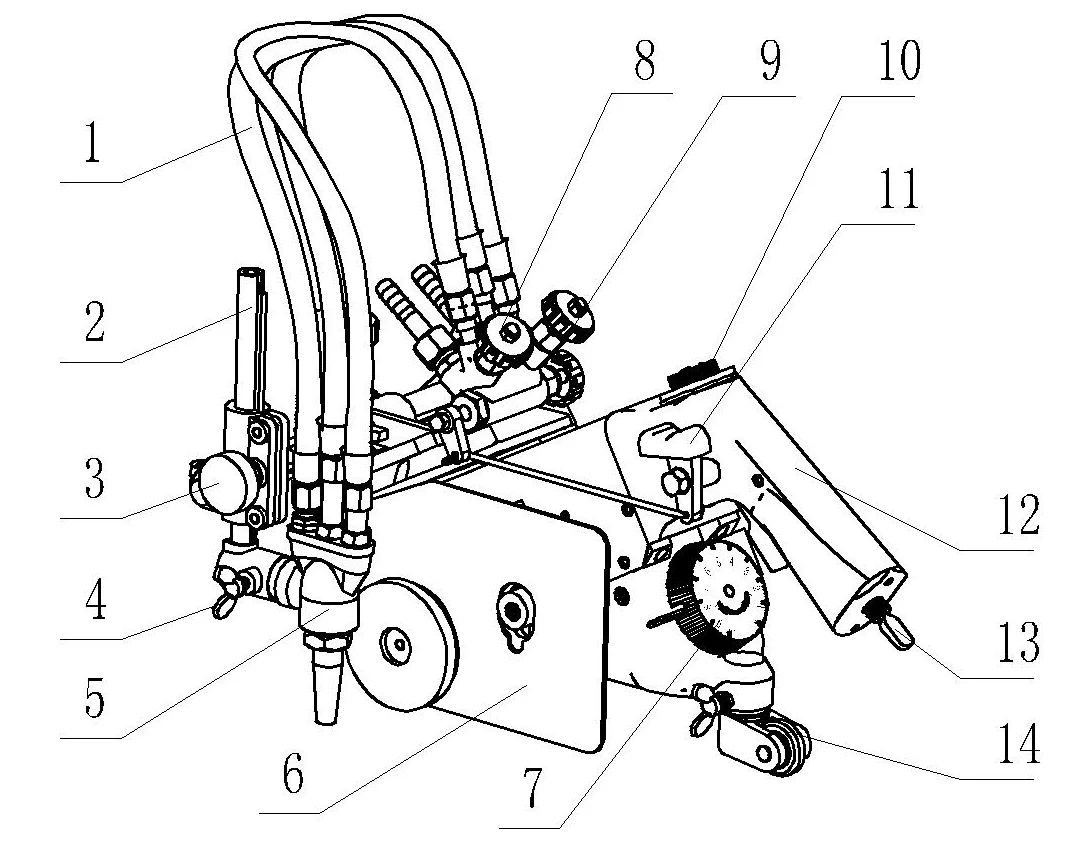

No. | Description | No. | Description |
1 | Adjusting handle: When traversing the handle, the torch moves left or right. | 8 | Adjusting handle: Adjust the moving speed. |
2 | Adjusting handle: When traversing the handle, the torch moves up or down. | 9 | Power socket |
3 | Contrate gear rack | 10 | Cutting oxygen switch |
4 | Thermal baffle: Stop the thermal diffuse outside. | 11 | Gas delivery hose |
5 | balance-weight | 12 | Normal-reverse switch |
6 | Two-port valve: Adjust the gas-flow rate. | 13 | Universal wheel |
7 | On-off handle: Hold tightly the machine is off and hold loosely the machine is automatically on. | 14 | Cutting nozzle |
HK-93 | ||
1 | The main body is made of aluminum of high strength by die-casting | |
2 | The hoses of oxygen attached with quick switch | |
3 | Operation can be done by single hand, to cut for different shapes | |
4 | Such as side corner and curve, and also for swerve cutting | |
5 | For straight cutting and also for bevel cutting of I, V (45°) , circle and curve cutting | |
HK-93 | ||||||
Straight Rail Length | 1800mm | Torch No. | One flame | |||
Power Source | AC 220V±10% | Speed Control | SCR Control | |||
Cutting Thickness | 6~100mm | Cutting Tip | Propane Nozzle/Acetylene Nozzle | |||
Dia. of Circle Cutting | 50-550mm | Bevel Angle | I, V (45°) | |||
Cutting Speed | 50-1000mm/min | Motor | DC110V 50HZ 30W 4200RPM | |||
Recommend Products
Contact
Exhibition & Feedback
Packing & Delivery
Payment & Service
File Service
Instruction Manual
Installation Video
Video Teaching
Video Teaching
Visual Service
Remotely diagnose problems
Reducing downtime and cost to send a field technician
Reducing downtime and cost to send a field technician
Training
Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Our Company
FAQ
Q1. How can I choose a suitable Portable Gas Cutter?
Just tell us what kind of rail ttype do you need, straight line or circular rail?
Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.
Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.
Competitive Semi Automatic Gas Cutting Machine with CE
