Usage:

Plasma cladding coating technology are widely used in cement industry, mining industry, mine treatment industry, powder industry, steel industry, and paper industry.

Plasma Cladding Advantage:

Main components:

Control part - - control all parts to stably run according to processing parameters;

Main power - -special DC power supplied to high no-load voltage of high-power steep subsidence;

Plasma torch - - transferred arc synchronous powder delivery flexible arc length life span plasma torch;

Powder delivery system - -no-lag synchronous switch, powder delivery and ceasing width parameter torch with arc extinction;

Water-cooling system - - thermostatic cooling plasma torch and cable with hydraulic pressure protection;

Machine driven system - - specially design according to actual workpiece;

Overalls - - specially design according to actual workpiece.

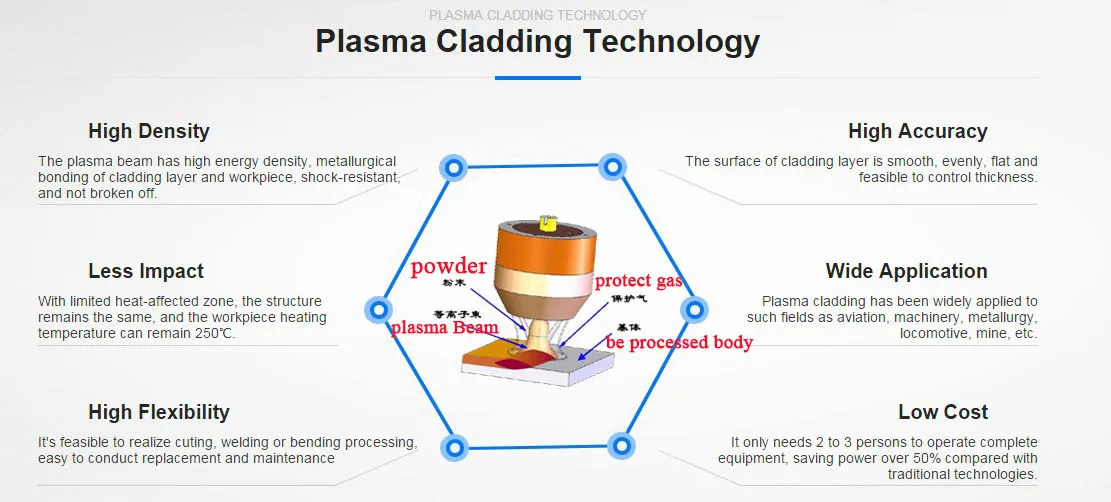

Technical characteristic:

1.As to the metal part surface with rustiness and oily soil, it's feasible to directly carry out plasma cladding without complicated preliminary treatment process of sand blasting, simple process, no preliminary treatment pollution, low cost and high efficiency.

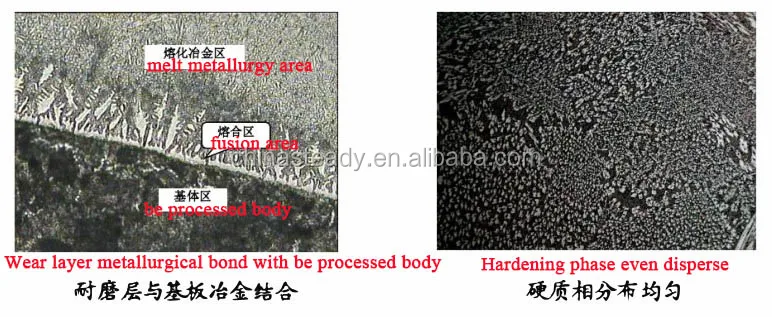

2.High energy density of plasma beam, simultaneous melting of base surface and alloy powder, ensure complete metallurgical bonding between alloy layer and base material, not falling out.

3.Plasma cladding layer is pure alloy or cermet coating with even thickness; overlay welding layer is non-uniform alloy layer diluted by plenty of iron melt, so its appearance and inherent quality are inferior to plasma cladding layer's.

4.Greatly improve operating environment, and eliminate noxious gas' harm to workers during overlay welding. Dynamic strength is reduced greatly, production efficiency has improved 10 times of overlay welding's, consumption reduces 20%, and greatly improve eco-friendly economic benefits.

Technical advantages:

1.As to the metal part surface with rustiness and oily soil, it's feasible to directly carry out plasma cladding without complicated preliminary treatment process like cleansing, no preliminary treatment pollution and break-even cost.

2.No specific needs towards operating environment, equipment without auxiliary demands like cooling down and dusting, and easy equipment repairing and maintenance.

3. Adopt digital-control automated control technique with simple operation, reliable and stable operation, feasible for industrial batch production.

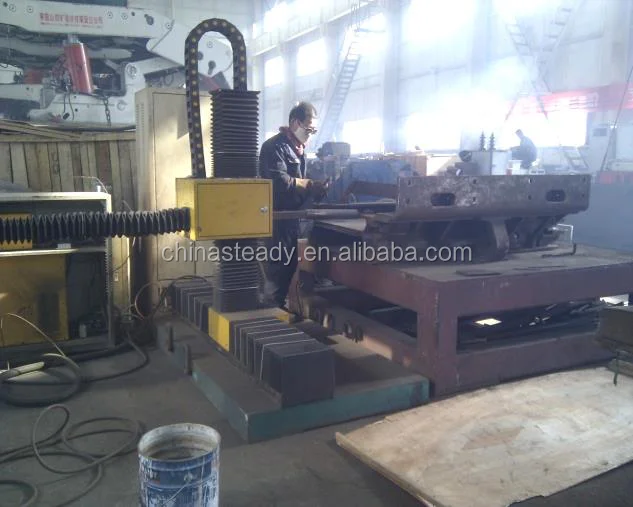

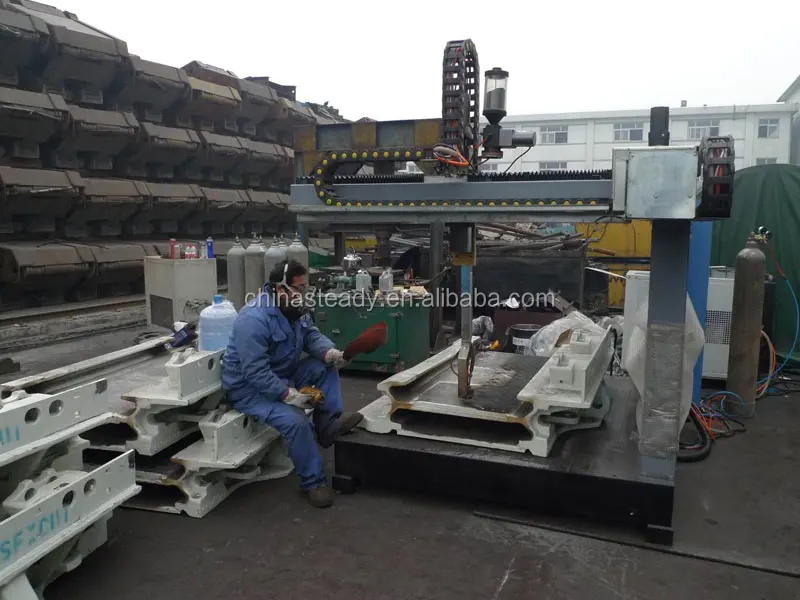

DRF-2 plasma cladding wear-resisting processing equipment

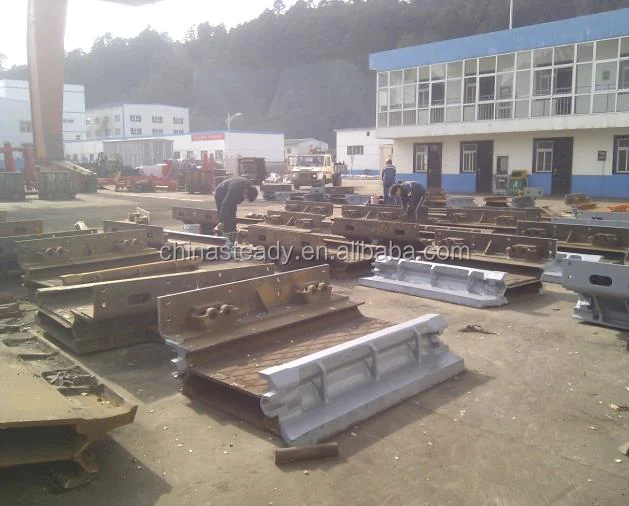

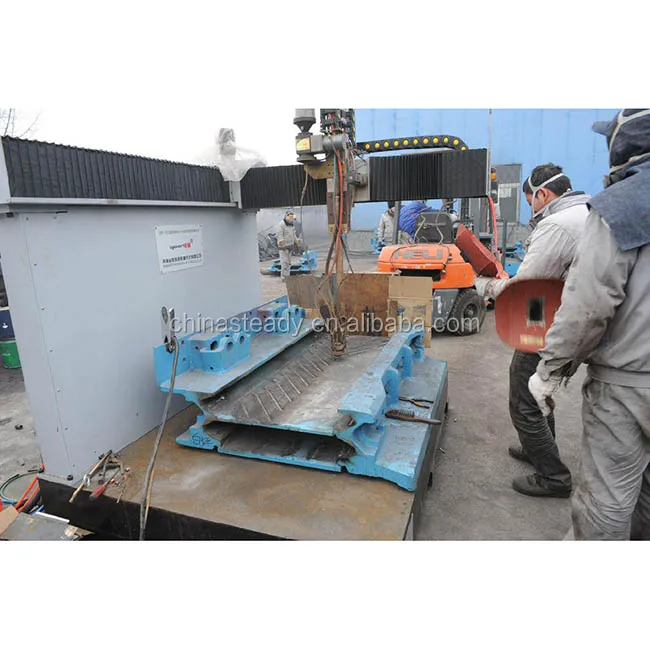

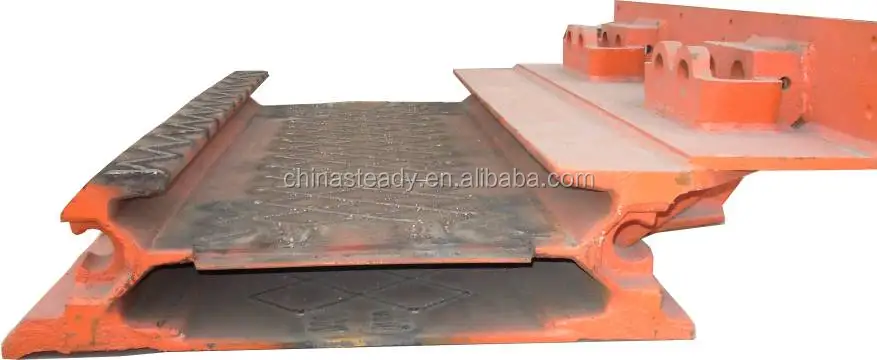

Mainly used for: 1. wear-resisting consolidation treatment of ground-level middle trough medium plate.

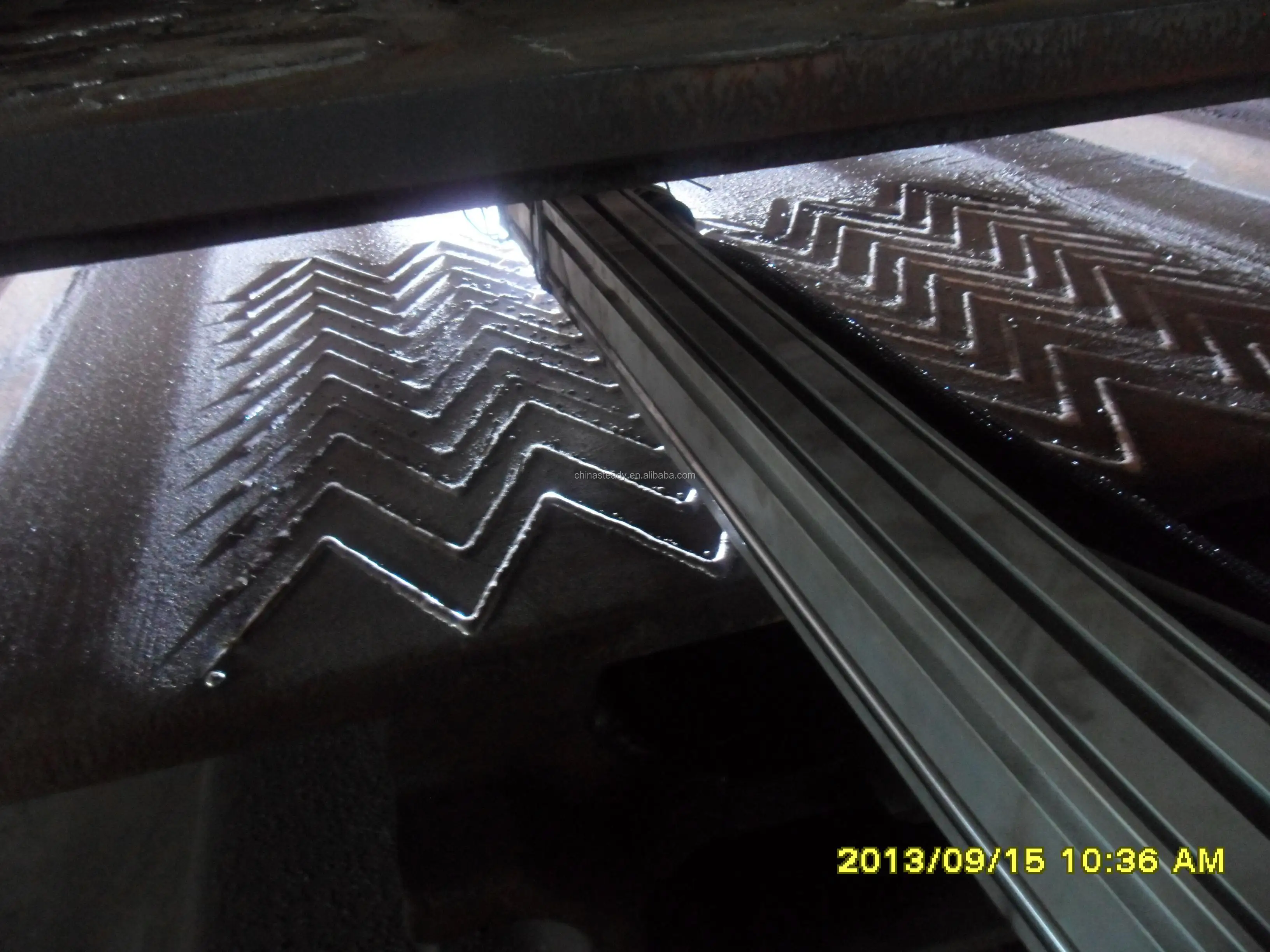

The use of plasma cladding coating
