Product Description

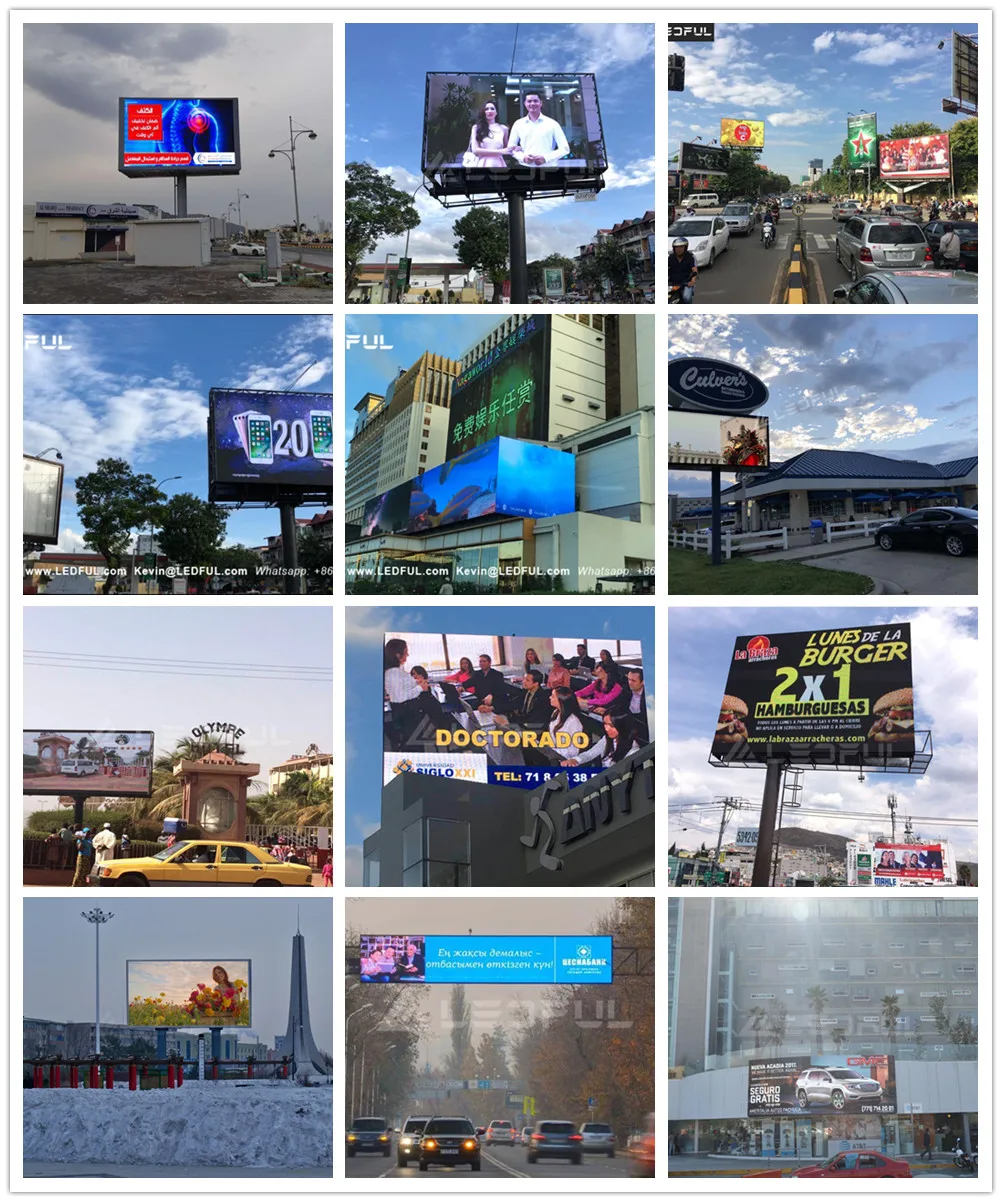

THE APPLICATION
Outdoor fixed applications such as commercial advertising, theme park, stadium scoreboard, shopping mall, transportation center, school, hotels, chain store etc.
Parameter | ||||||
Value | FS6 | FS8 | FS10 | |||
Pixel Pitch(mm) | 6.67 | 8 | 10 | |||
Pixel Matrix Per Sq.m | 22477 | 15625 | 10000 | |||
Pixel Configuration | SMD2727 | SMD2727 | SMD2727 | |||
Brightness (nits) | 6500 | 6800 | 7500 | |||
Scan | 1/6 | 1/5 | 1/2 | |||
Module Dimension | 320x320mm / 1.05x1.05ft | 320x320mm / 1.05x1.05ft | 320x320mm / 1.05x1.05ft | |||
Cabinet Dimension | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | 960x960mm / 3.15x3.15ft | |||
Cabinet Resolution | 144x144 | 120x120 | 96x96 | |||
Cabinet Weight | 37kg / 81Ib ( Iron) | 36kg / 79Ib (Iron) | 35kg / 77Ib ( Iron) | |||
Power Con. (Max / Avg) | 800 / 170 w/sq.m | 780 / 160 w/sq.m | 750 / 150 w/sq.m | |||
Service Access | Front | |||||
Refresh Rate (HZ) | ≥1920 | |||||
Grey Scale (bit) | 16 | |||||
Viewing Angle (H/V) | 140 / 140 | |||||
IP Rate | IP68 | |||||
Input Voltage (AC) | 110V / 240V | |||||
The Third Generation Front Service LED Display from LEDFUL
* LEDFUL first design for front service LED display is plastic shell with plastic lock,
* second design is plastic shell with die casting aluminum lock,
* now the third design is die casting aluminum shell and die casting aluminum lock.

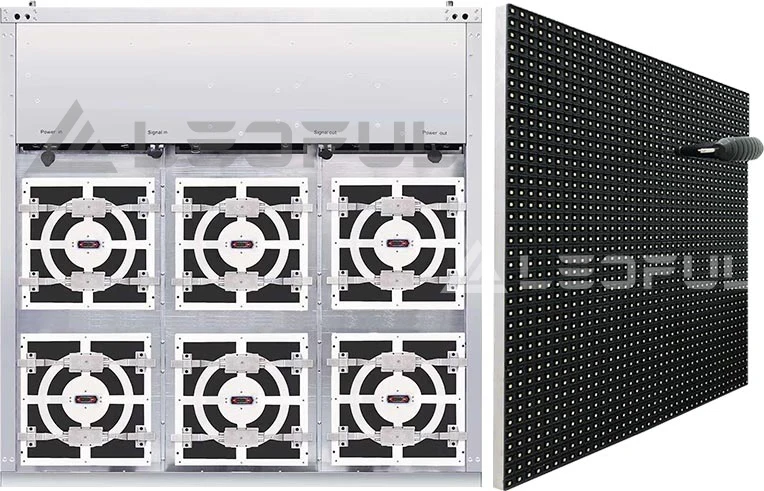

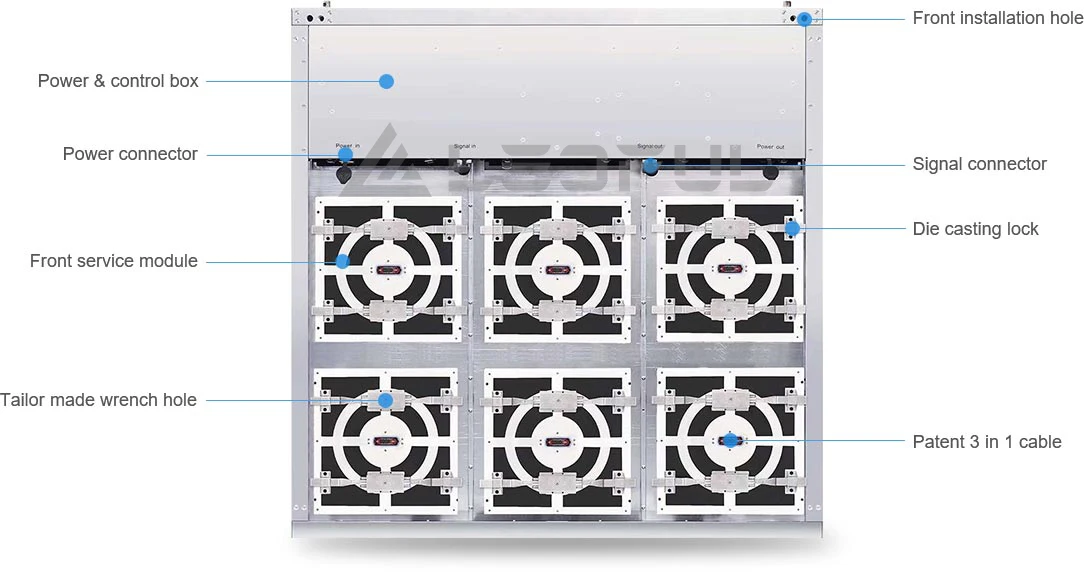

Full Front Service
Full front service, modules, power supply, receiver card, cables, etc can be replaced in front side.

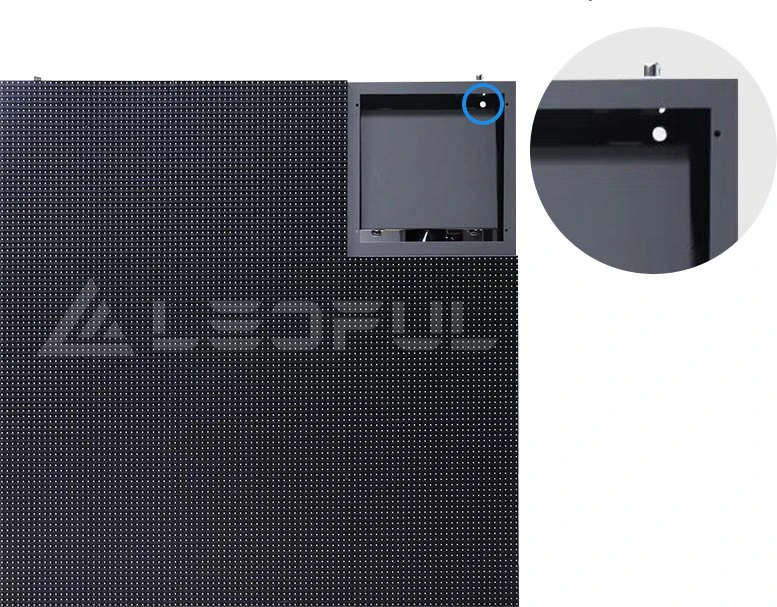

Front Installation
Front installation, the cabinets can be installed in front and mounted directly on the wall.

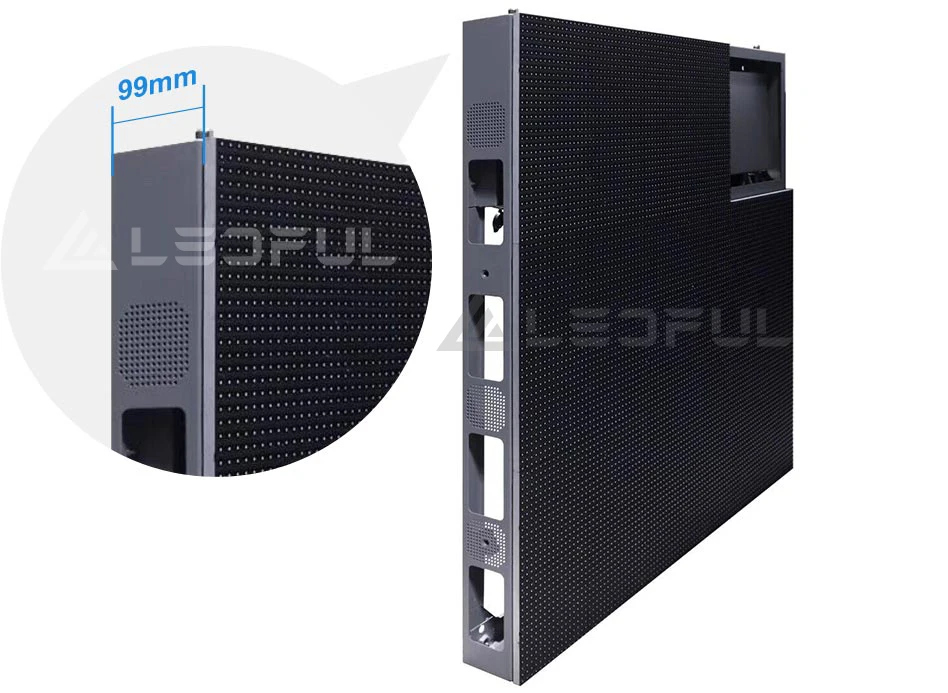

Super Thin
Super thin, it is only 99mm depth including LED modules

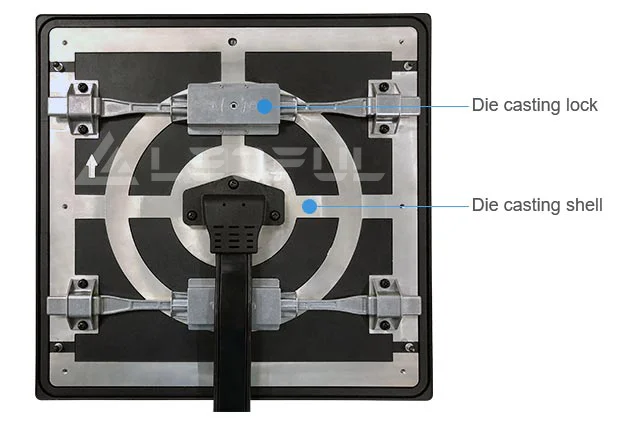

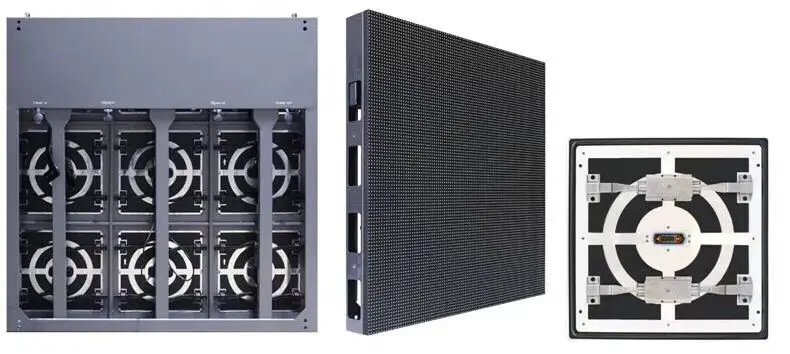

Die Casting Module
All Die casting, die casting modules make less tolerance,
die casting shell make better cooling,
die casting lock make longer durability.

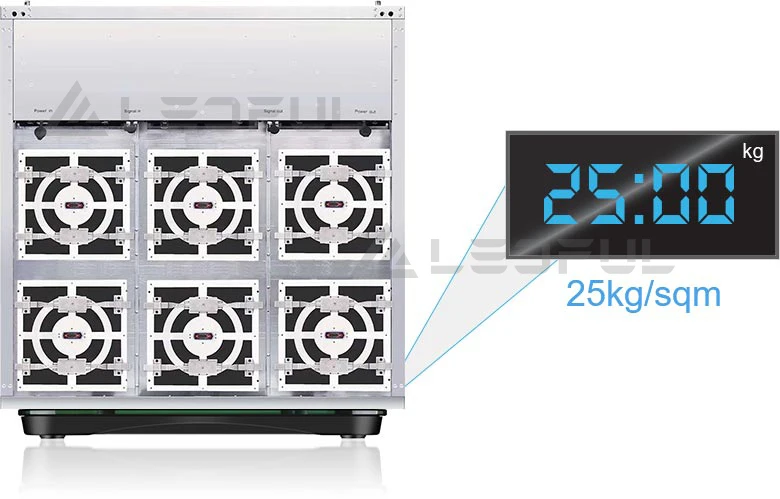

Light Weight
Light weight, it is only 25kg/sqm with aluminum profile cabinet.

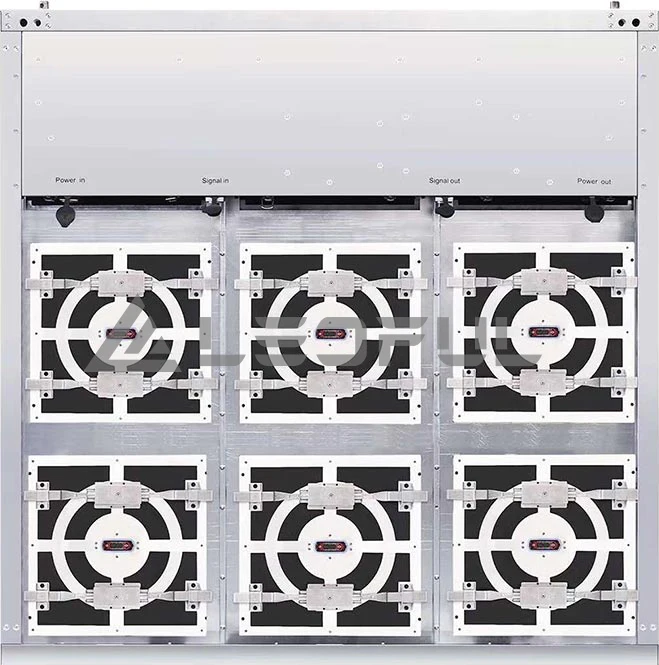

Clean and Clear
Clean and Clear, no cables visible on open backside

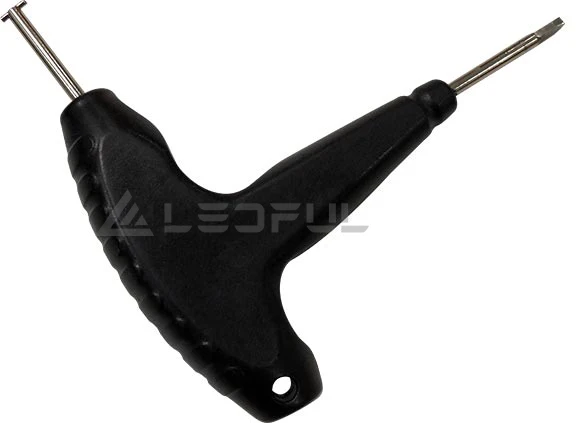

Easy & Quick Installation & Maintenance
Easy and Quick, customized, smart and quick front maintenance tool.
One side is for lock, the other side is for pulling, easy and fast front service

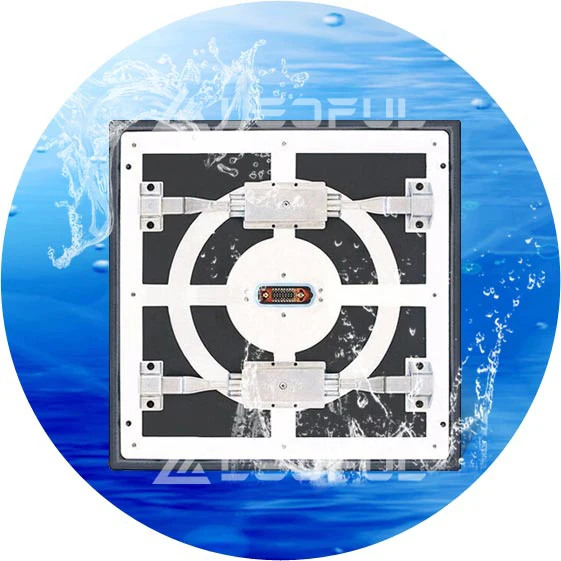

All Weather Resistant with IP67
All weather resistant with IP68 which can be put inside water.

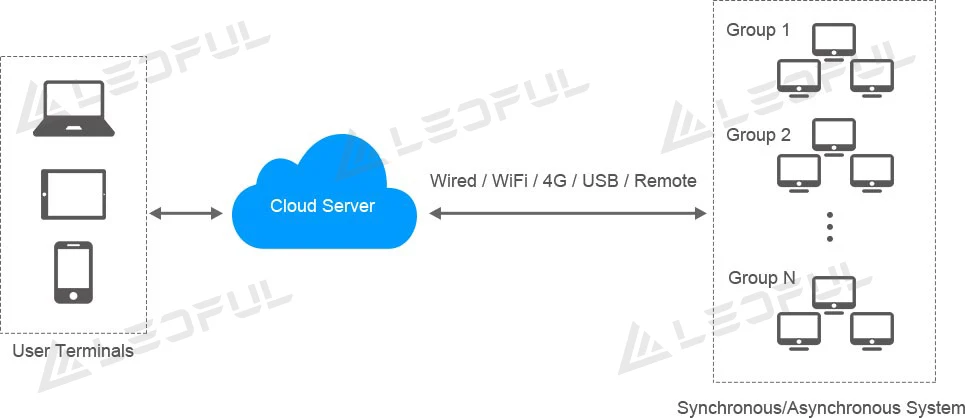

How to control LED display?
By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc.
Yes, you can control in your convenient management.
Many screens together?
No problem, your laptop can manage all of them whenever and wherever.
Ultra High / Low Temperature
FS series design for working in all weather outdoor environments.
High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

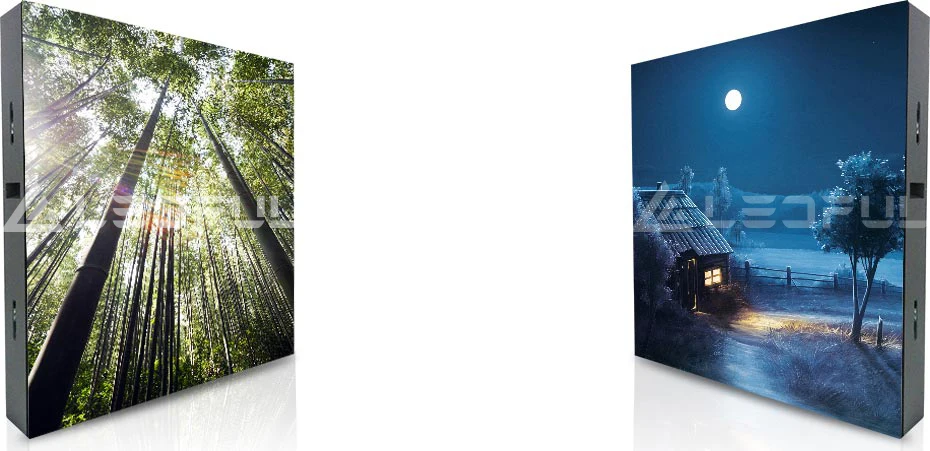

High Brightness & Auto Brightness
High bright and contrast ratio to make vivid color facing to the Sunlight.
Auto brightness saving energy besides protecting people in night time.
Application
Recommend Products
Our Company
>>>>>Why Choose LEDFUL
▲Deep Customized & OEM
▲Listen to you, think more for you.
▲Lifelong maintenance with reasonable price
▲Clear cost initially to save your time and money.
▲Provide with innovative and satisfying products
▲Excellent product quality, quick and professional services
▲Always ready for your any change on LED display details.
▲Recommend the best proper solution for your LED project.
▲Catch things what you missed before LED display production.
▲Take good care of each detail for your products, packages,shipping
>>>>>Best Balance of Quality & Price
Certificate
Packing & Delivery
Our Service
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
