3000-15000 литровый резервуар для воды разбрызгиватель высокого

Complete Vehicle Parameter

Vehicle

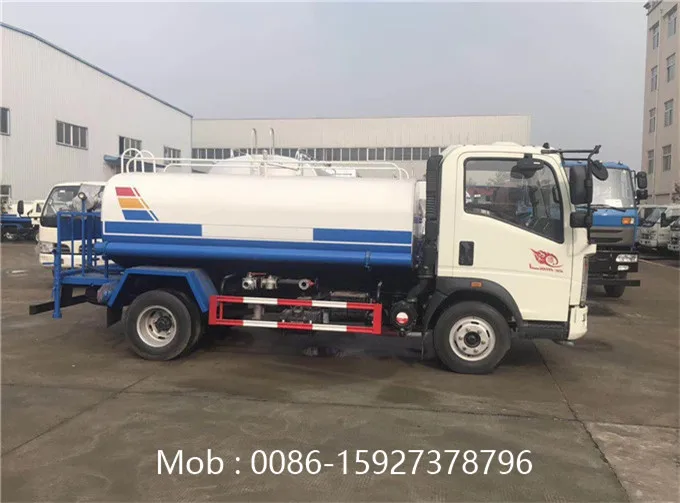

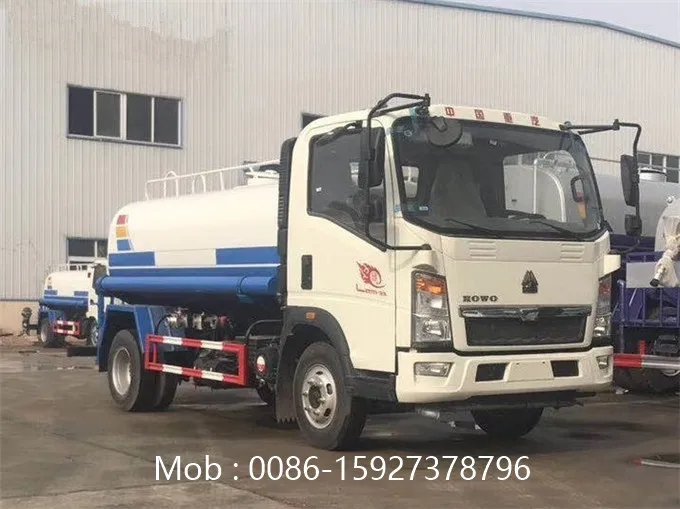

HOWO water tank truck

Overall dimensions (mm)

5950 x 2000 x 2450

Water tank volume (L)

5000

Gross Vehicle Weight (kg)

Appro × 7470

Net weight (kg)

Appro × 3470

Loading (kg)

Appro × 5000

Wheel base (mm)

3360

Max speed (Km/h)

90

Chassis Parameter

Cabin

Single row cabin, power steering, no air conditioner, 2-3 passengers,left hand drive.

Drive form

4×2

Engine

Brand : CHINA YUNNEI POWER

Model : YN4100QBZL, 110hp

Fuel type : diesel.

Displacement : 3298ml

Emission standard : Euro 3

Transmission

5 forward,1 reverse, manual operated

Tire model

7.00R16

No.of tires

6pcs,with a spare tire

Water Tanker Parameter

Characteristics

1) Stainless steel material water tank, thickness 5mm.

2) With water pump.

3) With rear working platform.

4) With suction pipe.

5) With fire connector.

6) With gravity valve.

Special performance

1) Front and rear spraying water.

2) Left and right side spraying water.

3) Platform has a sprinkler, spraying water.

4) Water column can be adjusted into mist

5) Width of spraying water : ≥14m.

6) Distance of spraying water : ≥28m.

7) Vertical suction 6-8 m.

8) Drainage time <5min, flow rate 90m3/h.

Applicable scope

1. for a variety of road cleaning

2. City green sanitation

3. Trees, green belt and lawn watering

4. High altitude building rinse
