Sinotruk Factory

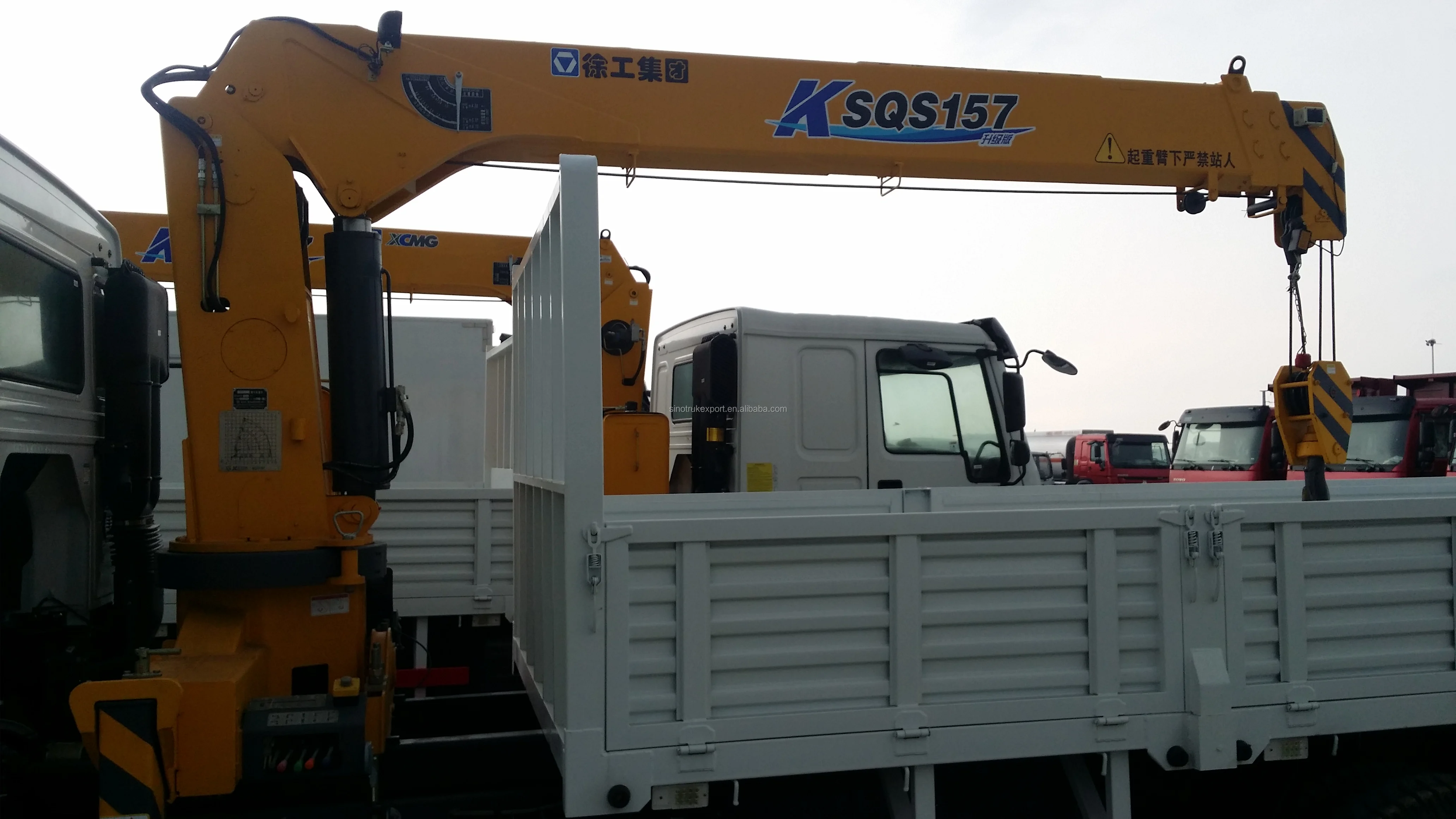

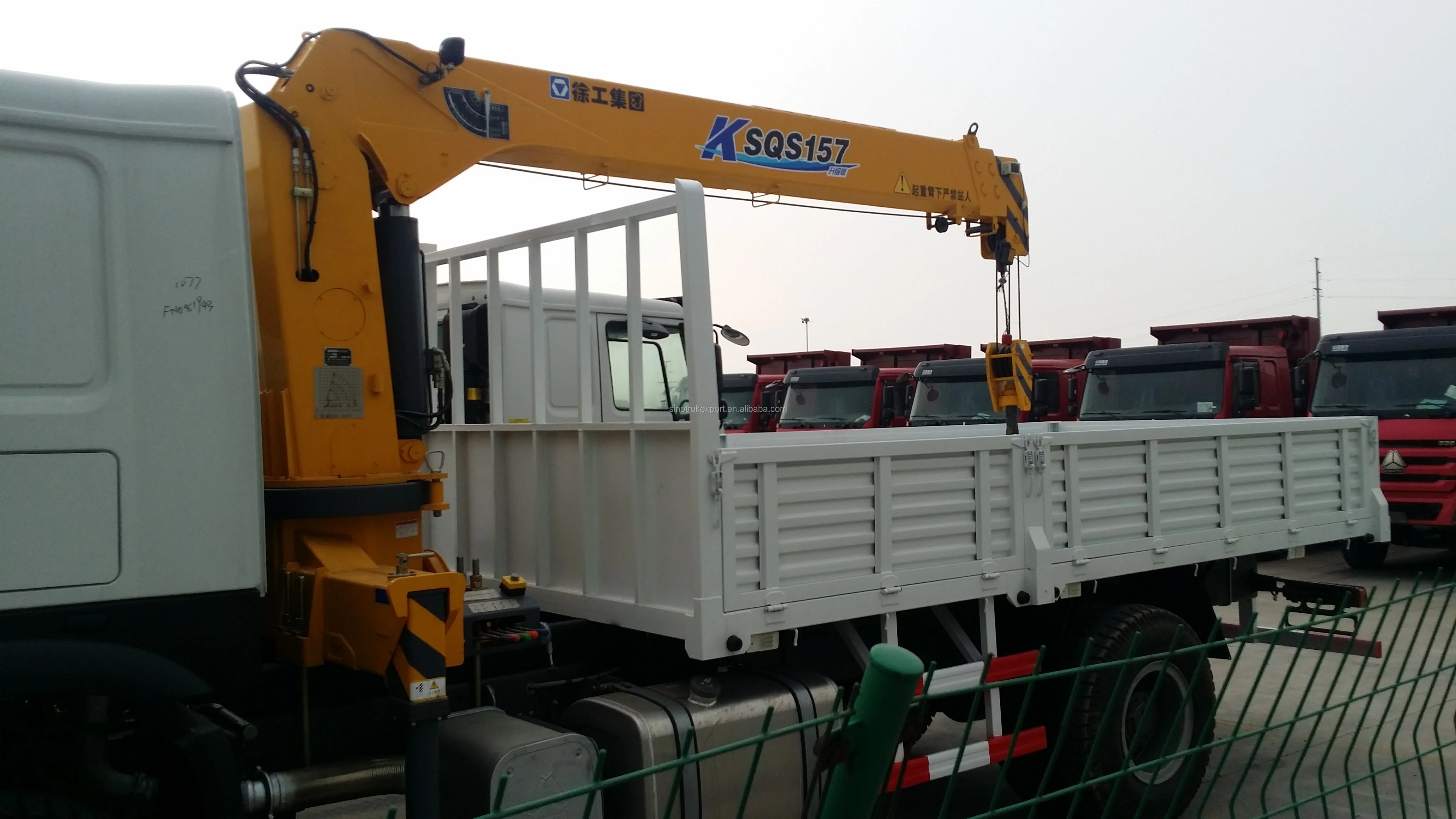

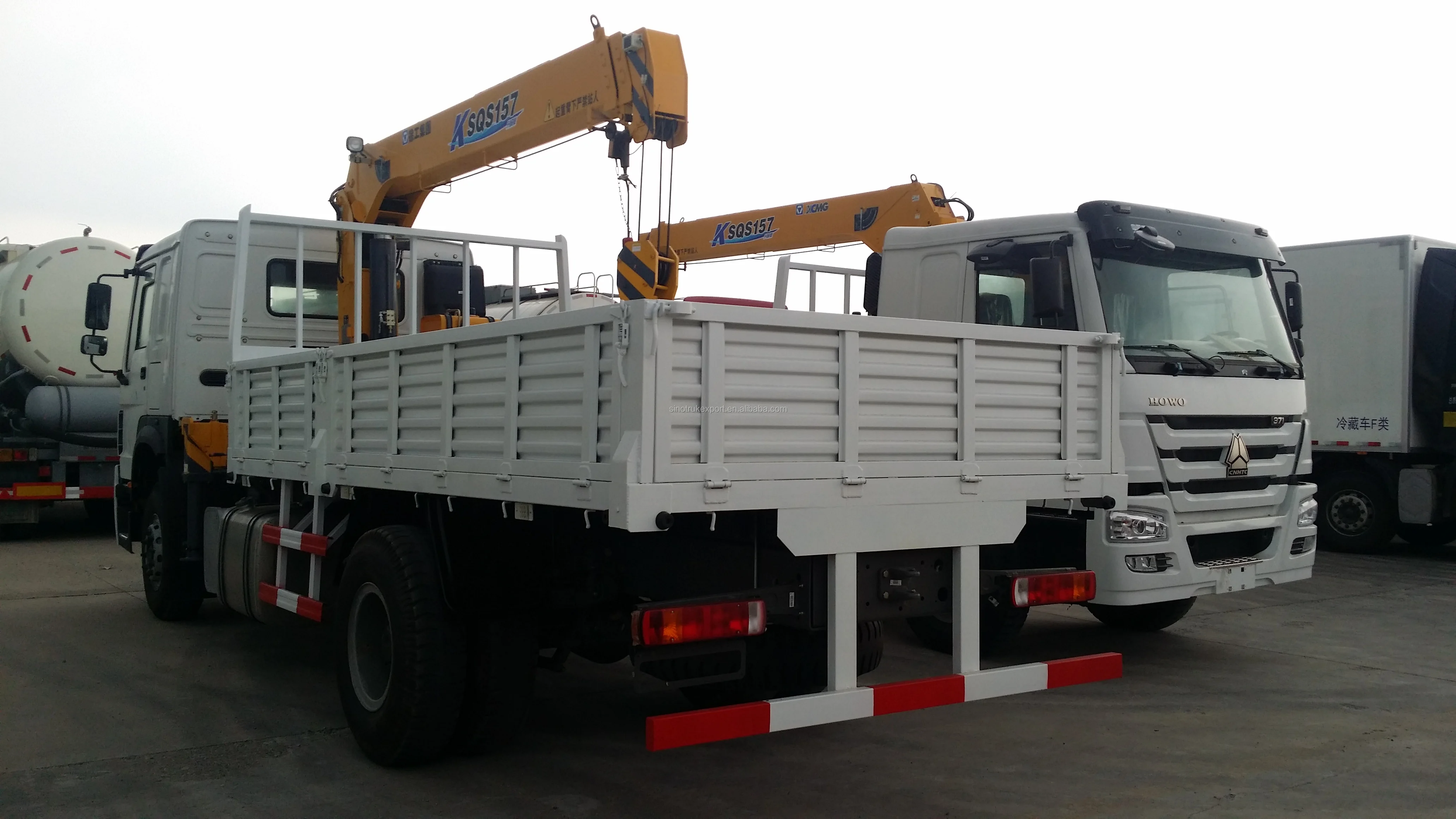

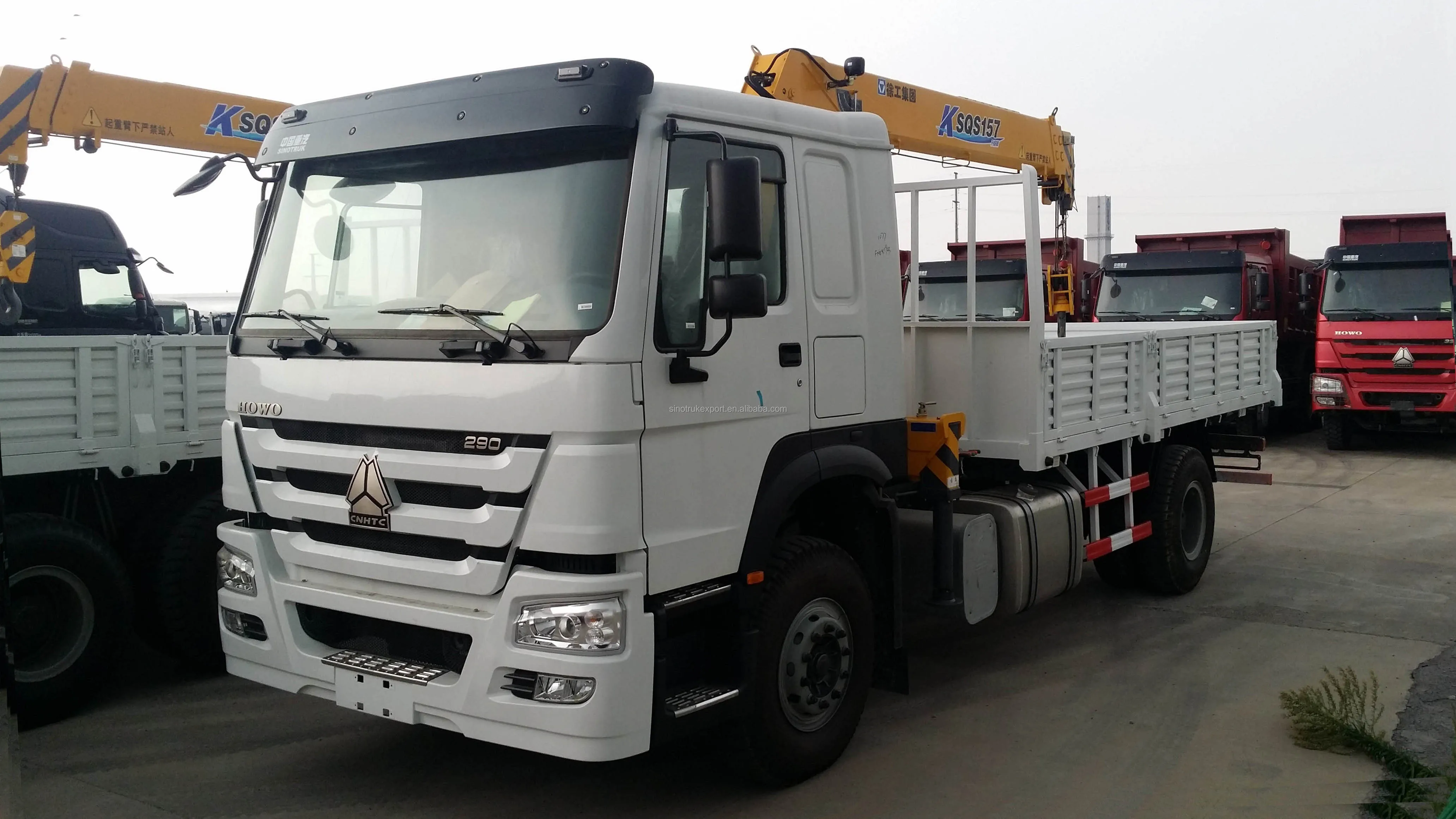

Picture of Sinotruk Howo Crane Mounted Truck
Specs for the Sinotruk Howo mini truck mounted crane with XCMG 3 ton Telescoping boom truck crane
SPECIFICATION FOR CHASSIS | |||
Dimension(Lx W xH)(unloaded)(mm) | 8445×2498×3650 | ||
Cargo body size (LxWxH) (mm) | 5450×2300×550 | ||
Approaching angle/Departure angle(°) | 17/20 | ||
Overhang(front/rear) (mm) | 1240/2505 | ||
Wheel base (mm) | 4700 | ||
Max speed(km/h) | 95 | ||
Curb weight(kg) | 7000 | ||
Engine | Fuel type | Diesel | |
Power, max(kw/rpm) | 160HP | ||
Emission | EURO2 | ||
Transmission | Model | DC6J65TC | |
Front axle | 3.6 TON | ||
Rear axle | 10.5 TON | ||
Tire | 9.00R20 | ||
Cab | 2080 | ||
SPECIFICATION FOR CRANE | |||
Max Lifting Capacity | 5000 kg | ||
Max Lifting Moment | 12.5 T.M | ||
Max Oil Flow of Hydraulic System | 32 L/min | ||
Max Pressure of Hydraulic System | 20 MPa | ||
Rotation Angle | All Rotation | ||
Max.Working radius (m) | 8.5 m |
FAQ
China National Heavy Duty Truck Group Jinan Special Automobile Co. Ltd.
Q: Are you Dealer or Factory ?
A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.
Q: What is your advantages?
A: We are the subsidiary factory of Sinotruk and we adopt the strict quality control system during the production which makes the high quality truck.
B: We are directly factory we can meet all the requirements form customers and provide a better technical support to customers.
Q: I want to transport the truck by container, is it ok?
A: Yes, it is ok .But we need take apart the truck.You should reinstall in your country.
Q:How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Q:I want to be your agent in my country , is that ok?
A:It’s ok, If your quantity is big, we will consider. For the first time 50 units is ok.
Q. How about your company's service, especially after-sale service?
A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.
Q:What is your payment terms?
A:You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.
Q:What is your leadtime?
A:Usually it is 30-50 days after deposit received.
