Кварцевые распылители высокой степени очистки Sio2 кварцевое

Sio2 sputtering targets

Purity

                 Conta Containing sio2 from 99.95%-99.9999%

Category

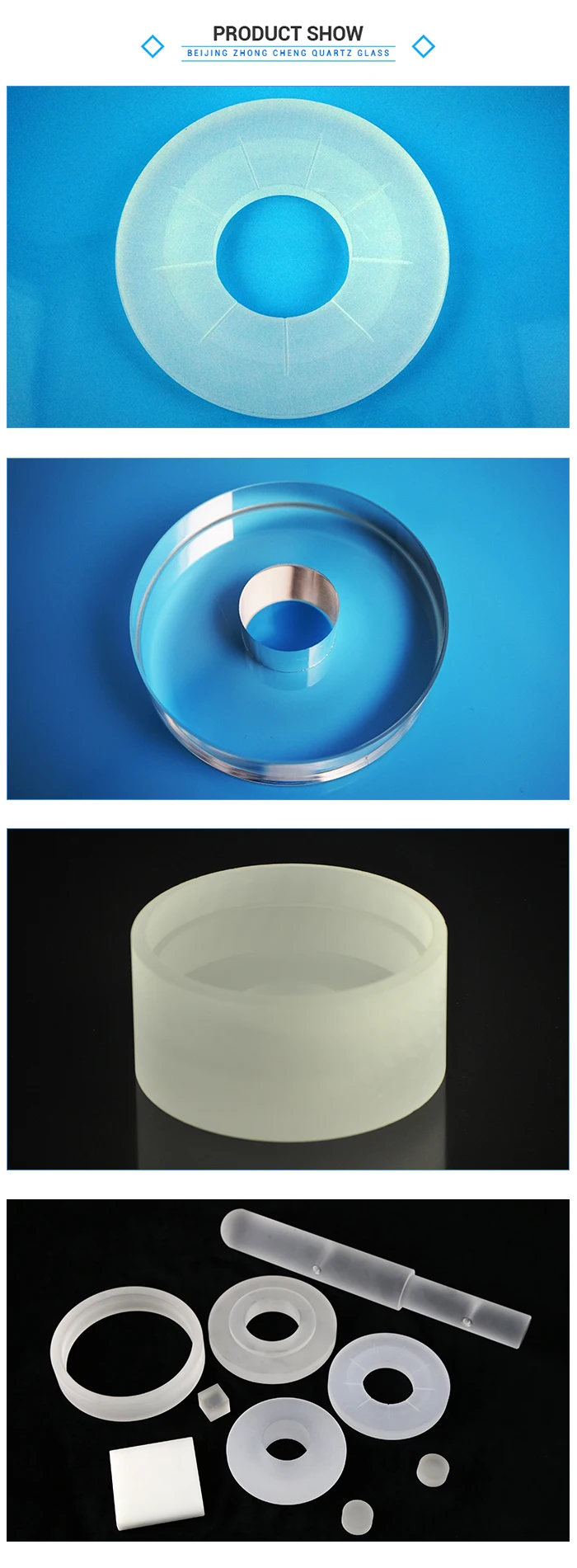

Grain, wafer, disc, panel, plate, ring, block

Characteristics

High pure; low air bubble density; low impurity content

Special features

Great categories; big dimension design can be fulfilled

Purposes

For the coating, semiconductor, optics, environment protection, new energy resource industries

NAME

UNIT ×10-4%

Al

Fe

Ca

Mg

Yi

Cu

Mn

Ni

pb

Sn

Cr

B

K

Na

Li

OH

Fused Quartz

16

0.92

1.5

0.4

1.0

0.01

0.05

<0.3

<0.3

<0.3

<0.3

0.2

1.49

1.67

<0.3

400

Synthetic Fused

Silica

0.37

0.31

0.27

0.04

0.03

0.03

0.01

<0.03

<0.03

<0.03

<0.03

0.02

0.5

0.5

<0.3

1200

Infrared Optical

Quartz

35

1.45

2.68

1.32

1.06

0.22

0.07

<0.03

<0.03

<0.03

<0.03

0.3

2.2

3

<0.3

5

Mechanical Property

Reference Value

Mechanical Property

Reference Value

Density

2.203g/cm3

Refractive Index

1.45845

Compressive Strength

>1100Mpa

Coefficient of thermal expansion

5.5×10^-7cm/cm.°C

Bending Strength

67Mpa

Hot work temperature

1750~2050°C

Tensile Strength

48.3Mpa

The temperature for a short time

1300°C

Poisson's Ratio

0.14~0.17

The temperature for a long time

1100°C

Elastic Modulus

71700Mpa

Resistivity

7×107Ω.cm

Shearing Modulus

31000Mpa

Dielectric Strength

250~400Kv/cm

Moths Hardness

5.3~6.5

(Moths Scale)

Dielectric Constant

3.7~3.9

Deformation Point

1280°C

Dielectric absorption coefficient

4×10⁴

Specific Heat(20~350°C)

670J/kg °C

Dielectric loss coefficient

1×10⁴

Thermal Conductivity(20°C)

1.4W/m °C

Typical Mechanical Property of Fused Quartz
