Product Description

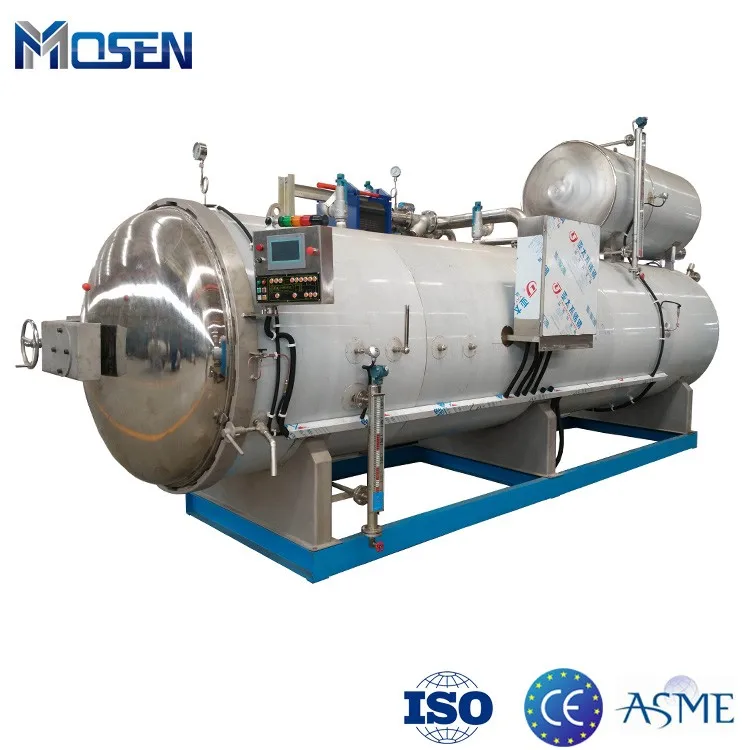

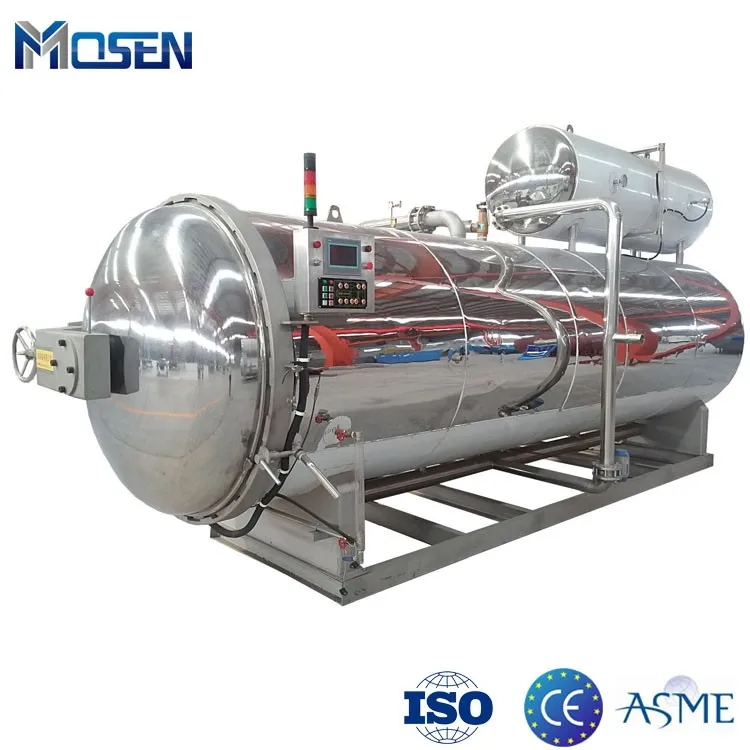

Tin Can Olive Autoclave Retort

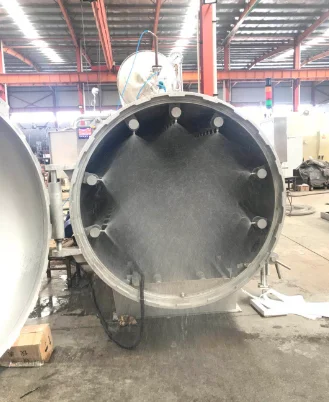

Water Spray Tin Can Olive Autoclave Retort is mainly composed of the horizontal body, the heat exchanger, the circulating water pump, the pipeline and various valves, as well as the automatic control system. It is divided into top pouring type, side spray type and full spray type. In this way, the hot water is sprayed out of the spray nozzle and pipe to the surface of the food. No dead angle.
Product Application

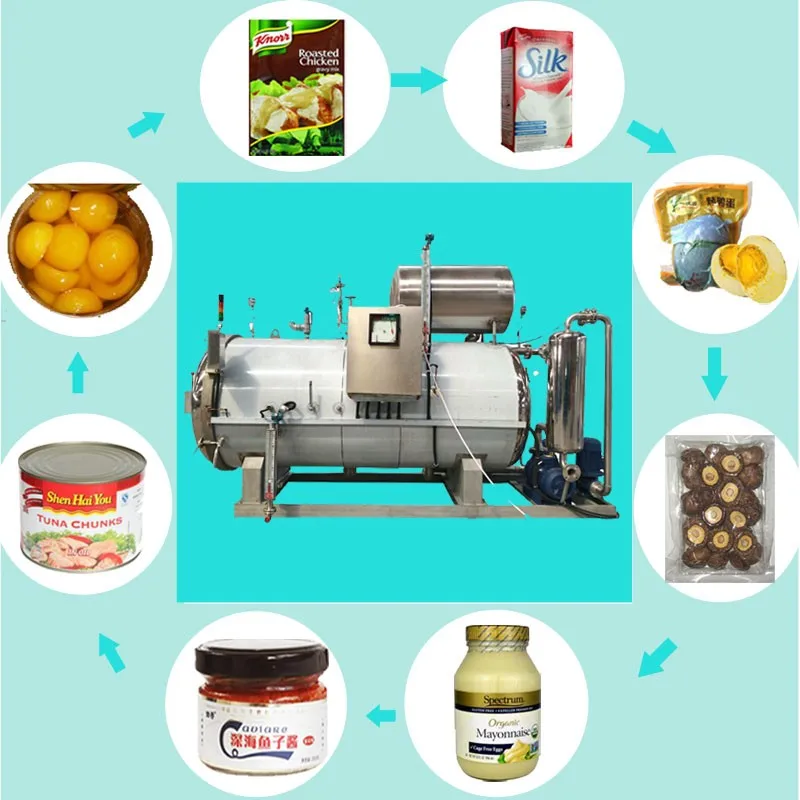

For high temperature sterilization of fruits, vegetables, meat, fish, convenience foods, etc.
Packaging Container: PP bottles, HDPE bottles
Glass Container: glass jar, glass can
Metal Containers: tin cans
Aluminum cans plastic containers
Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, cooking bag and so on
Scientific experiments show that the best sterilization temperature of the tide type brine food is 121 DEG, the best sterilization time is 12min, which can not only ensure the good sterilization effect, but also keep the flavor of the brine.
Mainly applicable to canned food (such as meat, fish, eggs, vegetables etc.), protein beverage (milk, soy milk, coconut milk, peanut milk, walnut milk, almond milk etc.), hard cans (tin cans, glass bottles, cans etc.) and various kinds of soft packaged food.
Model NO. | Diameter | Length | Capacity | Thickness | Design Temp | Design Pres |
PLJ.09-1.8 B.4 | 900mm | 1800mm | 1.14m³ | 4mm | 121C | 0.35MPa |
PLJ.10-2. B.4 | 1000mm | 2000mm | 1.57m³ | 4mm | 121C | 0.35MPa |
PLJ.12-2.2 B.4 | 1200mm | 2200mm | 2.48m³ | 5mm | 121C | 0.35MPa |
PLJ.14-3 B.4 | 1400mm | 3000mm | 4.61m³ | 5mm | 121C | 0.35MPa |
Main Features
1. Uniform temperature distribution:In the process of heating and sterilization, the water is continuously sprayed from nozzles adopted high speed spraying, so that the temperature in the pot is kept stable and the sterilization effect is improved.
2. Direct heating and indirect cooling, and prevent the second pollution. Sterilizing and cooling processes use the same water. Circulating water is directly heated by steam diffusion tube in the heating process. Under 0.5MPapressure, it only takes 6-12min to rise the temperature from 20 DEG to 121 DEG. Continuous cooling by heating exchanger is isolated from the products, preventing the second pollution in the cooling effectively.
3. Full-automatic control system:

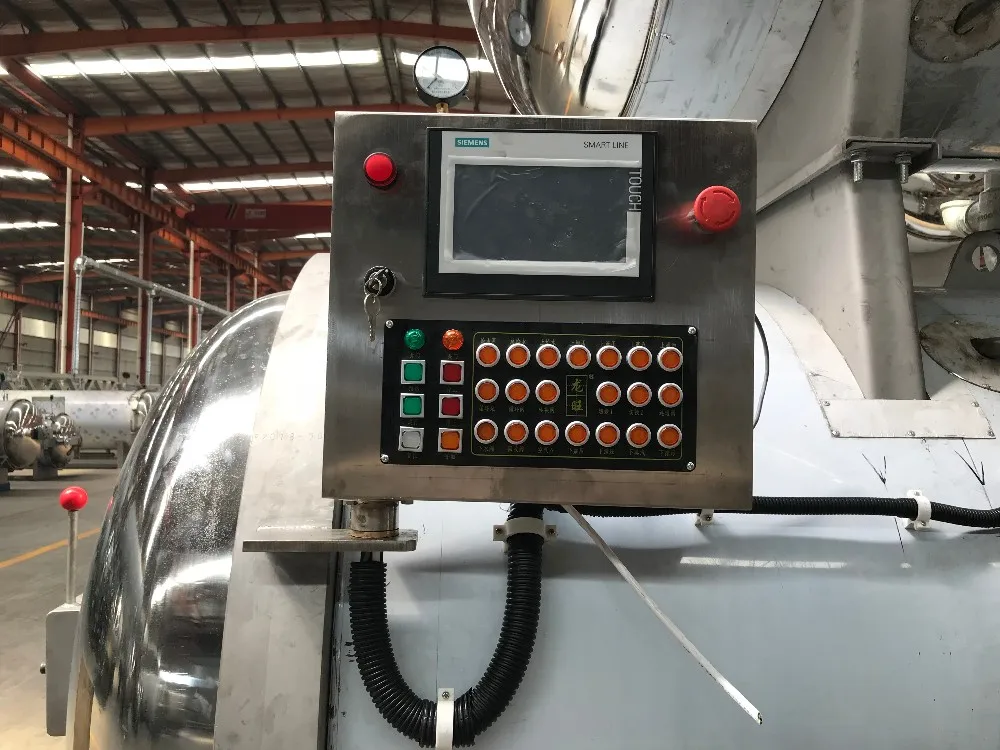

a. Siemens Touch Screen
b. No-paper recorder
c. Imported Automatic Valves
d. Many sterilization techniques in memory for your choice. At most could save 250sterilization formula.
4. Pressure control system independently, suitable for gas packaging sterilization: Pressure control
error is within 0.005Mpa. Pressure control system can correct and balance the pressure inside of the pot and packing automatically, not damaging the packing or the contents.
Water spray autoclave/retort/sterilization pot
Model No.\tOutside Measurement(mm)\tInner Diameter(mm)\tVessel Length(mm)\tCapacity(m³)\tThickness of Autoclave(m)\tMax Working PRE.(Mpa)\tMax Working TEP.(℃)
5. Heating and cooling in stages can reduce the temperature difference between the surface and the center of the food in protection of fragile food and glass bottles.
Certifications
Detailed Images
Machine Parts
Name: Clinder
Brand: MOSEN
Original: China

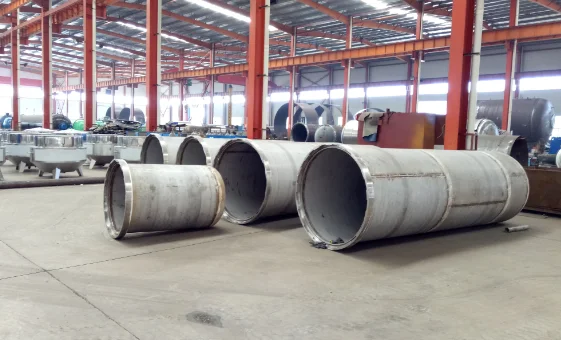

Retort cylinder is main part of the whole retort machine. We do it by using SUS304 material to gurantee the retort quality and food quality after sterilization.
Main Features

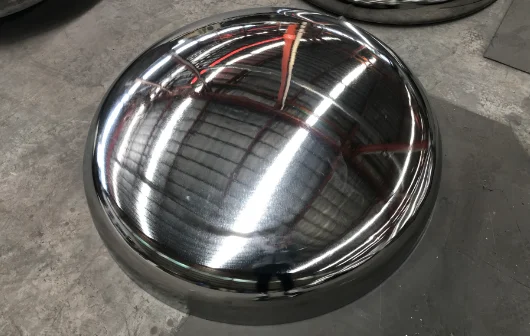

Name: Autoclave dish
Brand: MOSEN
Original: China
Retort dish is main part of retort door, it also made of SUS304, this retort dish is specially designed for food sterilization and for retort good sealing with good performance.
Machine Parts
Name: Flange
Brand: MSOEN
Original: China
SUS304 flange connects the retort dish to retort cylinder to complete the whole retort machine. We use domestic famous brand.
Main Features
Name: Autoclave Saddle
Brand: MOSEN
Original: China

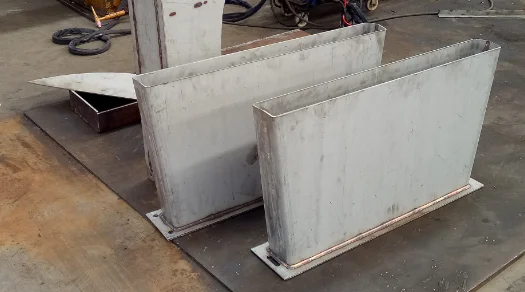

Retort saddle is used for supporting the whole retort equipment. We design them with SUS304 material to guarantee its quality.
RETORT CONTROL PARTS

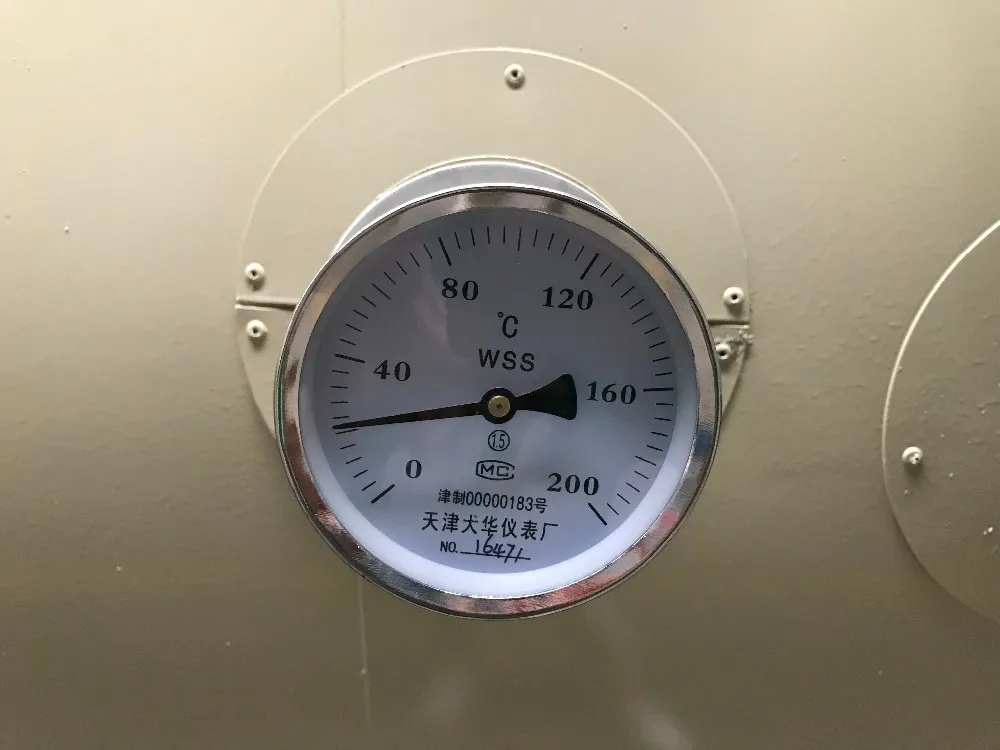

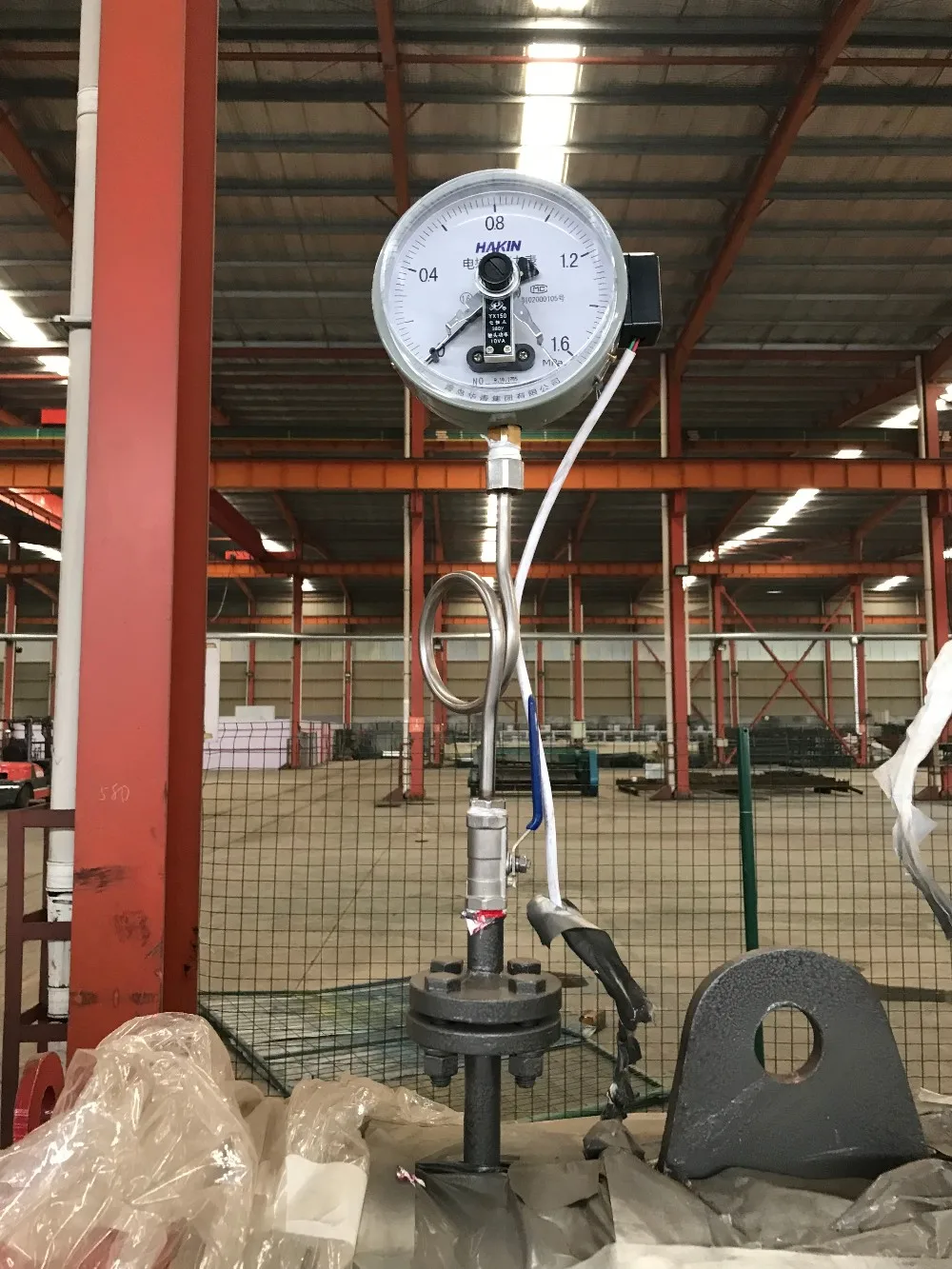

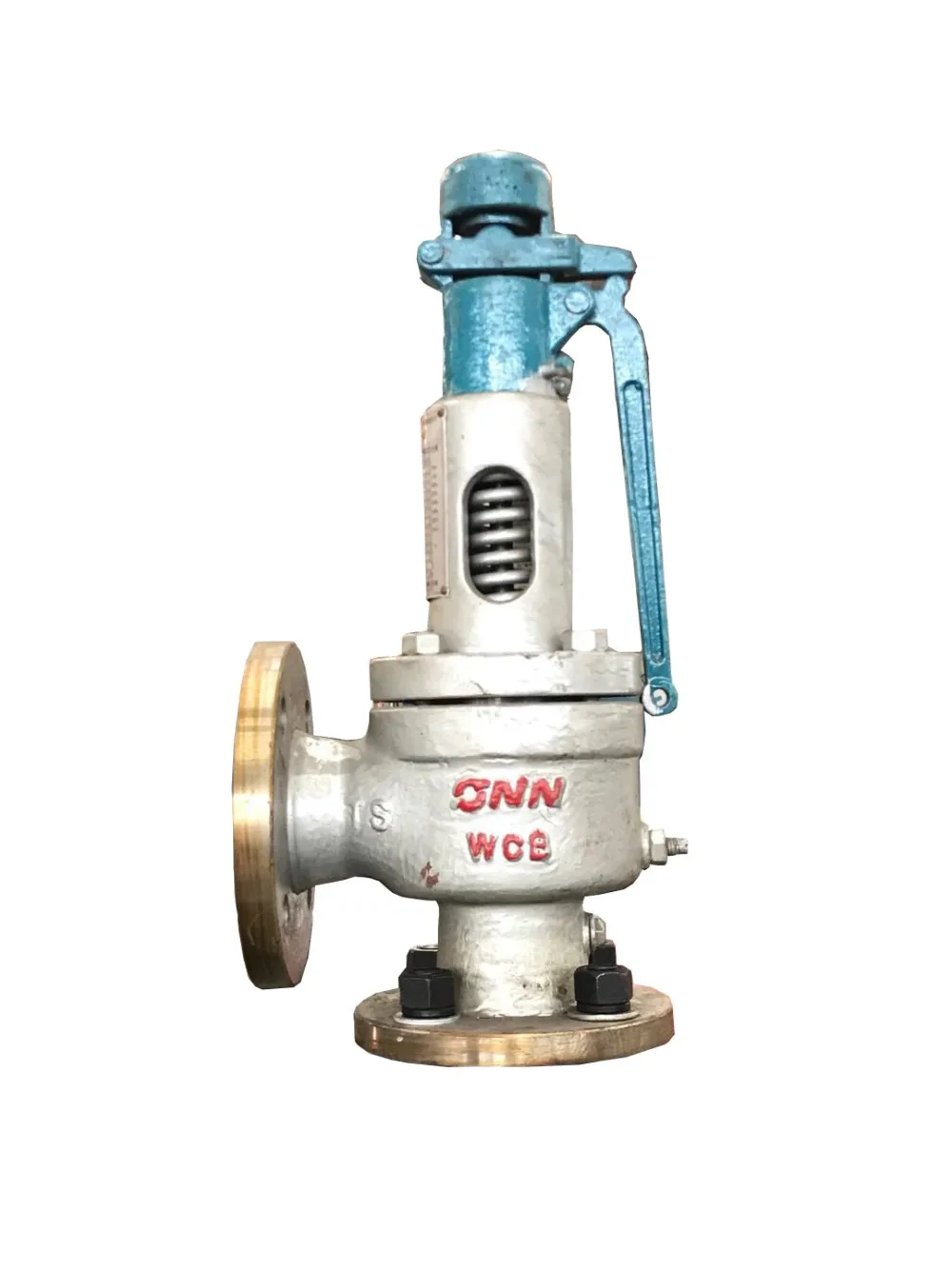

PLC BOX SAFETY VALVE TEMPERATURE METER PRESSURE METER
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Visiting customers
If you want to know more about our products, welcome to our company for detailed information. Here we have professional engineers and technicians to instruct you.

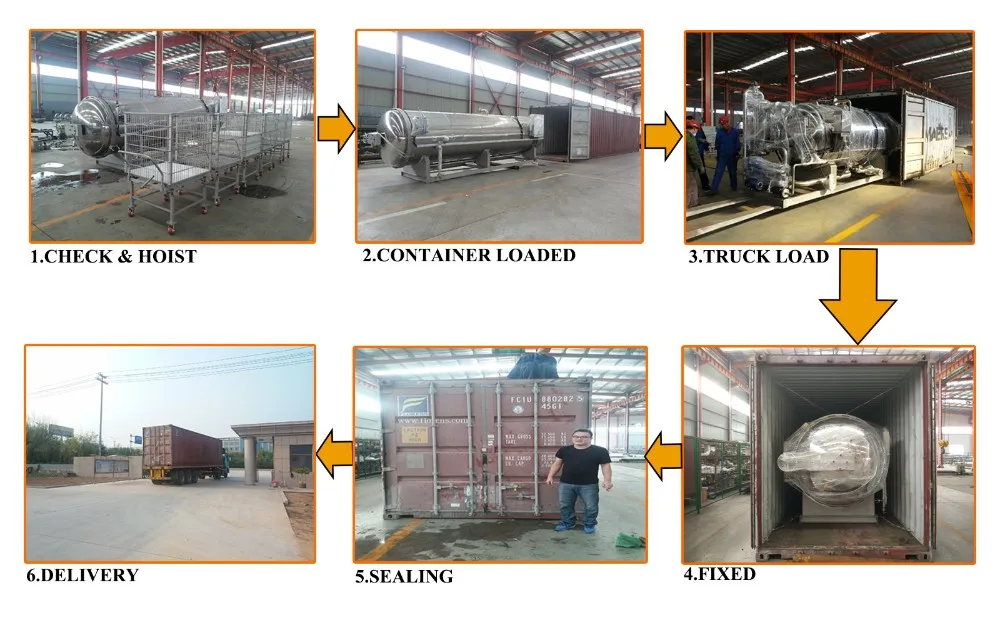

Packing & Delivery
Delivery
We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.
Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.
When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Our Company
Shandong Zhongtaitongze Machinery Co.,Ltd is established in 2004. It is a national D1, D2 pressure vessel manufacturer integrating design, manufacturing, research and development in northern China. The company's food sterilization machine, jacket cooker, etc. Steam cooking equipment related products and composite autoclave, rubber vulcanization autoclave, have passed ASME & CE qualification certification and the products have a wide range of customers worldwide. The company's equipment production adopts advanced automatic welding, testing, and installation equipment, and has a production and R&D team of more than 200 people, ensuring that every product in the factory meets the national pressure vessel production standards. The Group is committed to the development of food retort pots, sandwich pots, vulcanized retreading equipment for rubber products, high temperature and high pressure production equipment for composite materials, carbon fiber equipment for aerospace, etc.

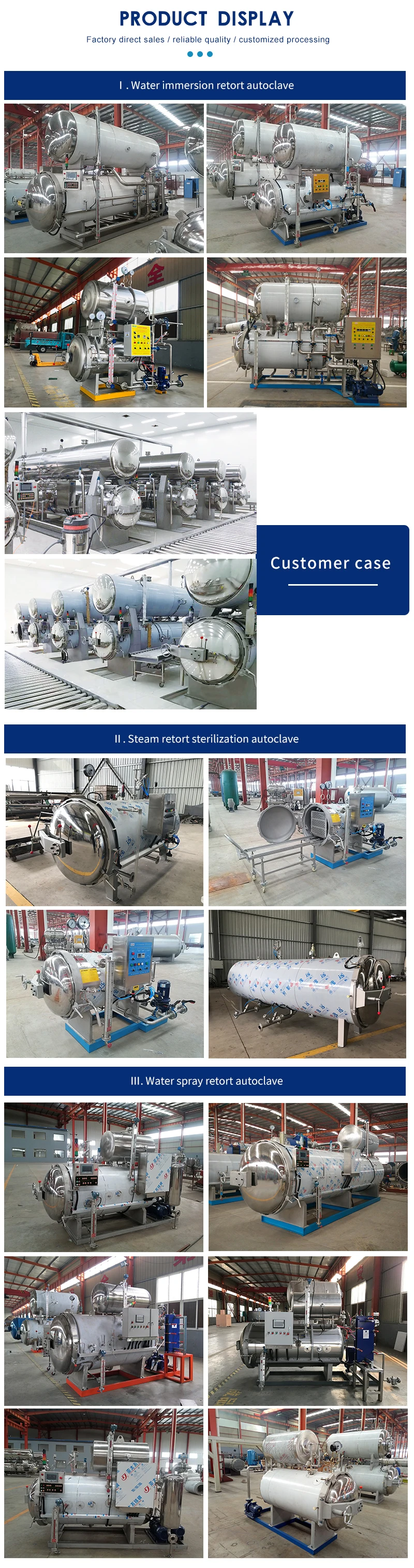

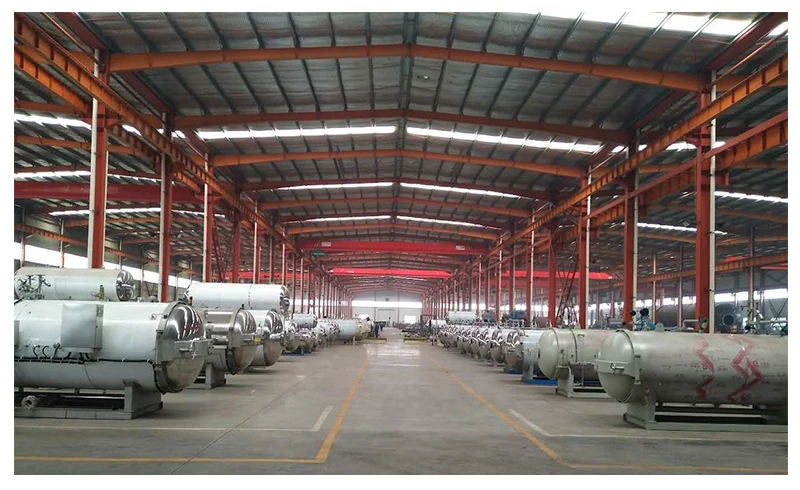

Product display
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer.
Q: Where is your factory located?
A: Our factory is located in Zhucheng, Shandong, China. From Qingdao where closes to us 1.5 hours to Beijing, 1.75 hours to Shanghai, 4.5 hours to Guangzhou by air.
Q: What is your business scope?
A: There are three categories, such as food sterilization machine, jacket cooker, rubber vulcanization autoclave.
Q: How could we confirm the details of the products?
A: We will provide all the drawings for you to confirm or you can come here to conduct investigation.
Q: Will you charge us for drafting if we have special requests?
A: No, we will not. Free of charge to make a draft or offer.
Q: How long the warranty will be?
A: 1 Year warranty.
Q: How about the installation? And what if the machine goes down?
A: We will do that. There are two options.
a. We could appoint our engineer to your company to debug and repair, as for the cost of this trip such as ticket, visa, accommodation and labor cost shall be on your side.
b. On-line service will be provided. If still is under guarantee period, the necessary accessories and parts will be provided free, but the transportation cost of it shall be on your side.
Q: Do you take L/C?
A: Yes, we accept L/C, T/T and irrevocable L/C payable.
Q: Can we become your distributor in our country?
A: Yes, welcome you! More details will be discussed if you are interested in being our agent.
