Technical Parameters
Ce certificate international standard high capacity full automatic antibacterial wet wipes folding and packing machine
| Working voltage | 380V/50HZ |
| Power | 20KW |
| Speed | 300-500pcs/min |
| Raw material roll width | 320-450mm |
| Unfolded size(mm) | (140-200)×(150-200)(L×W) |
| Folded size(mm) | (70-100)×(35-100)(L×W) |
| Packing film | PE & PET, OPP & PE(aluminum film) |
| Packing size(mm) | ≤280mm width |
| Folding type | ”Z”,”W” "C" |
| Weight | 3000kg |
| Dimension (mm) | 5000×1300×2000(L×W×H) |
Product Description
Ce certificate international standard high capacity full automatic antibacterial wet wipes folding and packing machine
Mian features:
1. Unwinding the spunlace material by transduser, tension control automatically.
2. Spunlace material cutting device,the cylinder separate the cutting blade.
3. Two labeling device.
4. Cutting a hole on the film by the machine automatically
5. The circumgyrated form sealing device.
6. Electromotion differential gear,adjusting phase without stopping the machine.
7. The relatived postion of the punching hole,
8. Labeling, and the eyemark are enactmented in the PLC.
9. The main electric brand adopts famous brand SIMENCE.
10. Main machine is frame form.
11. Raw material specification
12. Packing film, width ≤240 Diameter ≤400
13. Spunlace ,Width=320,Diameter ≤1200
14. Label: Width≤60 Diameter ≤300

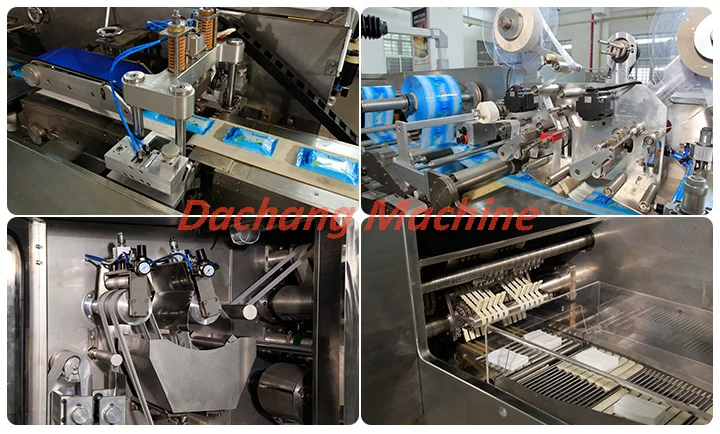

Machine views
Certifications
Factory views
Trade Shows
Contact information :
Mr.William Chou
Quanzhou Dachang Paper Machinery Manufacturer Co.Ltd.
Tel:+86-595-22465662 Fax: +86-595-22465663
WhatsApp/Wechat/Tel: + +86-186-5905-0717
Website: www.qzdachang.cn
Skype:williamchou0102
Add: No.2 JiangNan Hi-tech Industrial Park,Licheng District,Quanzhou,Fujian,China(362000)
