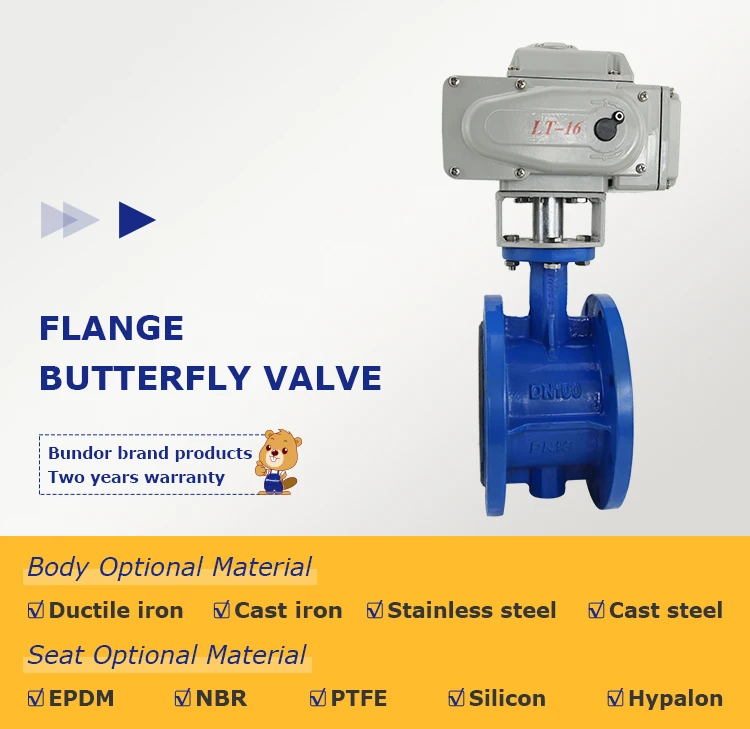

Фланцевый электрический клапан-бабочка Bundor 4 дюйма класс 150 6 дюймов для
- Категории: Butterfly Valves >>>
- Поставщик: Henan,Bundor,Flow,Control,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator |
Material | CI/DI | EPDM | DI | SS410 | Electric |
DN | NPS | A | B | C | L |
DN50 | 2" | 69.5 | 126.5 | 32 | 108 |
DN65 | 2 1/2" | 72 | 136 | 32 | 112 |
DN80 | 3" | 88 | 146 | 32 | 114 |
DN100 | 4" | 96.5 | 158 | 32 | 127 |
DN125 | 5" | 115 | 179 | 32 | 140 |
DN150 | 6" | 126 | 197 | 32 | 140 |
DN200 | 8" | 161 | 230 | 45 | 152 |
DN250 | 10" | 199 | 271 | 45 | 165 |
DN300 | 12" | 215 | 305 | 45 | 178 |
DN350 | 14" | 261 | 350 | 45 | 190 |
DN400 | 16" | 290 | 381 | 51 | 216 |
DN450 | 18" | 307 | 392 | 51 | 222 |
DN500 | 20" | 340 | 441 | 57 | 229 |
DN600 | 24" | 396 | 500 | 70 | 267 |
DN700 | 28" | 496 | 567 | 66 | 292 |
DN800 | 32" | 543 | 641 | 66 | 318 |
DN900 | 36" | 584 | 692 | 118 | 330 |
DN1000 | 40" | 638 | 735 | 142 | 410 |
DN1200 | 44" | 763 | 917 | 150 | 470 |
Related Products
Company Profile
FAQ
Q:When the products will be shipped ?
A:With in 7~25 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be provided for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 27 years experience in valve research and production .
A:With in 7~25 days after receiving the prepayment.
Q:Do you have OEM service ?
A:Yes . A variety of products size , quality and quantity can be cutomized according to your needs.
Q:Could you offer a free sample ?
A:Yes , samples can be provided for free.
Q:How can I pay for the products ?
A: We accept a variety of payment methods. Such as T/T , L/C,D/P ,Western Union , Paypal ,Trade Assurance.
Q: How do you deal with that if there are some quality problems in products?
A: We will be responsible for all the quality problems.
Q:Are you a facrory or trade company ?
A: We are a factory with 27 years experience in valve research and production .
