Автоматическая Роботизированная сварочная система мотор-Фидер для проволоки Tig 220 В переменного
- Категории: Other Welding & Soldering Supplies >>>
- Поставщик: Guangzhou,Huiyun,Science,&,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

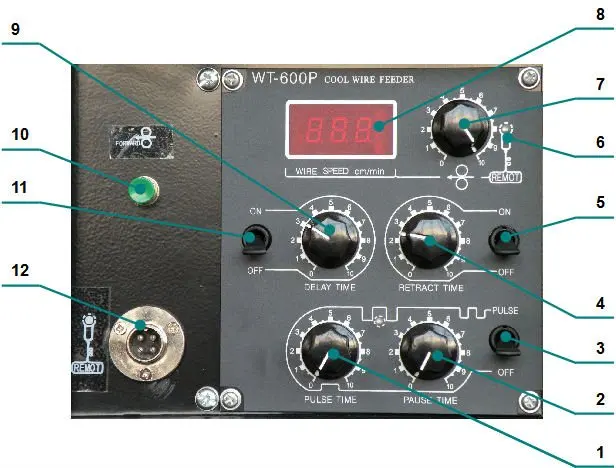

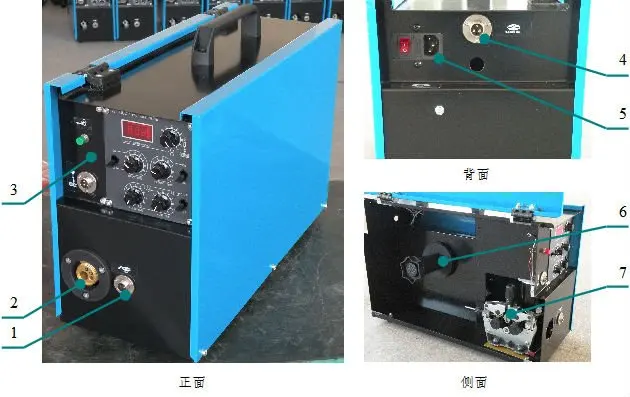

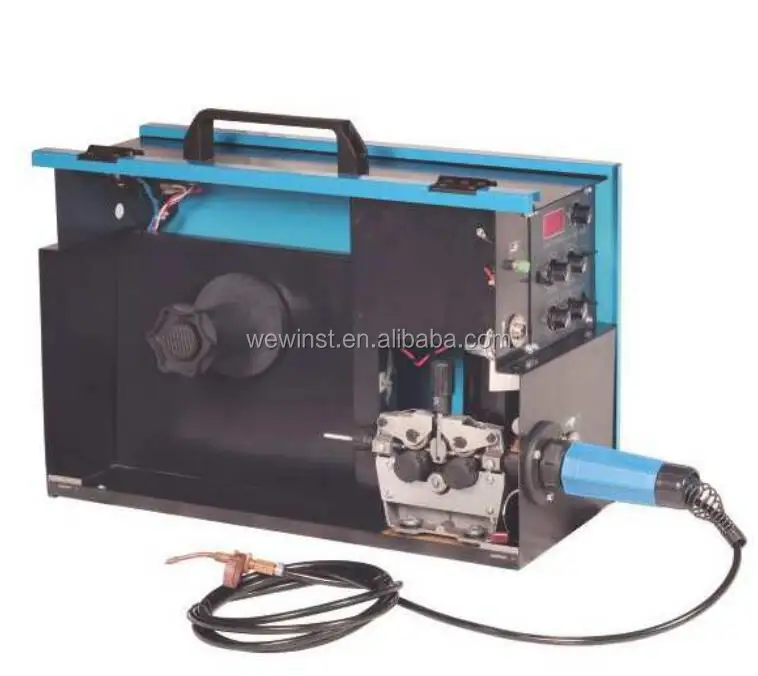

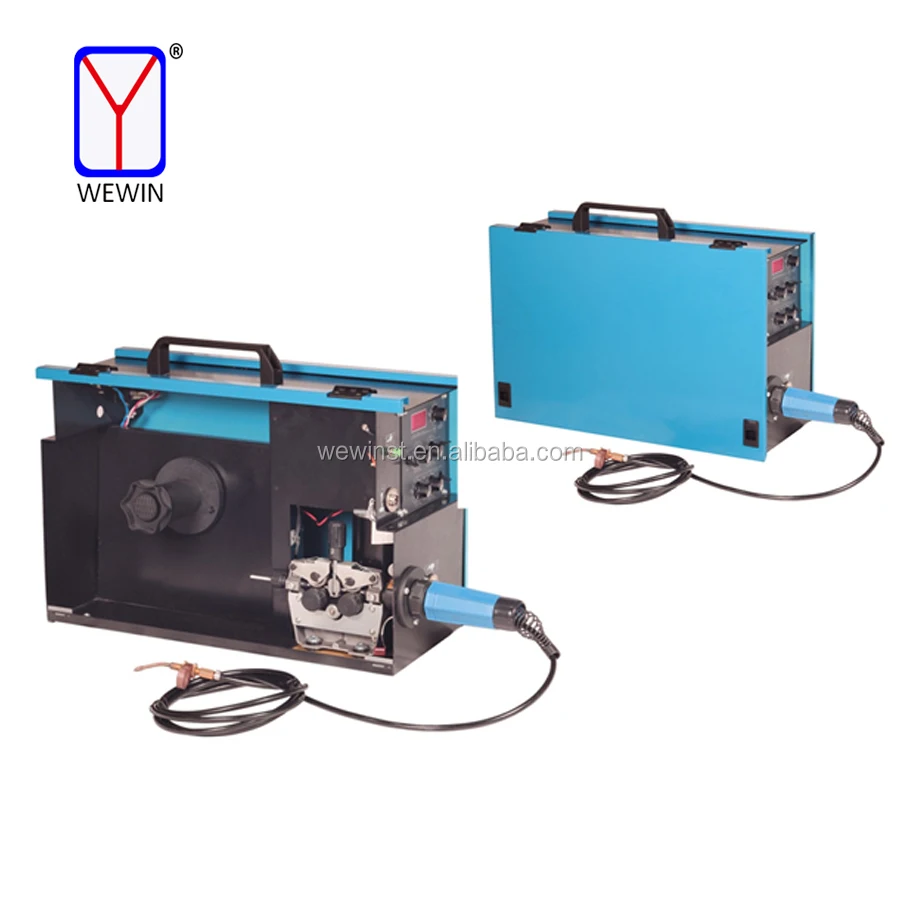

[Product Name ]:TIG/COOL WIRE FEEDER
[Product Model]:WT-600P
Parameter
| No. | Item | Parameter |
| 1 | Voltage | AC 220V |
| 2 | Frequency | 50/60Hz |
| 3 | Phase | Single-phase |
| 4 | Size | 315*250*525 mm |
| 5 | Weight | 18kg |
| 6 | Motor Type | DC Permanent Magnet |
| 7 | Wire Roll Diameter | 300mm |
| 8 | Wire Diameter | 0.6,0.8,1.0,1.2,1.6,2.0(mm) |
| 9 | Wire feeder speed range | 0 to 600 cm/min |
| 10 | Pulse on time | 0 to 5 seconds |
| 11 | Pusle off time | 0 to 5 seconds |
| 12 | Pregas valve open time | 0 to 5 seconds |
| 13 | Wire retract time | 0 to 5 seconds |
Product Specialty
(1) Digtal closed control makes the wire feed speed steably.
(2) Wire feed speed is displaied by digital and the feeder speed can be pre-set.
(3) With remote controller connector,by the connector you can adjust the speed.
(4) If the welding machine has synchronous signal output,the feeder system can be connected with TIG welding machine and it is easy to connect with welding PLC controller.
(5)The wire feed speed can be adjustable continuous.It can be used at any welding process requirements.
(6) With feed and pull back wire function,and the wire spool is easy to exchange.
(7) At the end of the welding process it will avoid the wire sticky.
(8) It can be feed the wire after gas valve open,and the delay time can be preset.
(9) Continuous wire feed function.
(10) It can be used in manual welding, automatic welding or robot welding system.

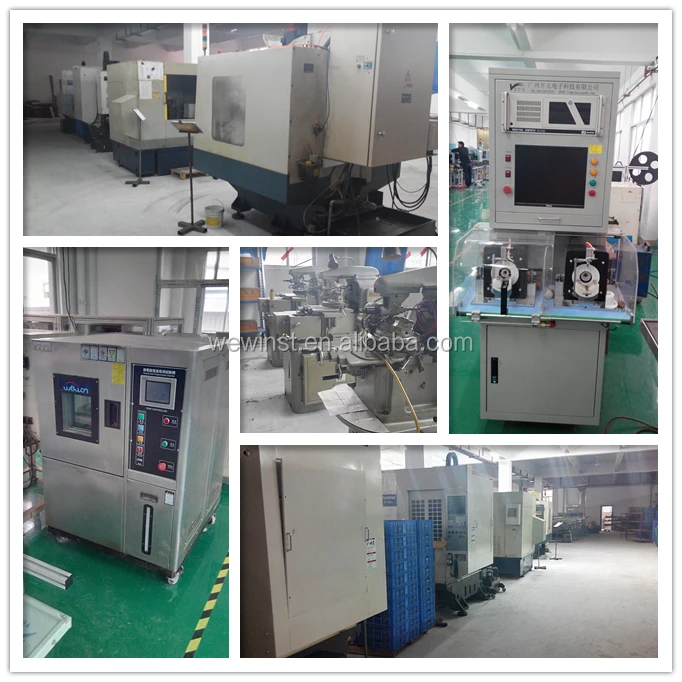

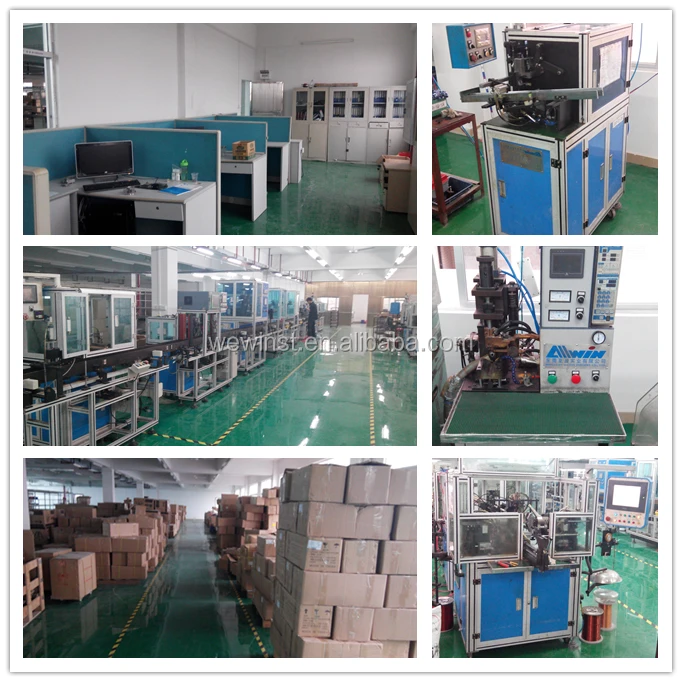

Production line
The 19th Beijing ESSEN Welding and Cutting Fair

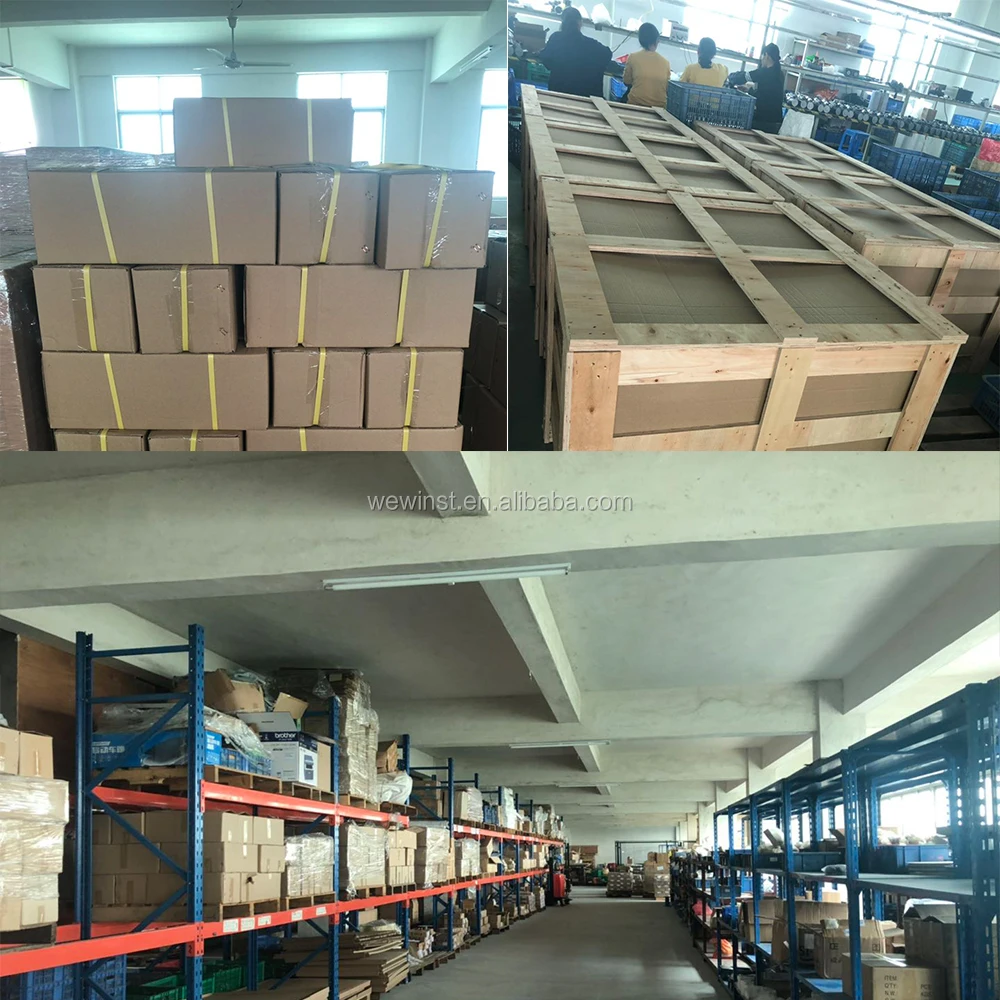

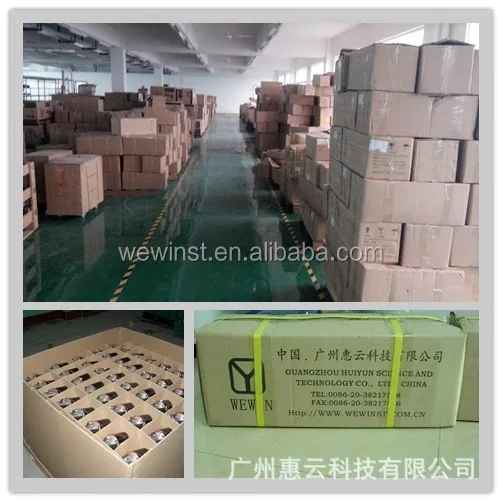

Packing&Shipping
Certificate
FAQ
Q: Are you trading company or manufacturer ?
A: We are Integration of industry and trade, with over 20 years experience in DC worm gear motor. Our company have accumulated skilled production line, complete management and powerful research support, which could match all of the customers' requirements and make them satisfaction.
Q: What is your main product?
-DC Motor: Gear motor, Square motor, Stepped motor, and Micro motor
-Welding equipment: Wire feeder, Welding rod, Welding Torch, Earth clamp, Electrode holder, and Rectifier
-Car restyle: Electric step
-Safety and security products: Welding helmet, Welding goggle, Welding clothes, Welding gloves, Safety helmet
-Motors parts: Gears, Bearings, Connectors, Shafts
-Other kinds of Motors: Fans, Pumps
-Motors parts: Gears, Bearings, Connectors, Shafts
-Other kinds of Motors: Fans, Pumps
Q: What if I don't know which DC motor I need?
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q: How to delivery:
A: By sea - Buyer appoint forwarder, or our sales team find suitable forwarder for buyers.
By air - Buyer offer collect express account, or our sales team find suitable express for buyers. (Mostly for sample)
Others - Actually,samples send by DHL,UPS, TNT and Fedex etc. We arrange to delivery goods to some place from China appointed by buyers.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
