Мини формирователь машина цена B635
- Категории: Рубанок и долбежные станки >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Mini shaper machine price B635 metal shaper machine
Products Description
Details Images
Product Paramenters
Product main technical specifications:
Specifications | Units | B635 |
Maximum shaping length | mm | 350 |
Maximum distance from ram bottom to table surface | mm | 330 |
Maximum moving distance of the working table(level) | mm | 400 |
Maximum moving distance of the working table (vertical) | mm | 270 |
Since the plane bed leading surface extending the maximum distance | mm | 550 |
Maximum ram travel | mm | 170 |
Table rotary angle (without vice) | ±90° | |
Table rotary angle (with vice) | ±55° | |
Maximum tool carrier travel | mm | 110 |
Number of ram reciprocating per minute | No./min | 32, 50, 80, 125, |
Gear move one tooth (vertical) | mm | 0.18 |
Gear move one tooth (level) | mm | 0.21 |
Gear move four tooth (vertical) | mm | 0.73 |
Gear move four tooth (level) | mm | 0.84 |
Main motor power | KW r/min | 1.5 1400 |

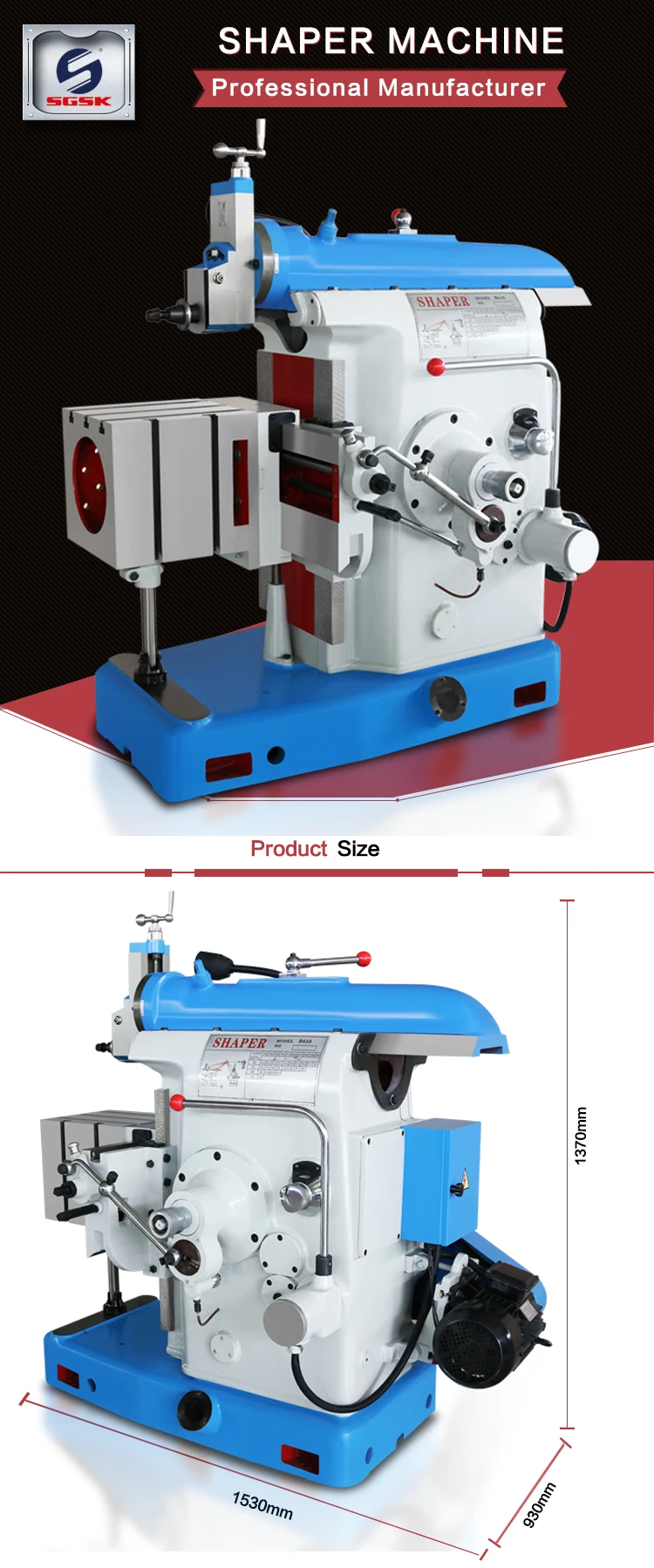

Overall dimensions (L*W*H) | mm | 1530*930*1370 |
N/G.W | kg | 1000/1200 |
Company Profile
Certifications
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
