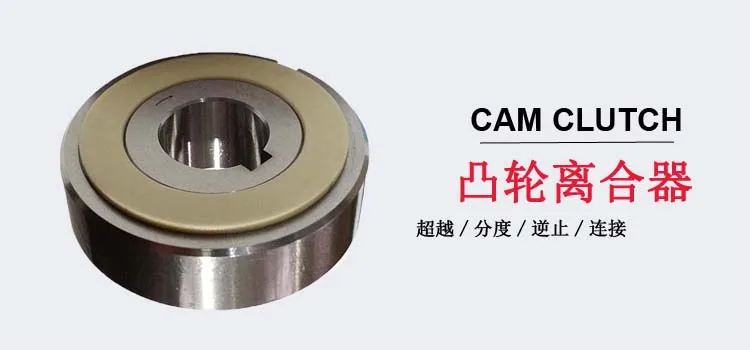

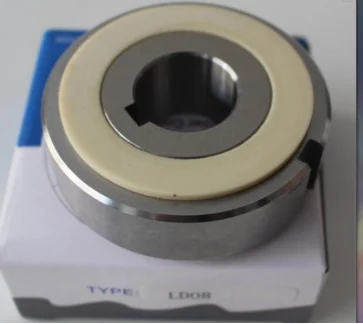

LD05 Sprag тип подшипник Freewheel сцепления один способ

Technical Datas

 .

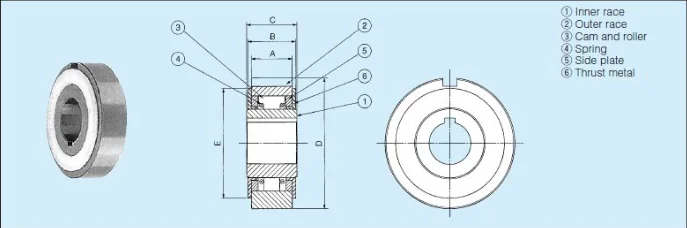

 Dimensions and Capacities

Notes:

1. T max = 2 × T KN

2. Inner race overruns

3. Outer race overruns
     Keyway to DIN 6885.1

Mounting

1. LD Series Cam Clutch is prelubricated with special grease and are ready for use.

No additional lubricant is required.
2. When installing the clutch on the shaft, press the clutch inner race slightly with a soft hammer to prevent

the clutchOuter race from slipping away from the inner race.

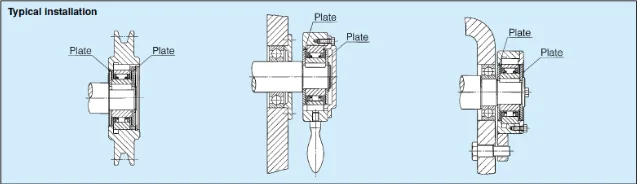

3. Be sure to attach the plate. This prevents the outer race from slipping away from the inner race. See

recommended Dimensions of the plate listed below.

4. For lubrication, coat the plate and thrust metal with grease.
5. Never apply thrust loads to the clutch. Other devices should be provided to take up thrust loads applied

to the clutch.
6. Key should be in accordance with JIS B1301-1959.
7. The bores of the pulley, sprocket, etc., should have a tolerance of H6 or H7.

Q: Why do we choose your company?

A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.

Q: What is the delivery time?

A: For small quality or samll size of clutches, we can deliver upon receiving advance.

     For large quantity or large size, we have to produce 10-15 working days.

Q: Can you supply with sample clutch?

     Of course! We can provide with a sample to your checking quality.

Q: What is the warranty period of the clutches?

     One-year Guarantee.
